Mori Seiki MV-80B Vertical Machining Center
Specifications
| Model | MV-80B |
| Brand | MORI SEIKI |
| Type | Vertical Machining Centers |
| Control | CNC (Fanuc 11M) |
| X | 80 inch |
| Y | 30 inch |
| Z | 17 inch |
| RPM | 4000 RPM |
| ATC | 40 |
| TableW | 32 inch |
| TableL | 96 inch |
| Taper | Cat-50 |
| Axis | 3 |
| Length | 210 inch |
| Width | 168 inch |
| Height | 144 inch |
| catalogid | 2096 |
| mfg | MORI SEIKI |
| mpn | MV-80B |
| title | Mori Seiki MV-80B Vertical Machining Center |
| joinSig |
Zero? Available Machines
Available Machine # Ez19572 | |

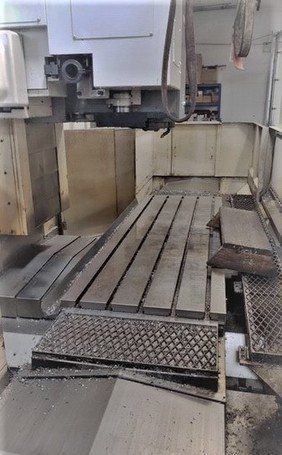

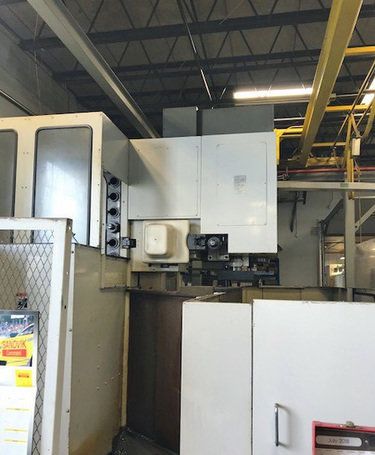

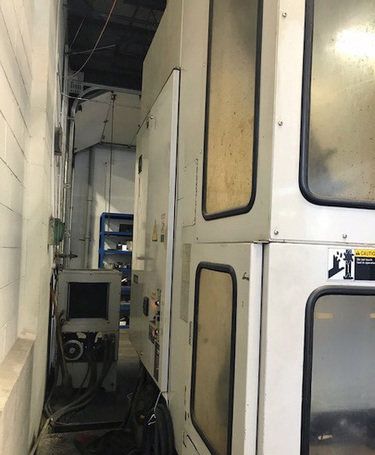

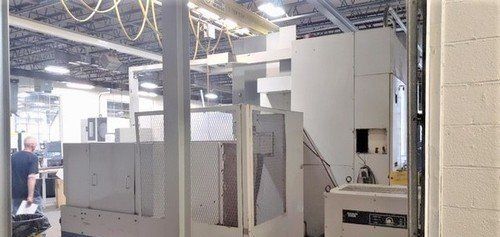

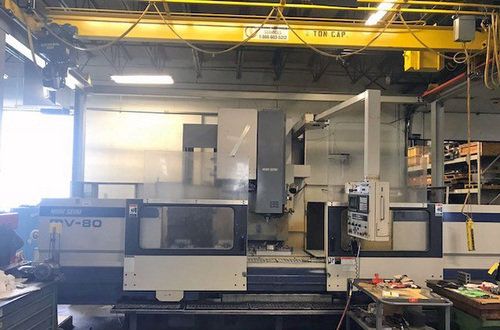

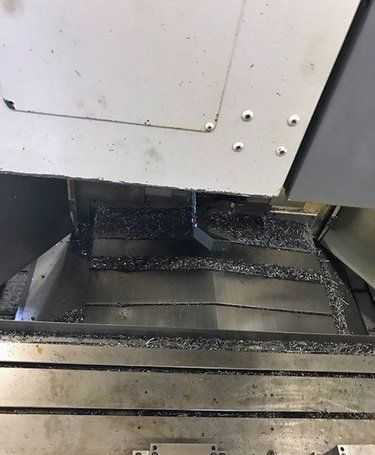

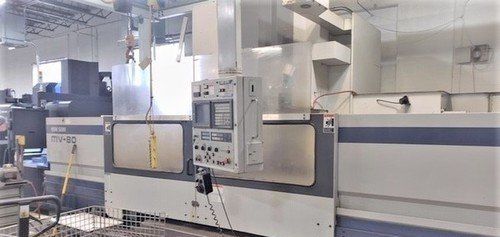

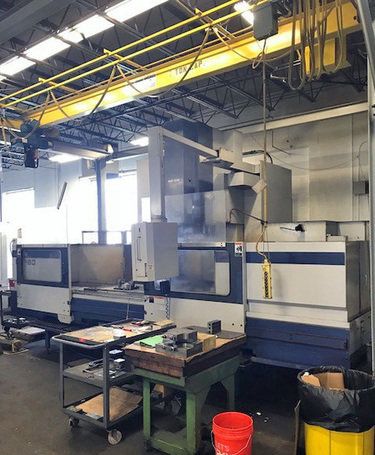

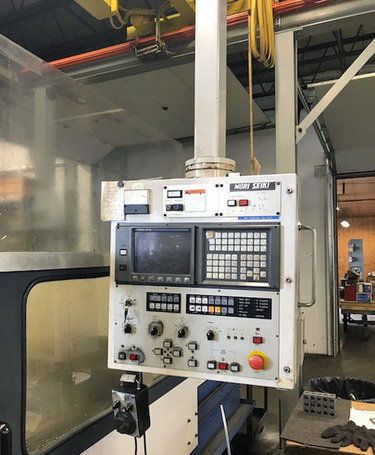

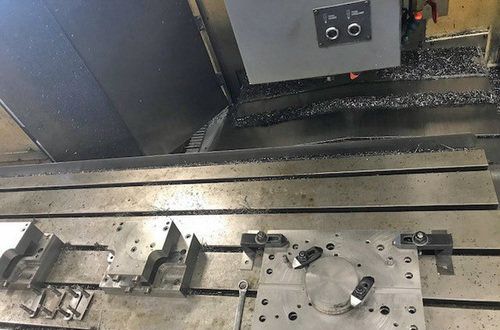

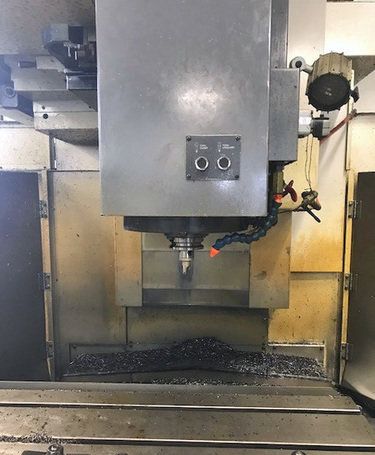

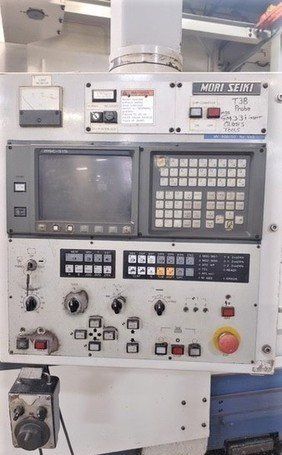

| Mori-Seiki MV-80B Fanuc 11M Travels (XYZ):80” x 32.05” x 29.53” Table Dimensions: 98.43" x 32.5" Table Loading Capacity: 6,600 LBS Spindle Speed Max: 3,500 RPM Spindle Taper: 50 Rapid Traverse Rates: 300 IPM Spindle HP: 25 ATC:40 Machine Dimensions: 210" L X 168" W X 144" H Fanuc 11M Control
|
           | |
