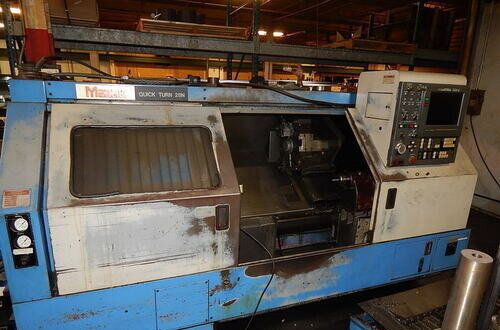

Mazak Quick Turn 28N CNC Lathes
Specifications
| Model | QUICK TURN 28N |
| Brand | MAZAK |
| Type | CNC Lathes |
| Control | CNC (MAZATROL T-32-2) |
| ChuckSize | 12 inch |
| BarCapacity | 2.75 inch |
| Axis | 2 |
| Power | 25 hp |
| MaxRPM | 3000 rpm |
| TurningDia | 12.5 inch |
| Swing | 20 inch |
| MachiningLength | 39.76 inch |
| Tailstock | Yes |
| LiveTooling | No |
| SubSpindle | No |
| Weight | 11,660 lbs. |
| Length | 135" |
| Width | 73" |
| Height | 73" |
| catalogid | 743 |
| mfg | MAZAK |
| mpn | QUICK TURN 28N |
| title | Mazak Quick Turn 28N CNC Lathes |
| joinSig |
Zero? Available Machines
Available Machine # Ez19426 | |

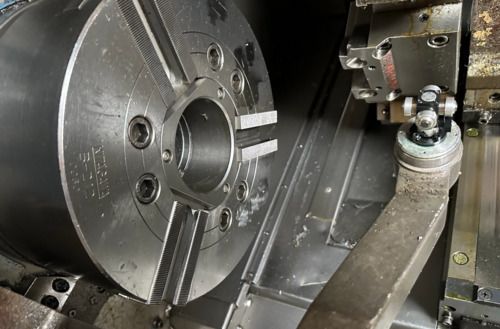

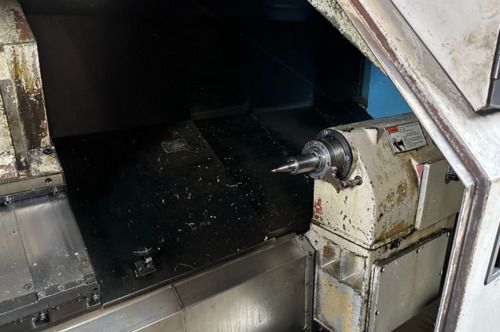

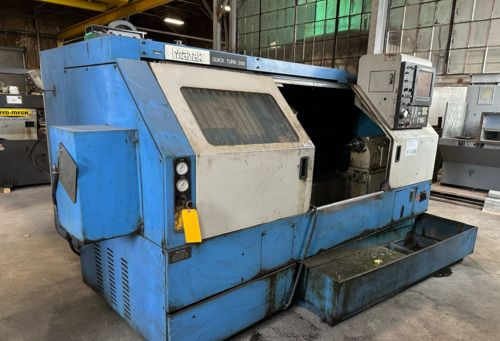

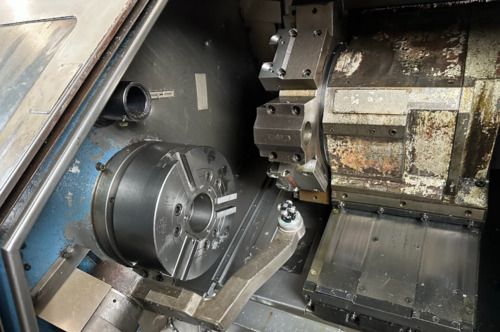

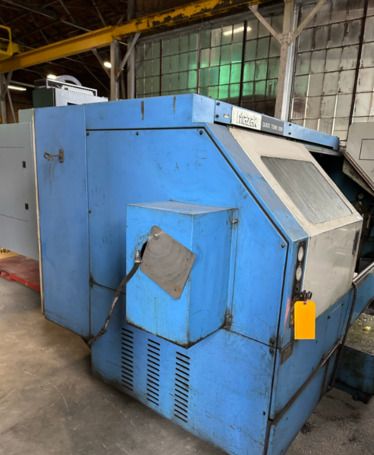

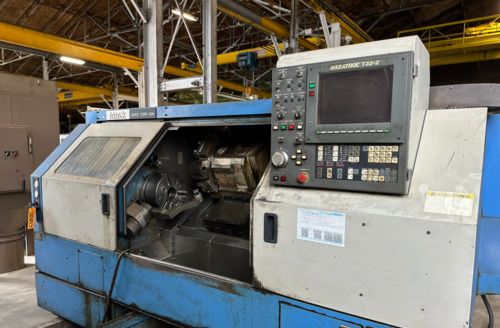

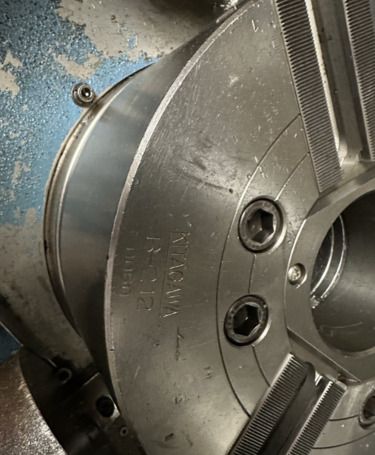

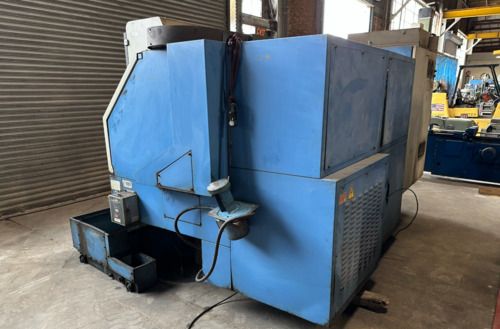

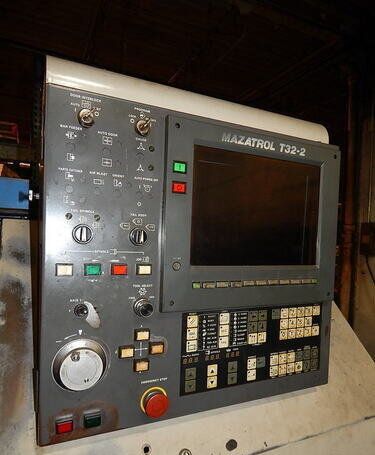

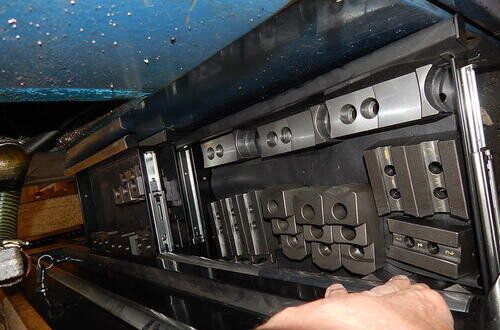

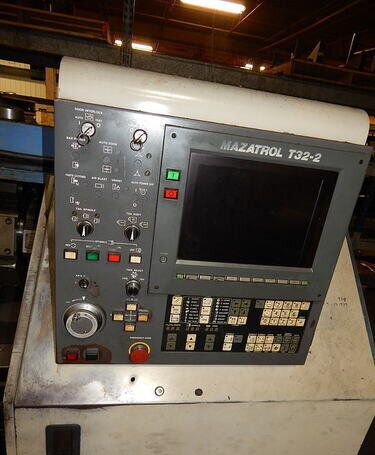

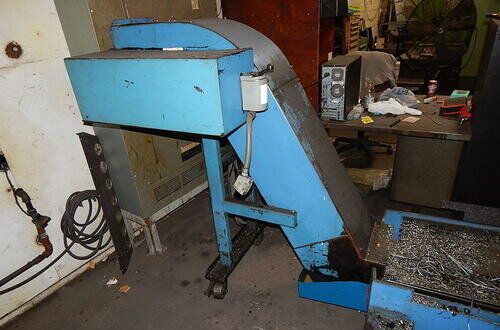

| 1993 MAZAK QUICK TURN 28N Chuck Size 10" Max Diameter Bar Capacity 2.75" Max Swing Over Bed / Carriage 20.08" / 15.75" Max Turning Diameter 12.6" Max Machining Length 39.4" Spindle Motor 30 / 26 HP AC Spindle Speed 30 - 3000 RPM Spindle Bore 3.15" Spindle Nose A2-8 Tools 8D / 16P Rapid Traverse Rates (X & Y / Z) 708 / 945 IPM Spindle Torque 318 ft. lbs. X-Axis Travel 7.87" Z-Axis Travel 40.16" Turret Index (Single Step / Full) 0.6 / 1.8 Seconds Tailstock Taper MT#4 Machine Dimensions (L x W x H) 135.04" x 72.79" x 72.8" Machine Weight 12,100 lbs. FEATURES: MAZATROL T-32-2 CNC CONTROL 12" Monochrome CRT Conversational Programming Graphic Display 10" Hydraulic 3-Jaw Chuck Programmable Tool Eye Programmable Tailstock Body & Quill Chip Conveyor (Side Exit) (4) Boring Bar Holders (3) Turning Holder Multi-Tap Transformer Manufacture Date June 1993
|
     | |

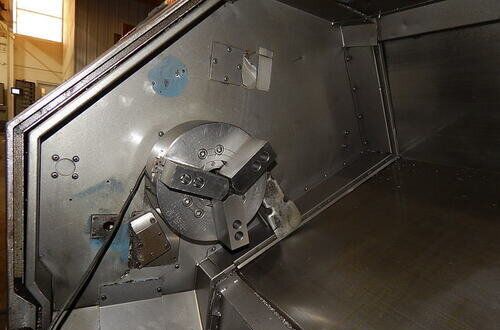

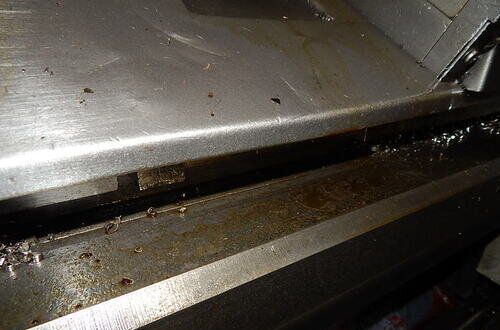

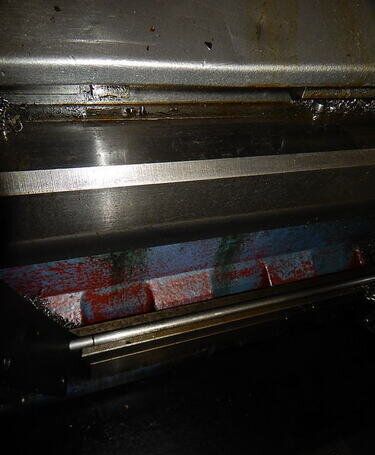

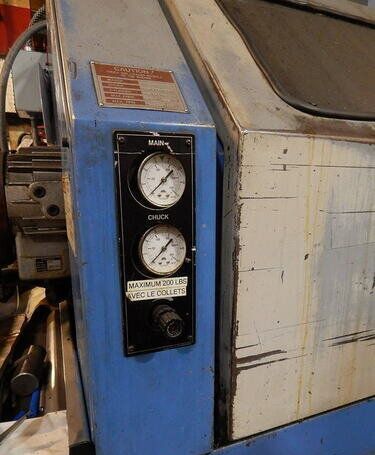

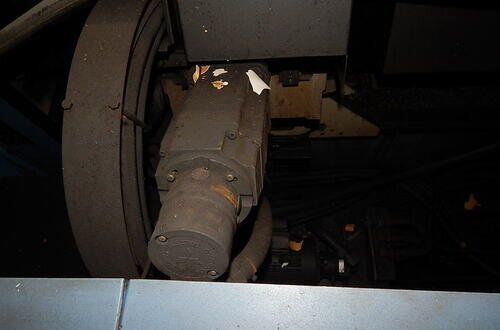

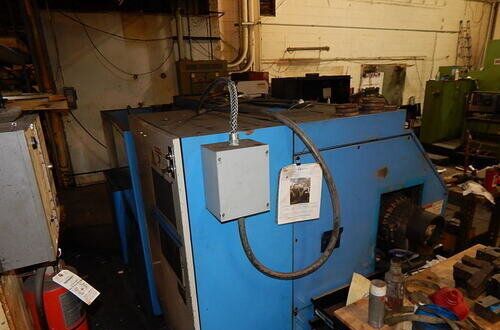

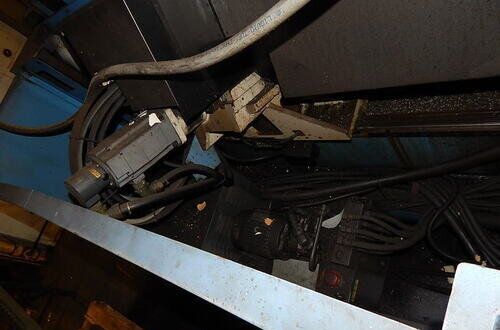

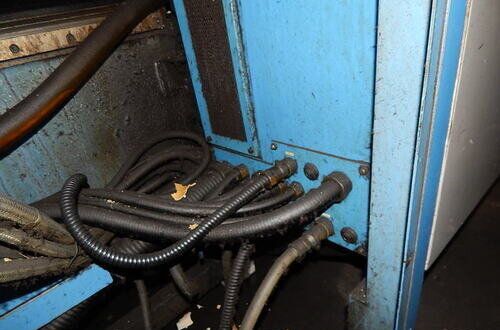

Available Machine # Ez146348 | |
|
|
                   | |
