Mazak AJV-25/405 Vertical Machining Center
Specifications
| Model | AJV-25/405 |
| Brand | MAZAK |
| Type | Vertical Machining Centers |
| Control | CNC (MAZATROL M-32) |
| X | 40 inch |
| Y | 20 inch |
| Z | 25 inch |
| Power | 25 HP |
| RPM | 3500 RPM |
| ATC | 20 |
| TableW | 21 inch |
| TableL | 49 inch |
| Taper | Cat 50 |
| Weight | 17,857 lbs. |
| Length | 101.18" |
| Width | 148.81" |
| Height | 119.13" |
| catalogid | 5 |
| mfg | MAZAK |
| mpn | AJV-25/405 |
| title | Mazak AJV-25/405 Vertical Machining Center |
| joinSig |
Zero? Available Machines
Available Machine # Ez19463 | |

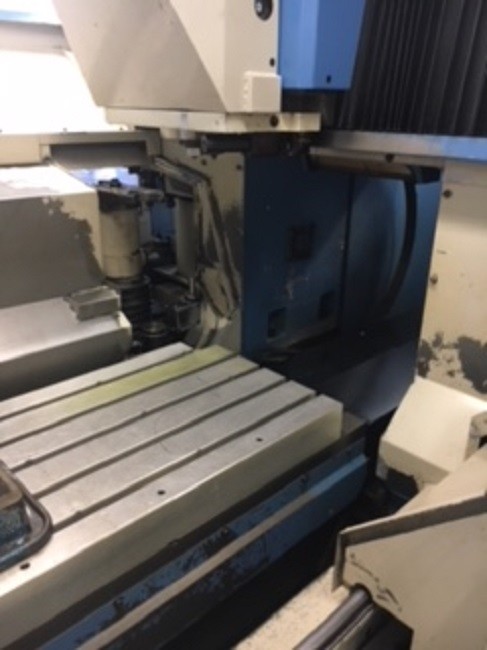

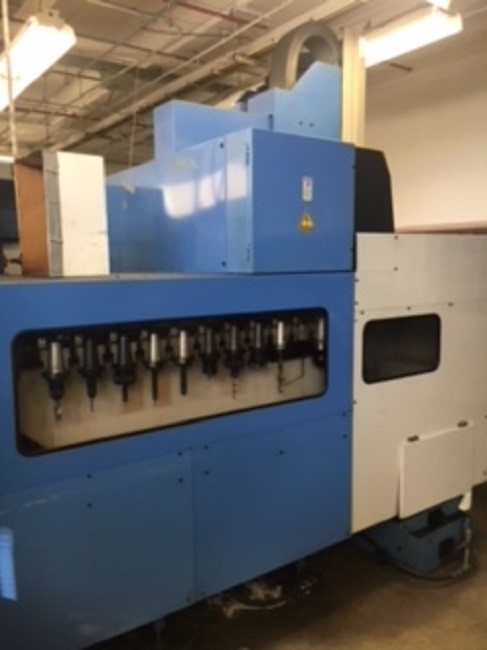

| 1989 MAZAK AJV-25/405 Travel: X-Axis 39.37" Y-Axis 20" Z-Axis 18.11" Table Size 48.81" x 21.65" Spindle Speed 22 - 3150 RPM Spindle Taper Cat 50 Spindle Nose to Table Top 7.87" - 25.98" Spindle Torque 207.5 ft. lbs. Main Motor 25 / 20 HP AC Tools 30 Table Load Capacity 1760 lbs. Rapid Traverse Rates (X&Y/Z) 945 / 708 IPM Max Tool Diameter 4.92" / 5.9" Max Tool Length 11.81" Max Tool Weight 33 lbs. Machine Dimensions (L x W x H) 101.18" x 148.81" x 119.13" Machine Weight 17,857 lbs. FEATURES: MAZATROL M-32A CNC CONTROL 14" Color CRT Conversational Programming EIA/ISO Input Function Graphic Display Auto Tool Length Measurement Rigid Tapping Helical Interpolation Mfg Date February 1989
|
       | |
