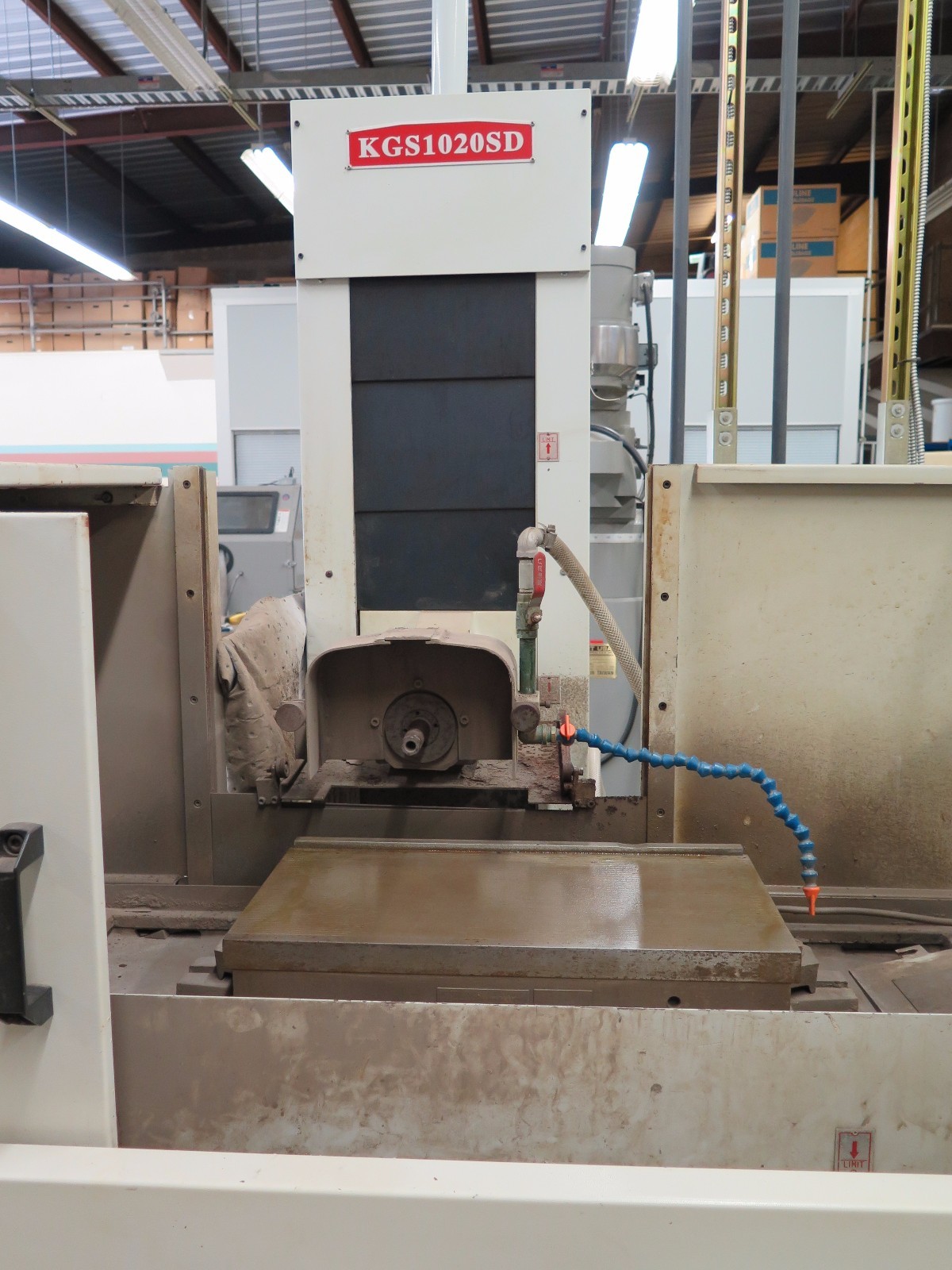

Kent KGS1020SD Rotary Table Surface Grinder Programmable 10" x 20"
Specifications
| Model | KGS1020SD |
| Brand | Kent |
| Type | Vertical Machining Centers |
| Weight | 4255 lbs. |
| Length | 78 inches |
| Width | 62 inches |
| Height | 85 inches |
| Power | 2.95 HP |
| RPM | 3420 RPM |
| TableL | 22.64 inches |
| TableW | 11.02 inches |
| catalogid | 5018 |
| mfg | Kent |
| mpn | KGS1020SD |
| title | Kent KGS1020SD Rotary Table Surface Grinder Programmable 10" x 20" |
| joinSig |
Zero? Available Machines
Available Machine # Ez15136 | |
| Parameters Unit KGS1020SD Working Surface of Table mm 255×510 (10"×20") Max.Table Travel mm 575 Max.Cross Travel mm 280 Distance Between Table Surface and Spindle Center mm 535 Max.Table Load kgs 300 T-Solt(Number×Width) mm 1×14 Table Speed m/min 5-25 Crossfeed Handwheel 1gard mm 0.02 1 rev 5 Automatic Crossfeed of Saddle mm 0.5-12 Power Cross Feed 50HZ mm 790 60HZ 950 Grinding Wheel Dimensions mm 200*25*32/31.75 Spindle Speed 50HZ rpm 2850 60HZ 3420 Vertical Handwheel 1gard mm 0.001 1 rev 0.1 Automatic Down Feed Rate mm 0.001-1 Power Head Increment mm 210 Spindle Motor kw 2.2 Vertical Motor w 750 Hydraulic Motor kw 1.5 Dust Collection Motor w 550 Coolant Motor w 90 Crossfeed Motor w 60 Floor Space mm 1900×2300 Packing Dimensions mm 1960*1560*2140 Net Weight kgs 1680 Gross Weight kgs 1930
|
      | |
