Fadal VMC-4525 Vertical Machining Centers
Specifications
| Model | VMC-4525 |
| Brand | FADAL |
| Type | Vertical Machining Centers |
| Control | CNC (Fadal 32MP) |
| X | 45 inch |
| Y | 25 inch |
| Z | 24 inch |
| Power | 20 hp |
| RPM | 10000 rpm |
| ATC | 24 |
| TableW | 53.5 inch |
| TableL | 25 inch |
| Taper | CAT-40 |
| Axis | 4 |
| catalogid | 319 |
| mfg | FADAL |
| mpn | VMC-4525 |
| title | Fadal VMC-4525 Vertical Machining Centers |
| joinSig |
Zero? Available Machines
Available Machine # Ez75533 | |

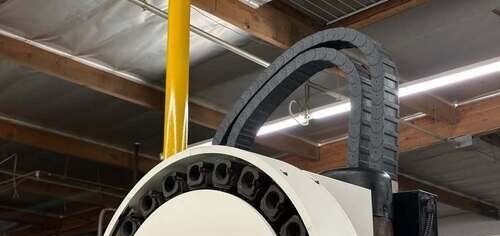

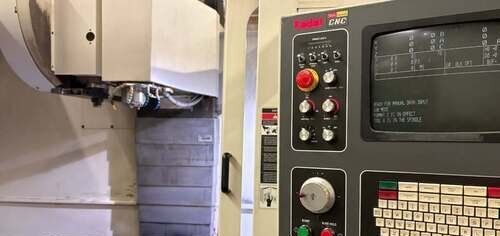

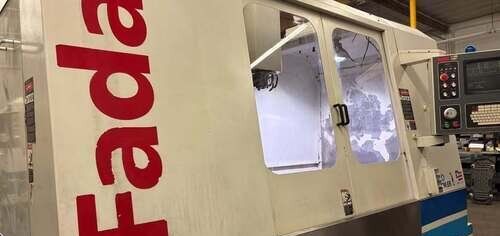

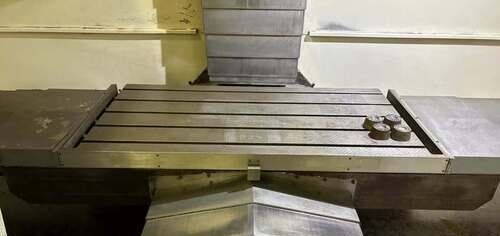

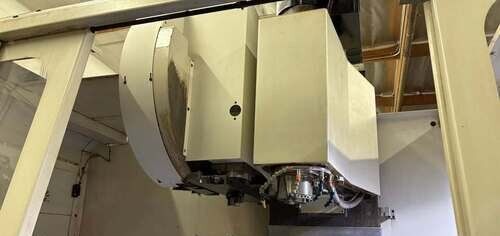

| 2000 Fadal 4525 Vertical Machining Center Model: 922-1 / VMC-4525 Electrics: 230 Volt / 3 Phase / 50-60 Cycle / FLA: 60 Amp Motor: 30 HP Features and Specifications: …Table: 53” x 25” / 4,250 lb. Table Load …Travels: 45” / 25” / 32” (X,Y,Z) …Speed: 7,500 / 10,000 RPM …Taper: CAT 40 …ATC: 24 Slots …Side Mount, Dual Arm ATC …Fadal CNC …Coolant System …Remote Jog Generator …Manual Switcher Pallet Changers |
               | |
