DAH LIH MCV-510 VERTICAL MACHINING CENTER
Specifications
| Model | MCV-510 |
| Brand | DAH LIH |
| Type | Vertical Machining Centers |

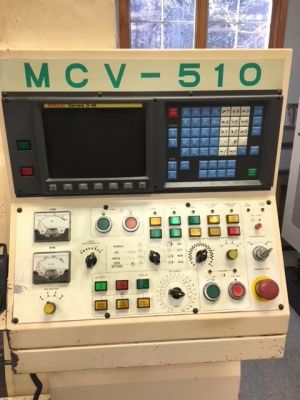

| Control | FANUC OM |
| X | 20” |
| Y | 14” |
| Z | 16” |
| Power | 10 HP |
| TableW | 4” |
| TableL | 20” |
| RPM | 6000 RPM |
| Taper | CAT 40 |
| Length | 78” |
| Width | 91” |
| Height | 88” |
| Weight | 7,900 lbs. |
| catalogid | 5270 |
| mfg | DAH LIH |
| mpn | MCV-510 |
| title | DAH LIH MCV-510 VERTICAL MACHINING CENTER |
| joinSig |
Zero? Available Machines
Available Machine # Ez17789 | |

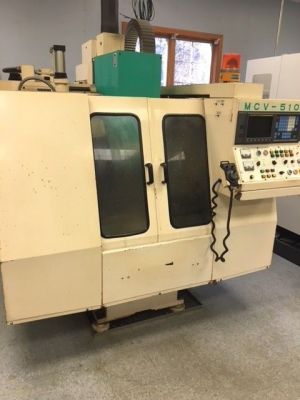

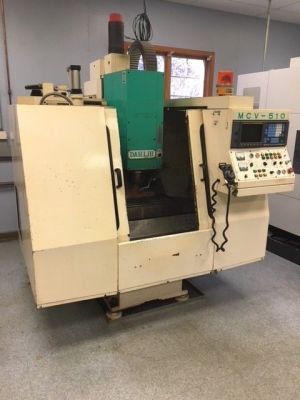

| 1994 DAH LIH MCV-510 VERTICAL MACHINING CENTER FANUC OM CONTROL, RIGID TAPPING, FULLY ENCLOSED Travels (XYZ) 20” x 14” x 16” Carousel Tool Changer 16 Stations Distance Spindle Nose to Table 4”-20” Rapid Traverse 800 IPM Spindle Motor 10 HP Spindle Speed Range 6000 RPM Spindle Taper CAT 40 Dimensions (LxWxH) 78” x 91” x 88” Weight 7,900 lbs.
|
         | |
