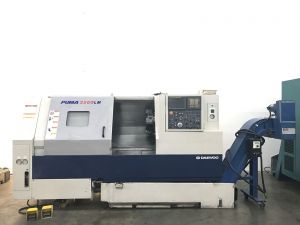

DAEWOO PUMA 2500LM CNC TURN MILL
Specifications
| Model | Puma 2500LM |
| Brand | DAEWOO |
| Type | CNC Lathes |

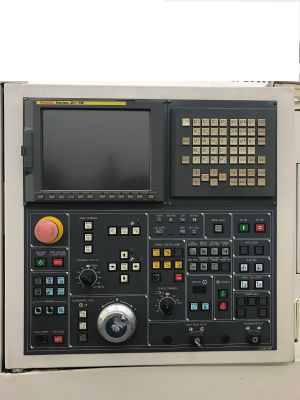

| Control | Fanuc 21-iTB CNC Control |
| Power | 32kva |
| Tailstock | YES |
| TurningDia | 12.99" |
| Axis | X Axis Travel: 9.84" |
| Swing | Swing Over Carriage: 16.92" Swing Over Bed: 23.62" |
| LiveTooling | Live Tooling Motor: 7.5HP Live Tool Speed: 50-5,000 RPM |
| Length | 169 |
| Width | 79 |
| Height | 74 |
| Weight | 11500LBS |
| catalogid | 3767 |
| mfg | DAEWOO |
| mpn | Puma 2500LM |
| title | DAEWOO PUMA 2500LM CNC TURN MILL |
| joinSig |
Zero? Available Machines
Available Machine # Ez10145 | |
| Equipped With: 12-Station Turret with Live Tools/ Milling Box Ways Design Long Bed Machine Fanuc 21-iTB CNC Control 10" 3-Jaw Kitagawa Hydraulic Chuck 2 Step gear spindle for powerful torque Hydraulic Programmable Tailstock Turbo Chip Conveyor Coolant System. Automatic Lubrication system Foot Operated Control for Chuck Coolant Tank Comes with Chip Conveyor, Tool Holders, 2 Live Tools and Parameters Backup.
|
         | |
