Clausing STORM 100A CNC Lathes
Specifications
| Brand | CLAUSING |
| Model | STORM 100A |
| Type | CNC Lathes |
| Control | CNC (Fanuc OT) |
| Lower | 62 |
| BarCapacity | 1.75 inch |
| Axis | 2 |
| Power | 10 HP |
| MaxRPM | 6000 RPM |
| TurningDia | 7.32 inch |
| MachiningLength | 24 inch |
| Upper | 82 |
| Tailstock | Yes |
| LiveTooling | No |
| SubSpindle | No |
| Weight | 5300 Lbs |
| catalogid | 3772 |
| mfg | CLAUSING |
| mpn | STORM 100A |
| title | Clausing STORM 100A CNC Lathes |
| joinSig |
Zero? Available Machines

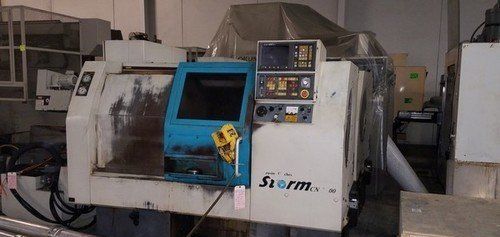

Available Machine # Ez10168 | |
| Specifications: Control Fanuc OT Max Turn Diameter 7.32" Distance Between Centers………. 24” Spindle Speeds 6,000 RPM Spindle Motor Main 10 HP Spindle Nose A2-5 Bar Capacity 1.75” Turret Positions 12 Station Turret Machine Weight 5,300 Lbs Equipped With: Fanuc OT Control 3J Collet Chuck Tailstock Chip Conveyor LNS 6.45 Hydrodynamic Barfeed (12’) Misc. Tool Holders
|
 | |
