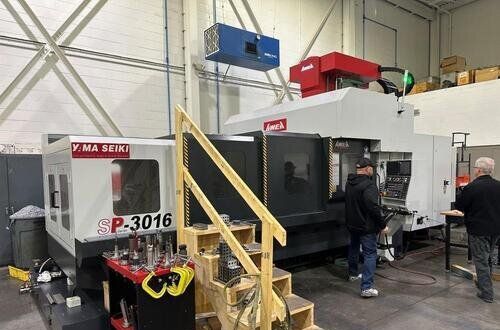

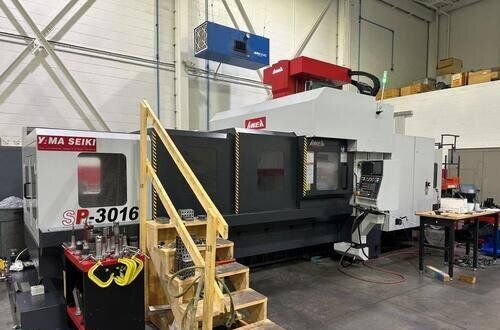

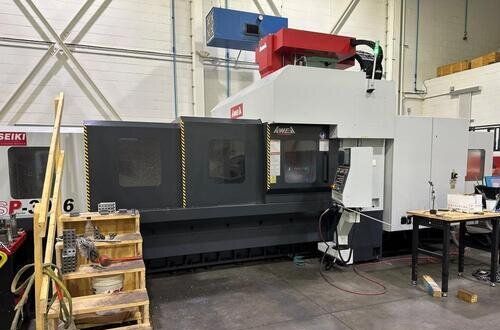

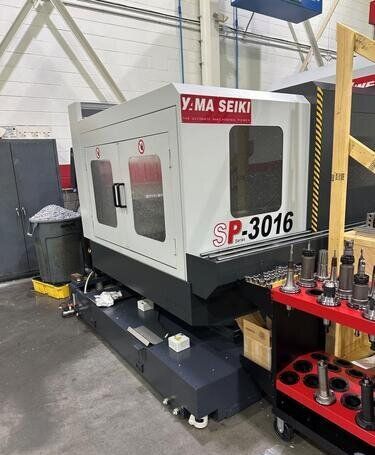

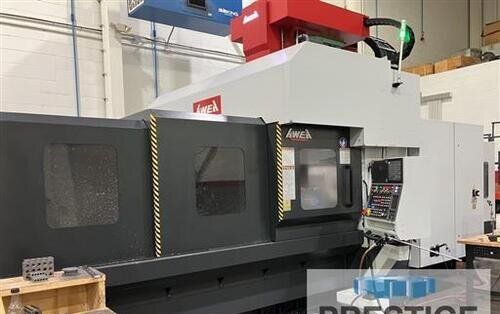

Awea SP-3016 Gantry Machining Centers (incld. Bridge & Double Column)

Specifications

BrandAWEA
ModelSP-3016
Power29.5 hp
RPM6000 rpm
ControlCNC (Fanuc)
TableL128.3 "
TableW59.06 "
TypeGantry Machining Centers (incld. Bridge & Double Column)
X120.5 "
Y62.99 "
Z29.92 "
imagesnone
catalogid8502
mfgAWEA
mpnSP-3016
titleAwea SP-3016 Gantry Machining Centers (incld. Bridge & Double Column)
joinSig

Zero? Available Machines

Available Machine # Ez26862

  • Stock#:Ez26862
  • Price:$159,500
  • Year:2008
  • Region:Midwest
  • Condition:Used

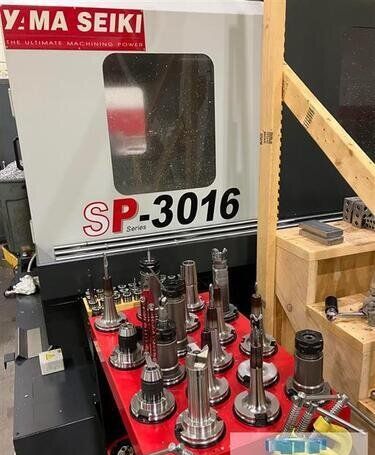

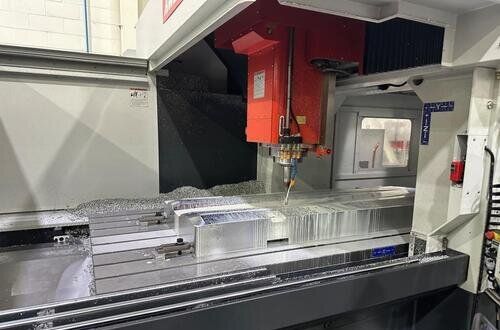

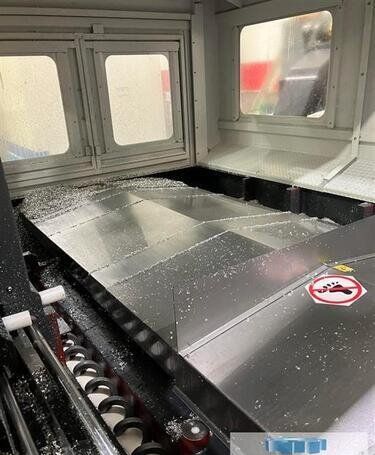

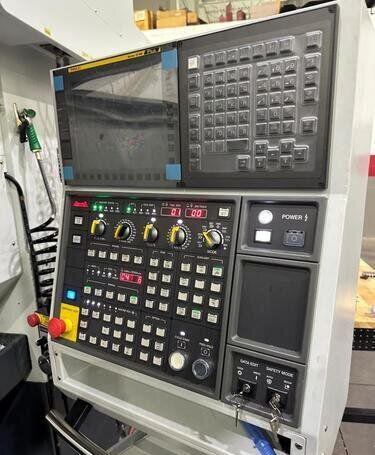

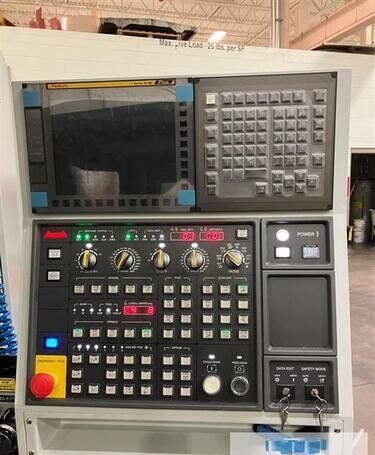

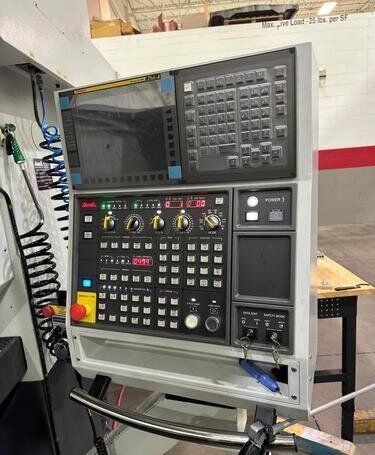

Equipped With Fanuc CNC Control 60 Position Tool Changer high pressure coolant thru spindle // Capacity X-Axis Travel 120.5" Y-Axis Travel 63.3" Z-Axis Travel 30.0" Dist. From Spindle nose to table top 7.8-37.8" Dist. Between columns 66.9" Working Table Table Size (X Direction) 128" Table Size (Y Direction) 59" Table Load Capacity 10,000 kg Spindle cat 50 Spindle motor (cont./30 min.) 30/35 HP Spindle Speed 6,000 RPM Spindle Taper BT50 Feed Rate X-Axis Rapid feed rate 787 IPM Y-Axis Rapid feed rate 787 IPM Z-Axis Rapid Feedrate 590 IPM Cutting Feedrate 393 IPM Tool Magazine Tool magazine capacity /60 opt) Max. Tool Diameter (adj. pocket empty) deg 127/215mm Max. Tool Length 400mm Max. Tool weight 20 kg
