Amada RG-125 Press Brakes

Specifications

BrandAMADA
ModelRG-125
TypePress Brakes
imagesnone
catalogid8708
mfgAMADA
mpnRG-125
titleAmada RG-125 Press Brakes

Zero? Available Machines

Available Machine # Ez31284

  • Stock#:Ez31284
  • Price:Call
  • Year:1983
  • Region:South
  • Condition:Used



Available Machine # Ez27209

  • Stock#:Ez27209
  • Price:$69,500
  • Year:1991
  • Region:South
  • Condition:Used

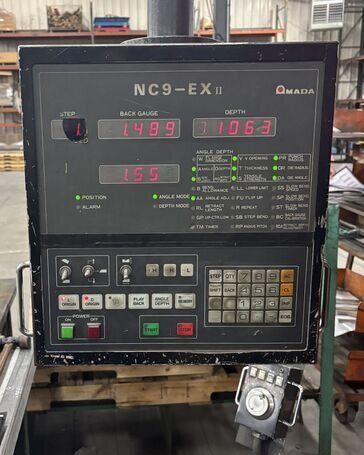

SPECIFICATIONS Model: RG 125 EXII Maximum Tonnage: 138 USTons Maximum Bending Length: 120.28" Maximum Stroke Length: 3.937" Open Height: 14.57" Throat Depth: 15.75" Distance Between Side Frames: 100.39" Ram Speed: Approach: 1.8"/sec. Bending: .33"/sec. Return Speed: 1.38"/sec. Electrical Requirements: 15hp, 230/460/3/60 CNC Control: NC9EX-II Machine Weight: 15,650 lbs Roller guiding system eliminates all ram/guide freeplay and wear. Tonnage limiter and gauge protect tooling and increase safety. Exclusive handwheel depth control simplifies set-up and reduces scrap. Sectionalized punch holders allow deep box forming and can create windows for long return flanges. Smooth throttle action pedal increases operator control and safety. Treadle safety shield. Exclusive tool holders simplify procedures and reduce tooling set-up time. NC9EX-II Amada 3 Axis CNC Control


Available Machine # Ez27817

  • Stock#:Ez27817
  • Price:$69,500
  • Year:1997
  • Region:South
  • Condition:Used
Model: RG 125 EXII specifications: Maximum Tonnage 138 USTons Maximum Bending Length 120.28" Maximum Stroke Length 3.937" Open Height 14.57" Throat Depth 15.75" Distance Between Side Frames 100.39" Ram Speed: Approach 1.8"/sec. Bending .33"/sec. Return Speed 1.38"/sec. Electrical Requirements 15hp, 230/460/3/60 CNC Control NC9EX-II Machine Weight 15,650 lbs NC9EX-II Amada 3 Axis CNC Control Pneumatic Foot Switch Option Merlin Light Guards
