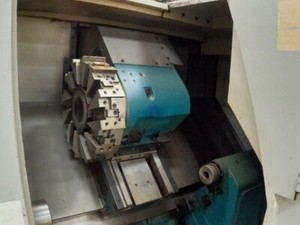

Acra MT-52 45 Degree Slant Bed Precision CNC Lathe
Specifications
| Model | MT52 |
| Brand | Acra |
| Type | CNC Lathes |
| Control | Fanuc |
| BarCapacity | 2 Inches |
| ChuckSize | 8 Inches |
| Swing | 18 Inches |
| catalogid | 23829 |
| mfg | Acra |
| mpn | MT52 |
| title | Acra MT-52 45 Degree Slant Bed Precision CNC Lathe |
| joinSig |
Zero? Available Machines
Available Machine # Ez81839 | |
| Acra MT-52 45 Degree Slant Bed Precision CNC Lathe 18" Swing 8" Chuck 2" Bar Capacity Fanuc Control Specification Maximum Swing: 18" Chuck Size: 8" Turning Diameter: 11.8" Turning Length: 13.8" Bar Capacity: 2" Tailstock Quill Diameter: 3.14" Tailstock Stroke: 3.14" Tailstock Travel: 10.4" Spindle Nose: A2-6 Spindle Bore: 3.9" Spindle Speeds (1): 1-4,800 RPM Turret Stations: 12 Turret Tool Shank Size: 0.75" Square/ 1.25" Round Number of Axes: 2 X1 Axis Travel: 7" Z1 Travel: 15.75" X1 Rapid Rate: 787 IPM Z1 Rapid Rate: 945 IPM Equipped with: Fanuc CNC Controller Coolant System Tailstock Foot Pedal |
    | |
