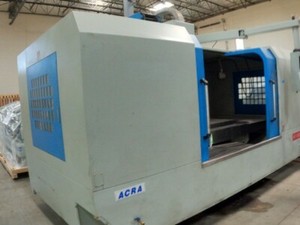

Acra AF1600 62" x 31" x 27" Vertical Machining Center Four Box Ways Fanuc OiMD
Specifications
| Model | AF1600 |
| Brand | Acra |
| Type | Vertical Machining Centers |
| catalogid | 23810 |
| mfg | Acra |
| mpn | AF1600 |
| title | Acra AF1600 62" x 31" x 27" Vertical Machining Center Four Box Ways Fanuc OiMD |
| joinSig |
Zero? Available Machines
Available Machine # Ez81786 | |
| Make Offer with eBay Acra AF1600 62" x 31" x 27" Vertical Machining Center Four Box Ways Fanuc OiMD Specification Work table: 70" x 31" T-Slots: 6.2" x 0.86" x 5T Maximum Table Load: 5, 51 lbs. X-Axis Travel: 62" Y-Axis Travel: 31" Z-Axis Travel: 27" Spindle nose to table surface: 7.8"~35.4" Spindle center to column slide ways: 33.4" Spindle Taper: BT-50 Spindle Diameter: Ø3.9" Spindle Speed: 4,500 RPM 3-Axis Slide Ways: Box Ways 3-Axis Rapid Feedrate (m/min): X (15), Y(15), Z(12) 3-Axis cutting feedrate (m/min): 6 Tool magazine type: Armless Tool selection: Bi-directional shortest path Maximum tool diameter x length: Ø5.7" x 11.81" Maximum tool weight: 33 Lbs. Tool Shank: BT-50 ATC capacity: 20 Spindle Motor (cont. /30 min.)(HP): 14/20 HP X,Y,Z Axis servo motor: X/Y: HF454, Z: HF454SB X,Y,Z axis ball screws: Ø50 x pitch 10 Coolant pump: 670 Watts Coolant tank capacity: 500 L Dimensions (W x D x H): 175" x 118" x 137" Weight: 37,478 Lbs. Equipped with: Fanuc OiMD CNC controller Spindle Oil Cooler Electrical Control Box Armless Type Magazine Splash Guard |
   | |
