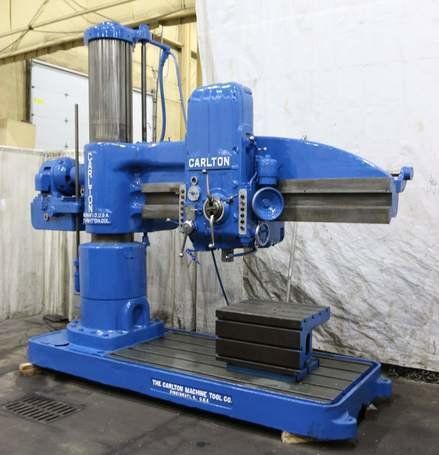

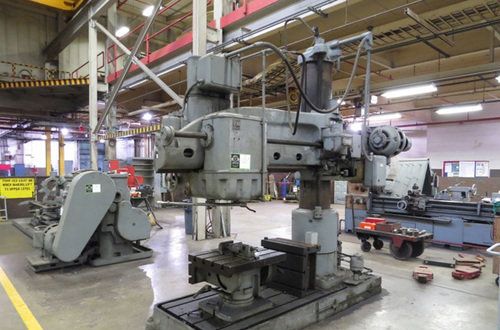

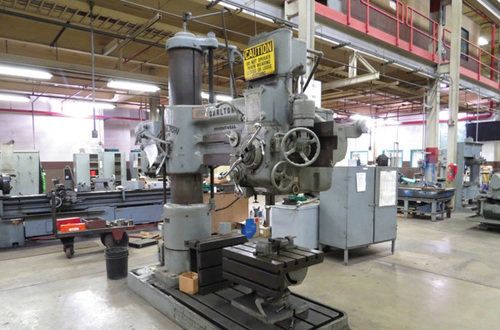

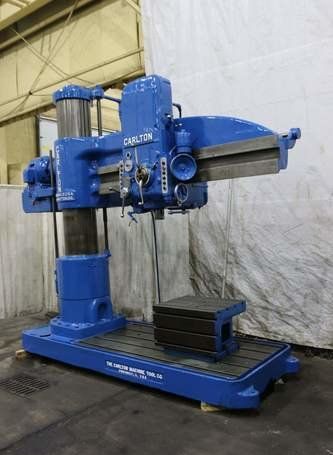

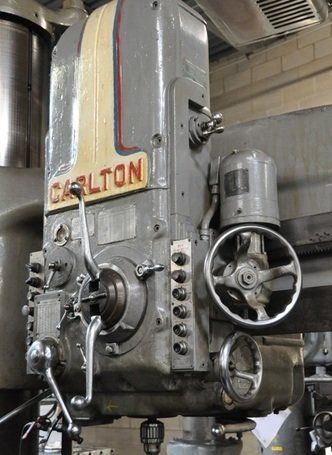

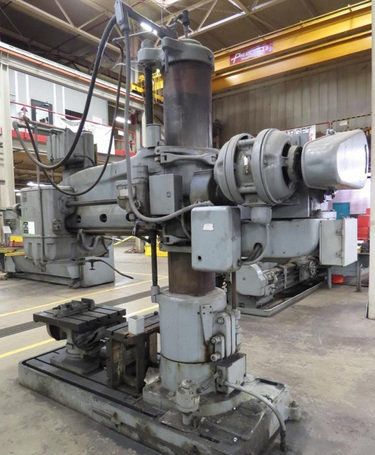

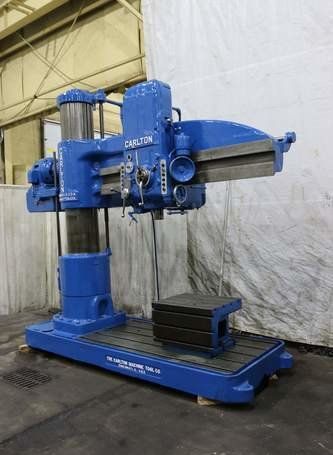

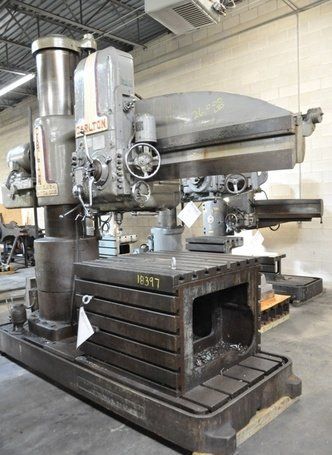

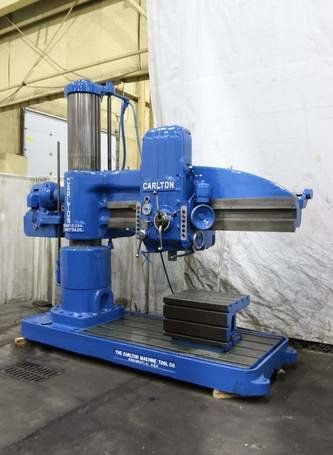

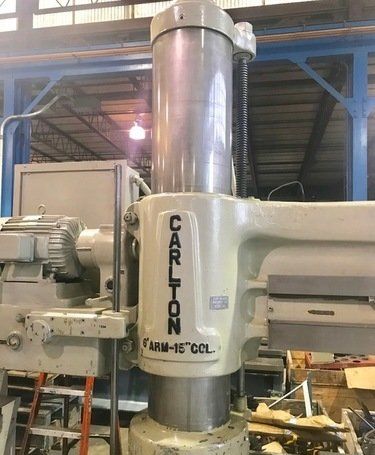

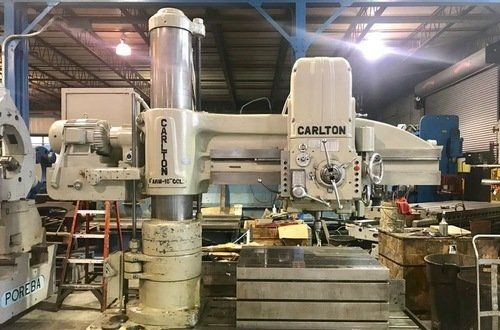

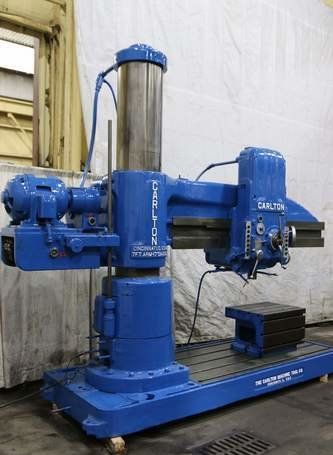

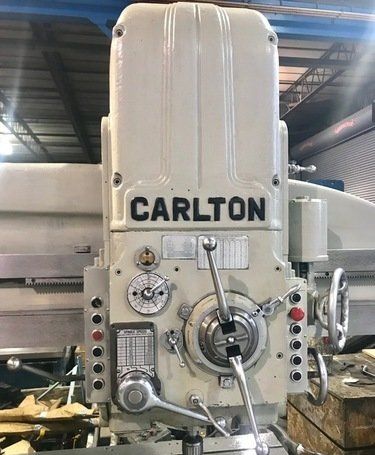

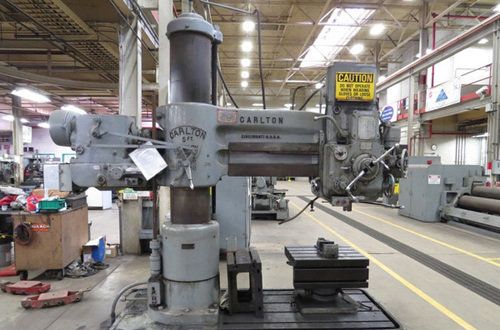

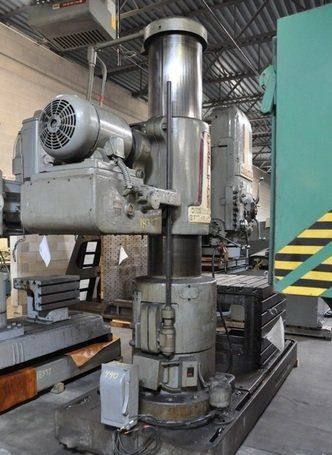

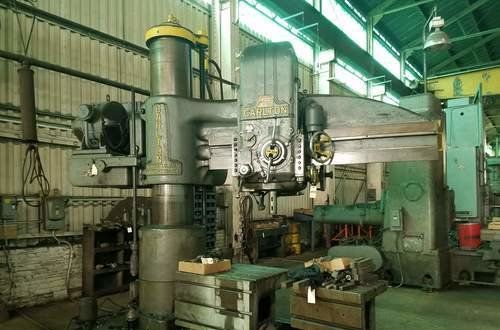

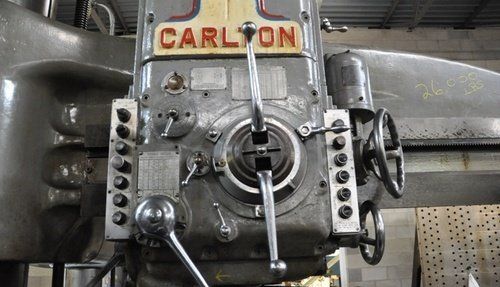

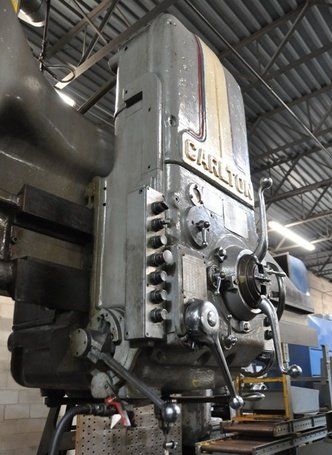

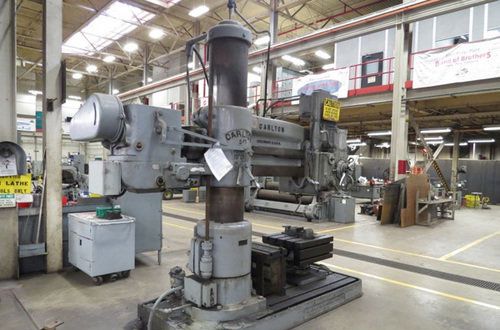

6' X 15" CARLTON 3A RADIAL DRILL

Specifications

Model3A
BrandCARLTON
TypeVertical Machining Centers
Weight18,500 lbs
catalogid5259
mfgCARLTON
mpn3A
title6' X 15" CARLTON 3A RADIAL DRILL
joinSig

Zero? Available Machines

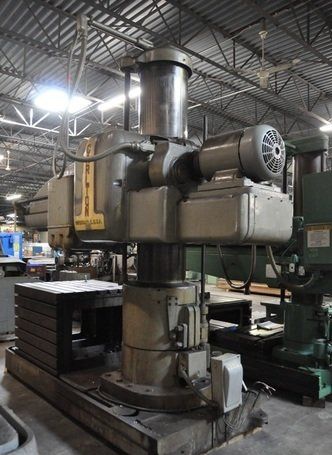

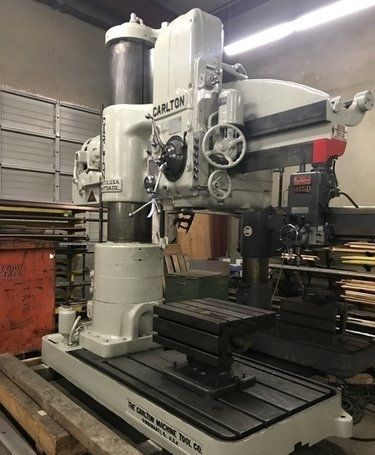

Available Machine # Ez26559

  • Stock#:Ez26559
  • Price:Call
  • Year:1951
  • Region:West
  • Condition:Used



Available Machine # Ez54431

  • Stock#:Ez54431
  • Price:$14,500
  • Year:1964
  • Region:Northeast
  • Condition:Used
1964 Carlton 3A Radial Drill 5' X 13" 15 HP 220V w/ Coolant Pump and Piping

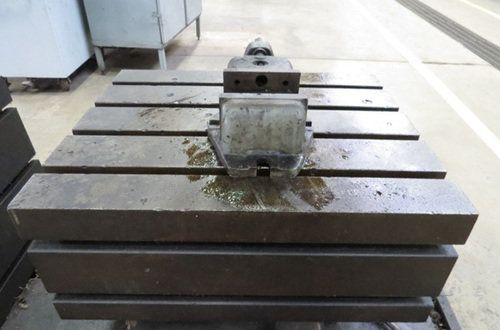

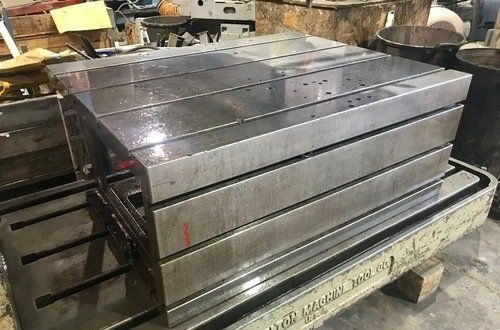

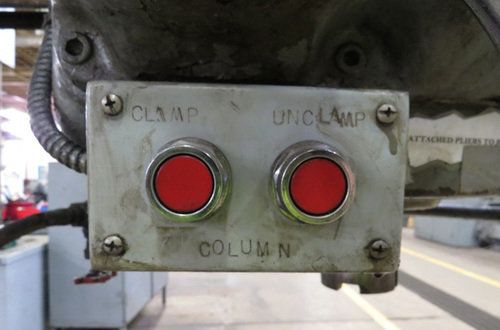

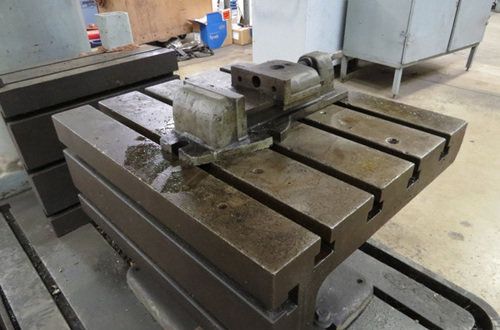

Face of Column to Center of Spindle: 15" Min, 60" Max. Spindle Radius: 26" Min., 71" Max. Spindle to Base: 10-1/2" Min., 60" Max. Working Surface of Base: 65" LR x 42" FB Height of Base: 8" Vertical Spindle Travel: 18" Spindle Diameter: 3-3/16" Spindle Taper: #5 Morse Traverse of Arm on Column: 31-1/2" Traverse of Head on Arm: 45" (36) Speeds: 12 to 1200 RPM (18) Feeds: .004" to .125" (4) Thread Leads: 8, 11-1/2, 14, 18 TPI EQUIPPED WITH: Power Clamping of Column, Arm and Head Quill Depth Adjustable Feed Kick-Out Stop Built in Machine Work Light Rapid Traverse to Head on Arm Coolant Pump and Piping Box Table 15 HP Main Motor Wired for 3 Phase, 60 Cycle, 220/440 Volts Currently Wired 220 Volts Overall Size: 128" LR x 52" FB x 119" High on 4" Blocks Weight: 16,000 Lbs.

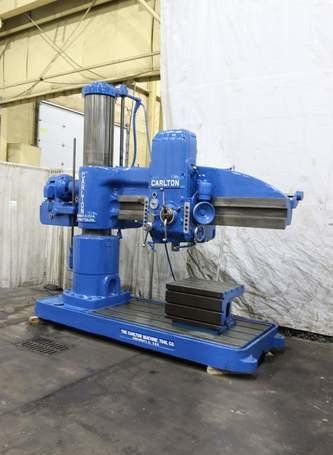

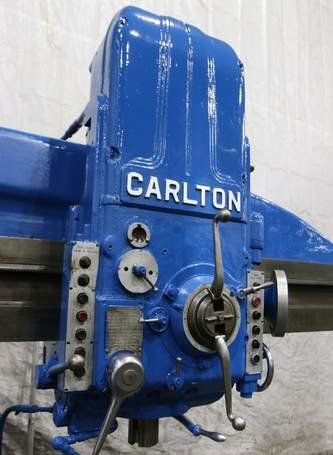

Available Machine # Ez50456

  • Stock#:Ez50456
  • Price:Call
  • Year:1990
  • Region:Midwest
  • Condition:Used

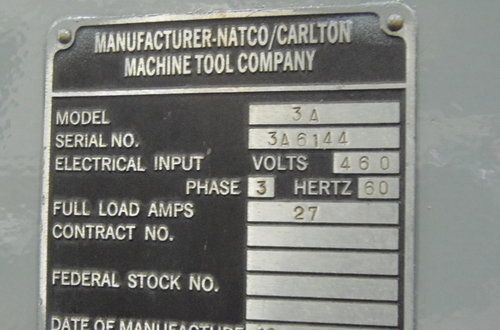

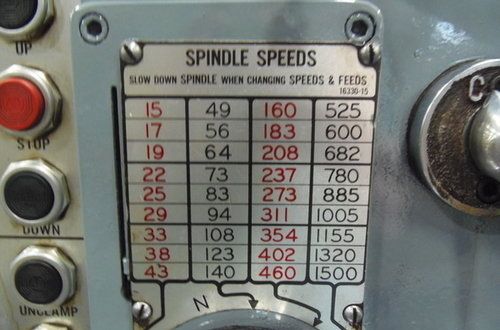

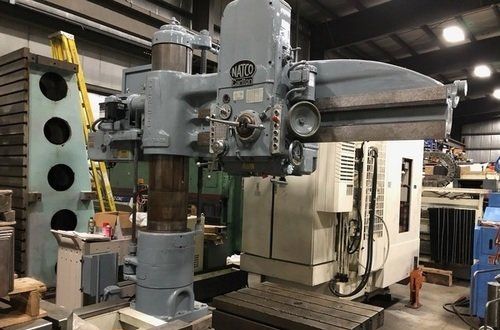

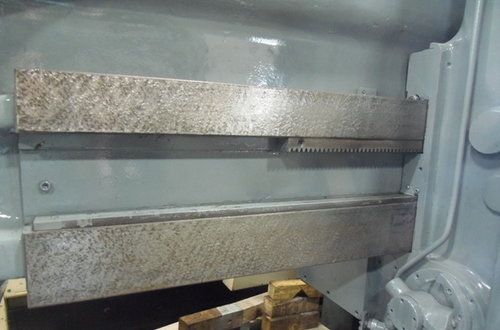

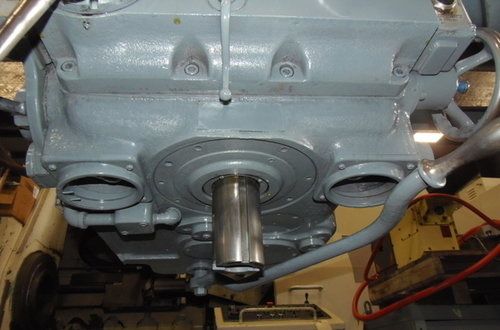

Available Machine # Ez33265

  • Stock#:Ez33265
  • Price:$39,500
  • Year:1999
  • Region:Midwest
  • Condition:Used
