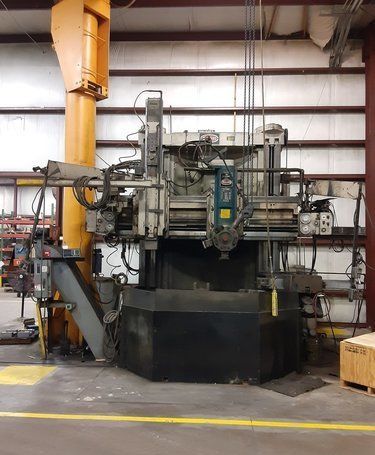

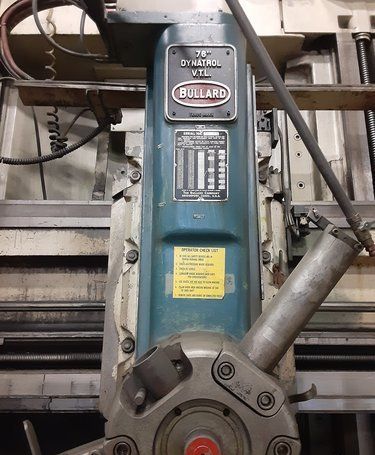

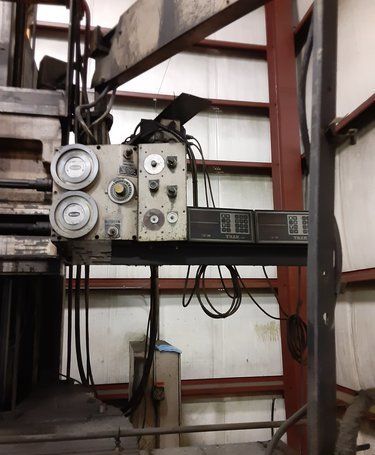

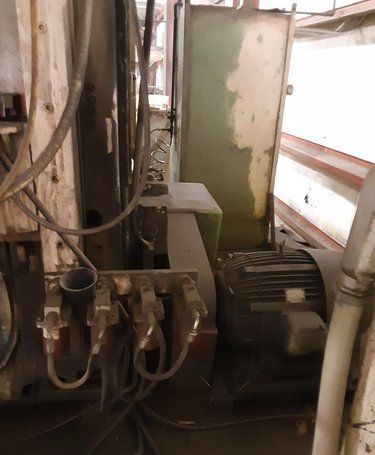

Available Machine # Ez50734 |
- Stock#:Ez50734
- Price:Call
- Year:1965
- Region:United States
- Condition:Used
|
|

|
Available Machine # Ez14252 |
- Stock#:Ez14252
- Price:$22,500
- Year:1965
- Region:Northeast
- Condition:Used

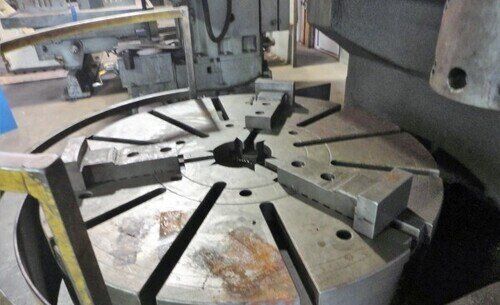

| SPECIFICATIONS: Table Size: 56" 4-Jaw with (4) Hard Reversible Top Jaws Maximum Swing Side Head Above Table: 62" Maximum Swing Side Head Below Table: 66" Maximum Height Under Turret: 52" Rail Adjustment: 35" Turret Head Swivel: 30 Degrees Turret Head Travel Left of Center Line: 34-1/2" Turret Head Travel Right of Centerline: 31" Turret Head Travel Vertical: 26" Ram Head Carriage and Controls are there but the slide ram is missing. Side Head Travel Vertical: 38-3/4" Side Head Travel In & Out: 23-3/4" Table Height: 37" Table Speed: 7 to 250 RPM Feeds: .001 to .250 IPM Rapid Traverse: 120 IPM English Threads TPI: 2 to 32 Metric Threads MM: 1 to 7 English Drum Scoring TPI: ¼ to 1-3/4 Metric Drum Scoring MM: 8 to 44 EQUIPPED WITH: TDA Attachment for Angle Turning, English and Metric Threading and Drum Scoring (27) Assorted Change Gears for TDA Rail and Side Head Feed Features: Rapid – Creep – Neutral - Feed Hardened Chrome Ways on Rail and Vertical For Side Head 5-Position Rail Turret Head with Manual Indexing 4-Position Turret Type Side Head Tool Holder with Manual Indexing Pendant Control for Table Speeds and Clutch Engagement Only Flush Floor Design NO Chuck Wrench Chip / Coolant Pan Motor and Belt Guarding (3) 3 Sided Tool Holders, (1) boring Bar and (1) Bull Nose Center ¾ HP Coolant Pump Motor 75 HP Main Motor, Wired for 3 Phase, 60 Hz, 220 / 440 Volts Motor Mount Frame Has Belt Tensioning Adjustment and is Bolted To The Chip Pan Overall Dimensions 144" L-R x 119" F-B (motor removed) x 143-5/16" High x 71,600 Lbs. (machine only no motor or pan) Chip Pan with Motor Attached 120" x 156" x 104" High with assembled motor and electrical conduit
|

|

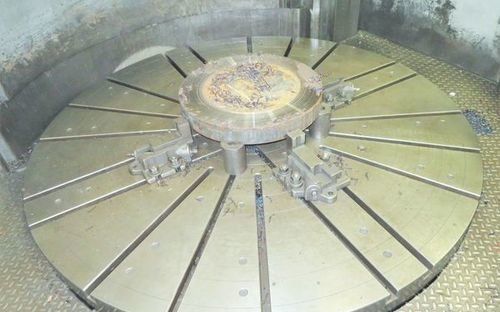

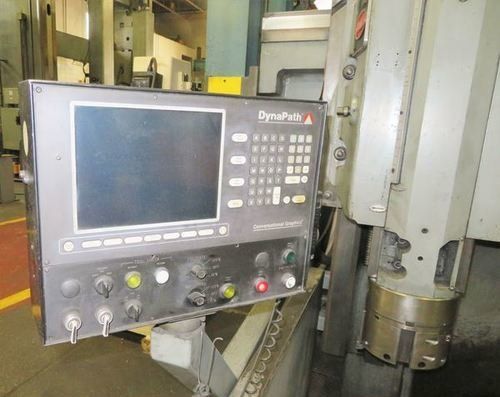

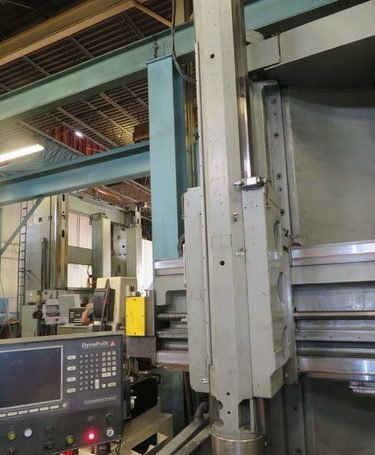

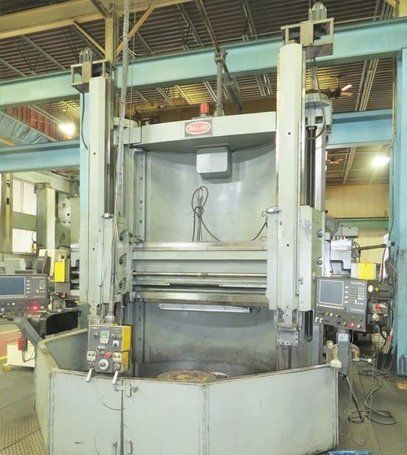

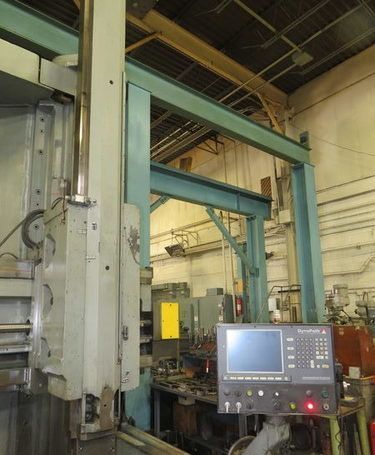

Available Machine # Ez51240 |
- Stock#:Ez51240
- Price:Call
- Year:N/A
- Region:United States
- Condition:Used
|
|

|

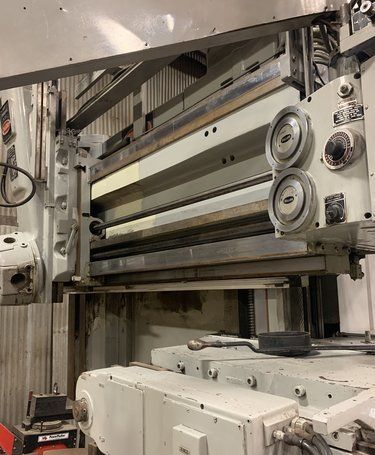

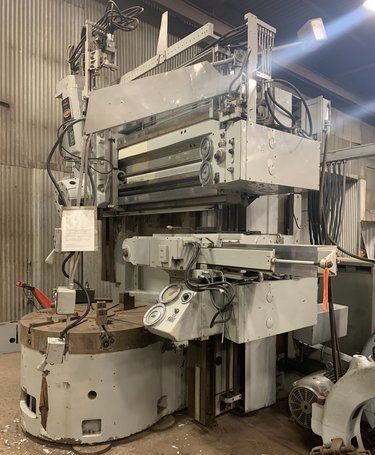

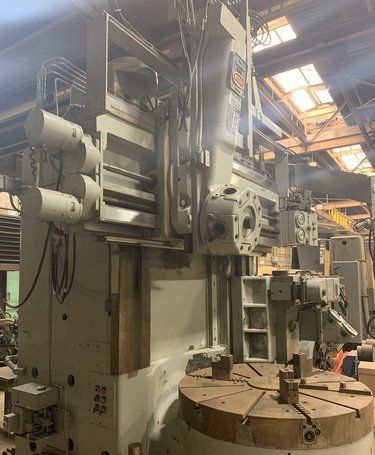

Available Machine # Ez39942 |
- Stock#:Ez39942
- Price:$29,900
- Year:N/A
- Region:United States
- Condition:Used
|
|

|

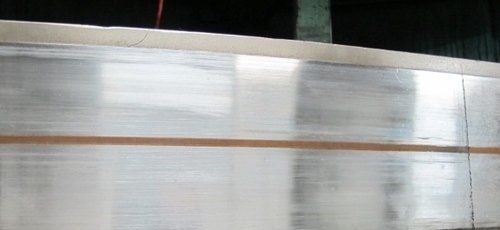

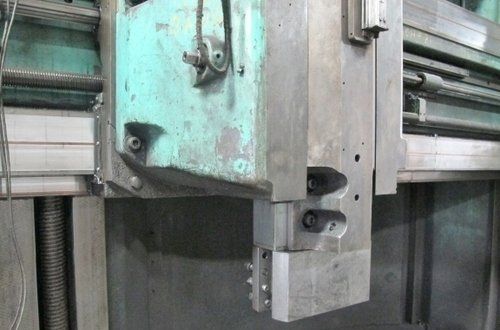

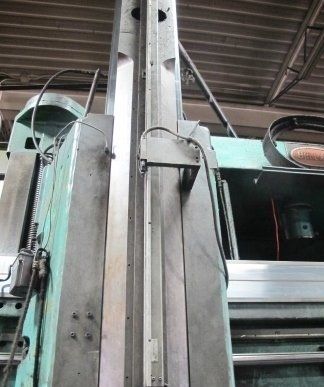

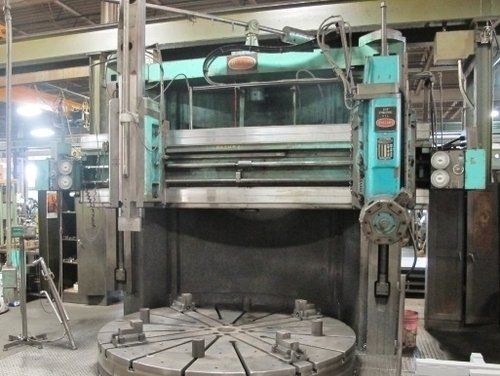

Available Machine # Ez25669 |
- Stock#:Ez25669
- Price:Call
- Year:N/A
- Region:United States
- Condition:Used
|
|

|
