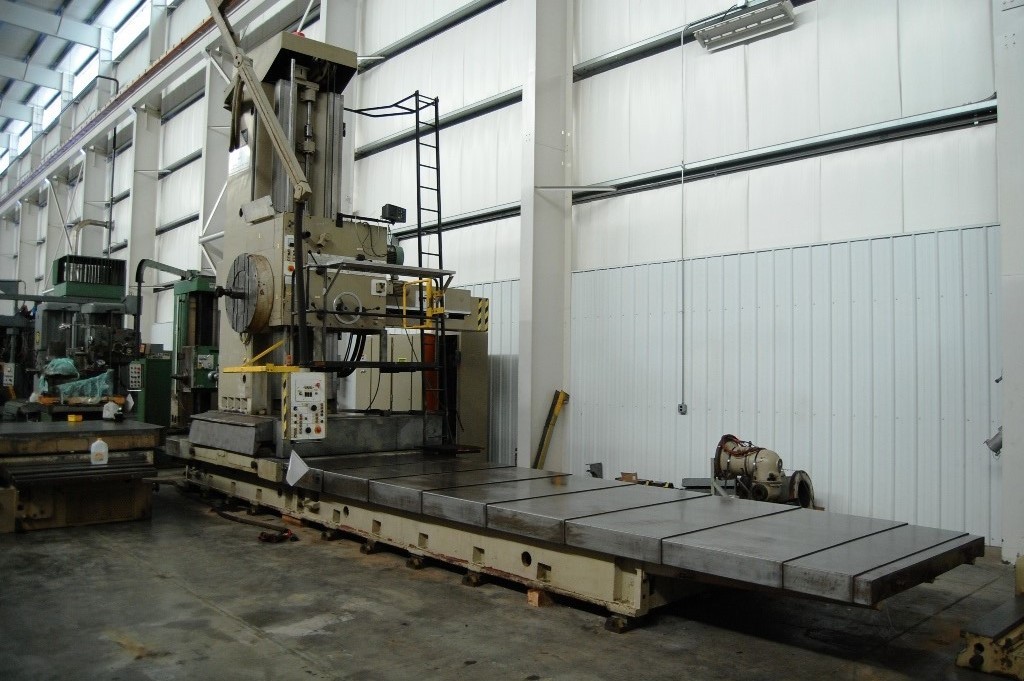

5 inch UNION BFP 130/6 FLOOR TYPE HORIZONTAL BORING MILL

Specifications

ModelBFP 130/6
BrandUNION
TypeVertical Machining Centers
RPM4.5 to 900 RPM
Power18.5 KW, 3/60/480V
Width170 inch
Height221 inch
Length35 inch
Weight27,000 lbs
catalogid4750
mfgUNION
mpnBFP 130/6
title5 inch UNION BFP 130/6 FLOOR TYPE HORIZONTAL BORING MILL

Zero? Available Machines

Available Machine # Ez14247

  • Stock#:Ez14247
  • Price:$89,500
  • Year:1980
  • Region:Northeast
  • Condition:Used

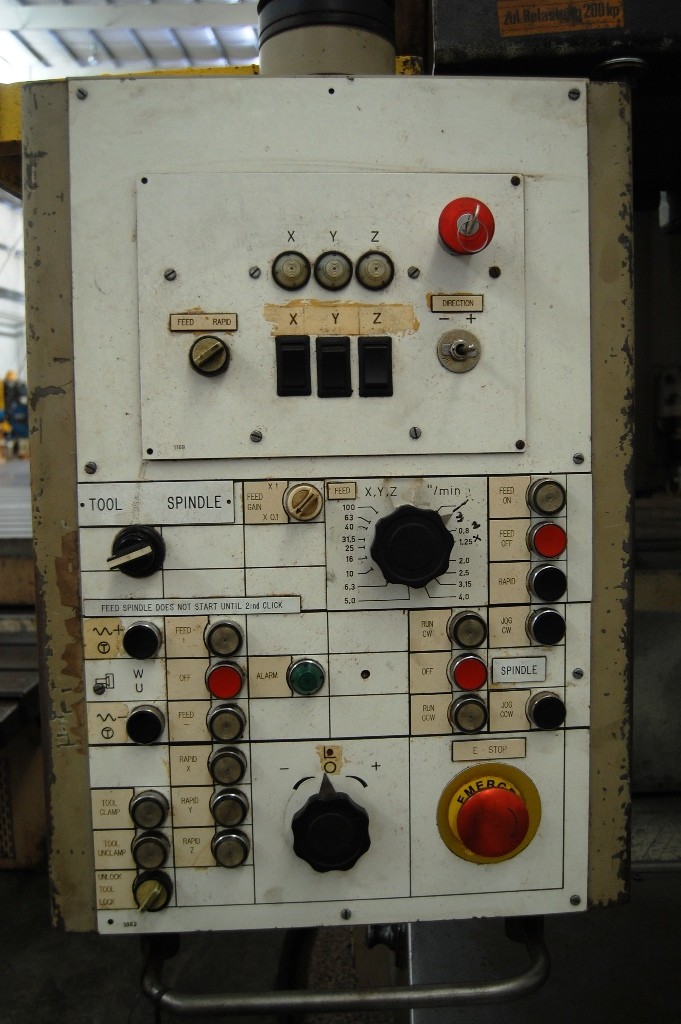

SPECIFICATIONS: Column Longitudinal Travel: 18' 3", Rack & Pinion Driven Head Vertical Travel: 98", Driven by Ball Screw & Fanuc Servo Motor Column Cross Travel: 15.7", Driven by Ball Screw & Fanuc Servo Motor Spindle Travel: 39" (27) Spindle Speeds: 4.5 to 900 RPM Spindle Taper: #50 with Power Draw Bolt Facing Plate Diameter: 34" (18) Facing Plate RPM: 4.5 to 180 RPM Spindle Feeds: .03 to 48 MM Per Rev., & .0016 to 2.00 TPR (36) Feeds to Head & Column: .024 to 78.7 IPM EQUIPPED WITH: Rapid Traverse Universal Right Angle Milling Head with 24-1/2" Long Extension Tailstock with 78" Power Vertical Travel & 39" Power Longitudinal Travel on the Base 3-Axs Acu Rite DRO: Head Vertical Travel, Column Cross Travel & Spindle Travel Pendant Control Sliding Metal Way Covers on the Bed Wedge Type Leveling Pads All Hard Ways NO Floor Plates with Machine Spindle Drive Motor: 18.5 KW, 3/60/480V Note: In 1989 Upgraded Ballscrews & Fanuc Servo Drive to the Head Vertical Travel & the Column Transverse Travel. SHIPPING SIZES: Bed & Column Base: 35' L x 104" W x 40" H x 27,000 Lbs. Head: 128" L x 49" W x 51" H x 11,000 Lbs. Column: 13' L x 48" W x 68" H x 12,500 Lbs. Tailstock: 92" L x 36" W x 124" H x 5,500 Lbs. Skid with Right Angle Attachment & Extension: 4' L x 40" W x 40" H x 1,250 Lbs. Overall Machine Assembled: 35' L x 170" W x 221" H
