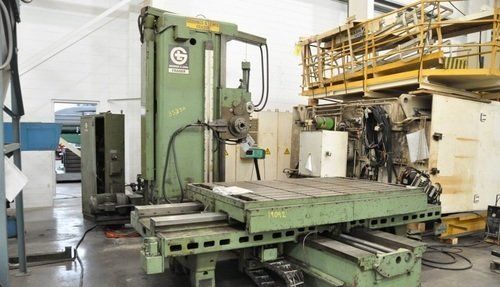

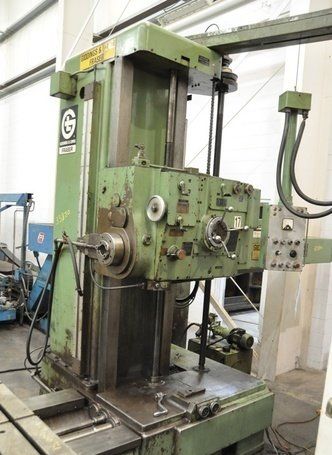

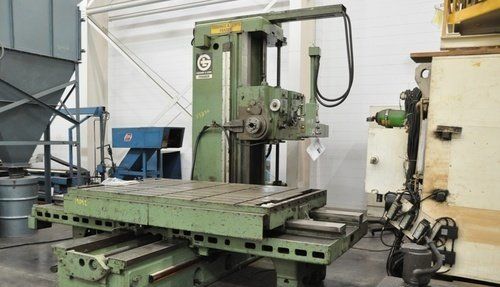

5 inch 70A-DP5-T Fraser GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL

Specifications

Model70A-DP5-T Fraser
BrandGIDDINGS & LEWIS
TypeHorizontal Machining Centers
catalogid5134
mfgGIDDINGS & LEWIS
mpn70A-DP5-T Fraser
title5 inch 70A-DP5-T Fraser GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL
joinSig

Zero? Available Machines

Available Machine # Ez16542

  • Stock#:Ez16542
  • Price:$39,500
  • Year:1970
  • Region:Northeast
  • Condition:Used

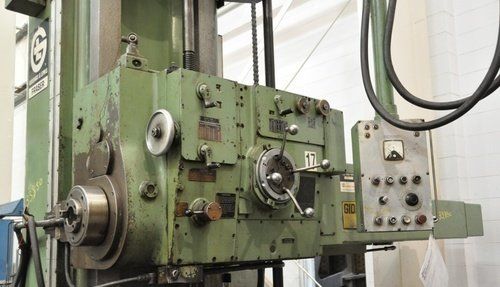

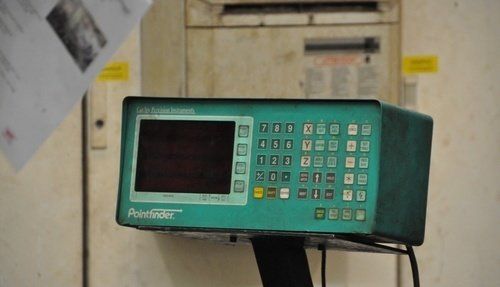

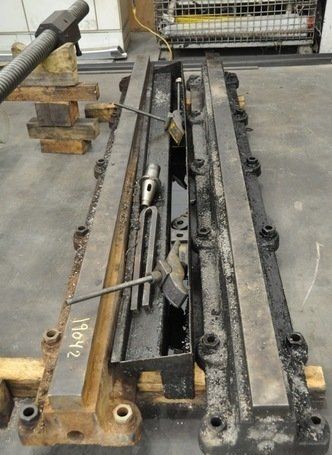

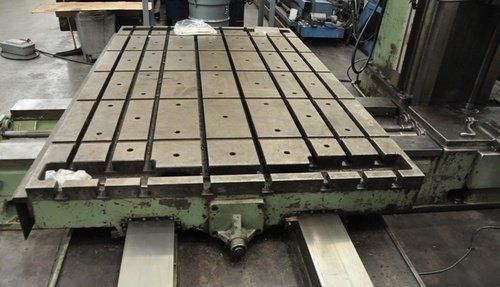

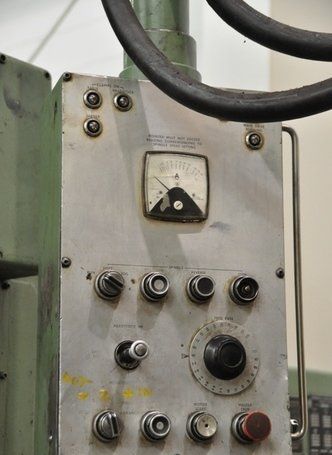

SPECIFICATIONS: Table Size: 60" x 98" Table Travel: 86" Saddle Travel: Approx. 60" Head Vertical Travel: 60" Spindle Diameter: 5" Spindle Travel: 33-1/2" (43) Spindle Speeds: 7.5 to 975 RPM (7) Speeds in High Range: 480 to 975 RPM Spindle Taper: #50 National Standard with Power Draw Bolt Spindle Feeds: Standard Range 0.005" to 0.260" IPR Spindle Feeds: High Range 0.002" to 0.120" IPR Milling Feeds: 0.04 to 120 IPM EQUIPPED WITH: G&L Right Angle Vertical Milling Head Model A, Serial No. 74-02-12 Vertical Head Taper #50 National Standard Vertical Head Reach 13-1/2", Also has 11" Long Extension for 24-1/2" Reach Vertical Head Rotates 360 Degrees Spindle Support Color, Adjustable Hard Replaceable Bed & Table Ways in Good Condition Soft Vertical Ways in Good Condition Pendant Control 3-Axis Acu-Rite Digital Readout, Model 200S 3XG Dual Coolant Pumps with Reservoir in Base of Machine Power Rapid Traverse and Clamping Each Axis Manual Spindle Clamping (1) Manual Axis Manual Crank Handle Machine Work Light (2) Floor Mounted Table Outrigger Supports 18.5 KW (25 HP) Main Motor, 3 Phase, 50 Cycle, 220 Delta/380/440Y Volts 1-1/2 HP Hydraulic Pump Motor, 3 Phase, 60 Cycle, 230/440 Volts 3/4 HP Power Tool Draw Bar Motor Overall Size of Machine Fully Assembled: 245" Long x 167" Wide x 140" High OVERALL SIZE OF COMPONENTS DISSEMBLED FOR TRUCKING Machine Base, Column and Head: 245" Long x 101" Wide x 140" high x 35,000 Lbs. Saddle and Table: 167" Long x 68" Wide x 39" high x ? Lbs. Floor Out Riggers (both): 112" Long x 29" wide x 8-3/4" High x ? Lbs. Skid with Vertical Head and Misc Parts: 40" x 48" x ? Lbs.
