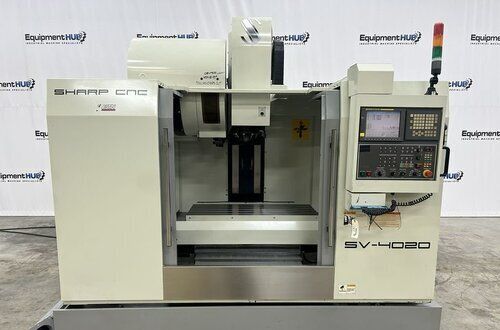

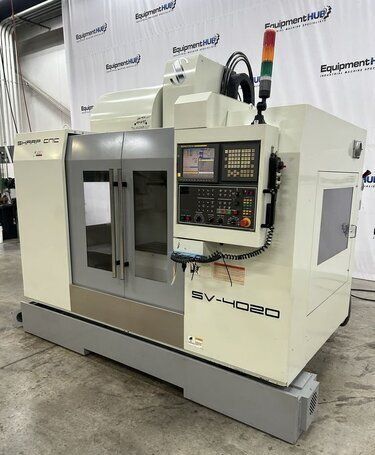

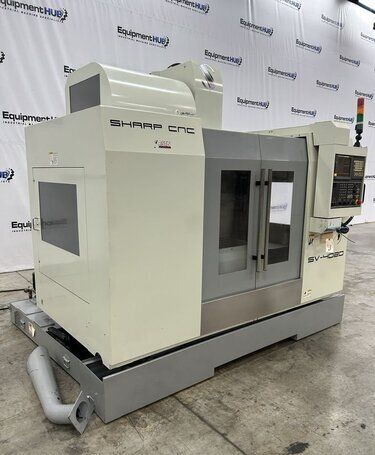

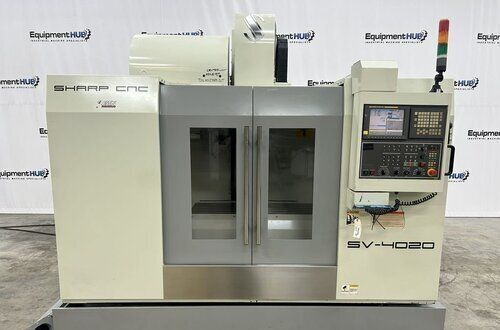

Sharp SV-4020 Vertical Machining Centers

Specifications

ModelSV-4020
BrandSHARP
TypeVertical Machining Centers

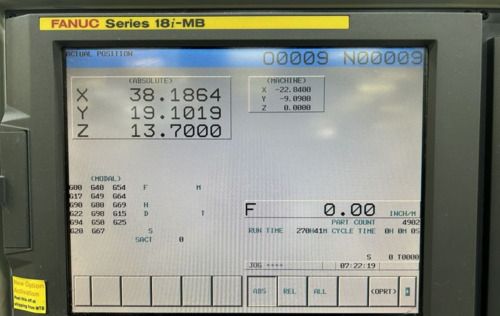

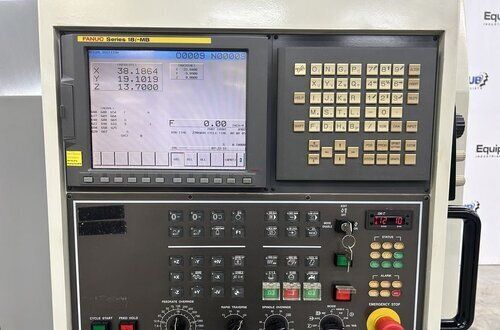

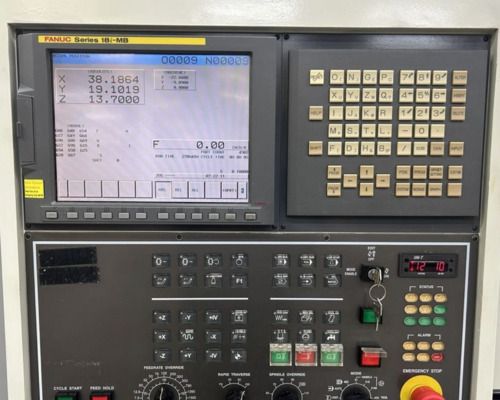

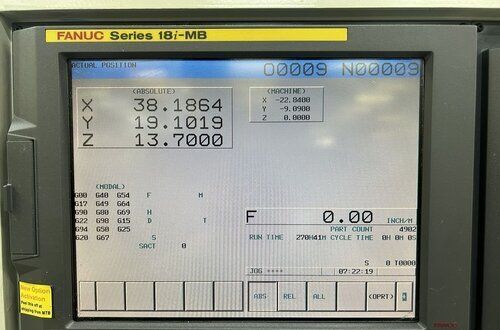

ControlCNC (FANUC 18i-MB CNC CONTROL)
X40 inch
Y20 inch
Z20 inch
Power20 HP
RPM10,000 RPM
ATC24
TableW19.6 inch
TableL24.8 inch
TaperCAT-40
Axis3
Dimensions103inchx133inchx102inch
Weight14,900 Lbs
Length142 inch
Width100 inch
Height102 inch
catalogid2044
mfgSHARP
mpnSV-4020
titleSharp SV-4020 Vertical Machining Centers

Zero? Available Machines

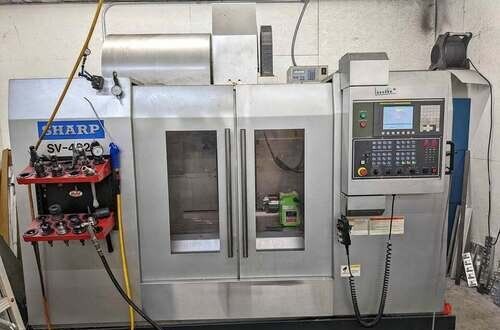

Available Machine # Ez14666

  • Stock#:Ez14666
  • Price:$38,000
  • Year:2008
  • Region:West
  • Condition:Used

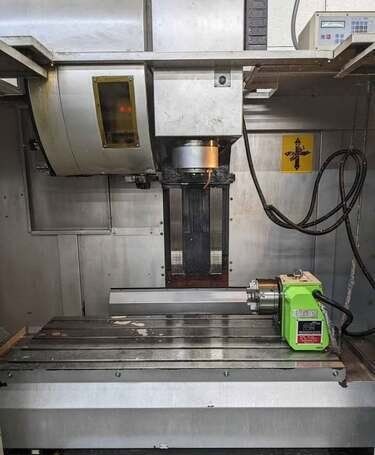

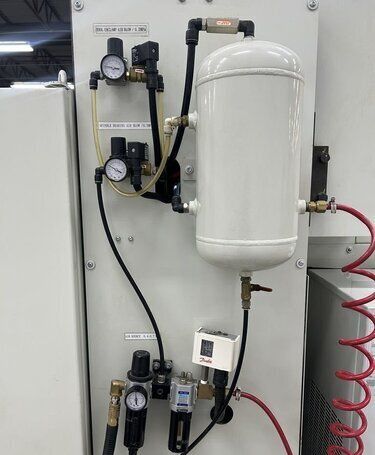

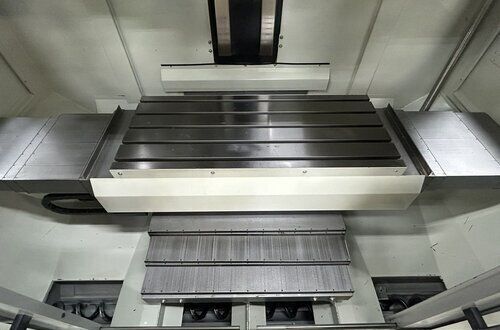

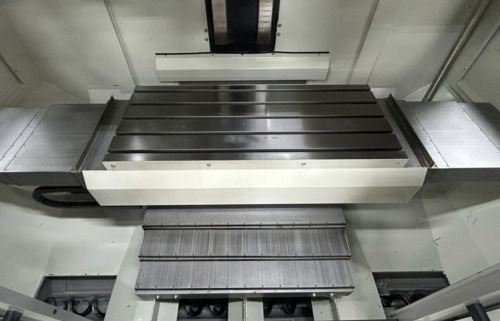

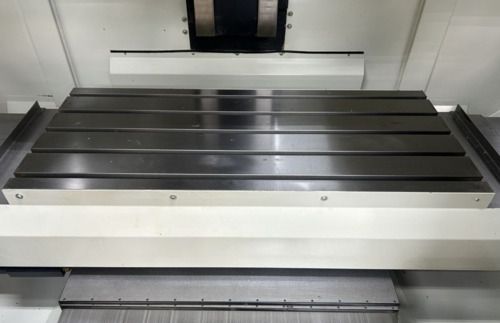

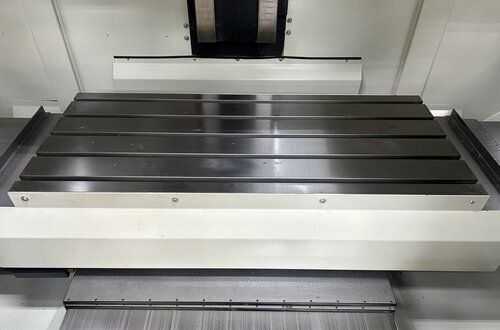

Specifications: Travels: X-Axis: 40" Y-Axis: 20" Z-Axis: 20" Spindle Nose to Table (Min.- Max.): 4.7" - 24.8 Table: Length: 45.3" Width: 19.7" Max Weight on Table: 2700 lbs Spindle: Taper Size: 40 Speed Range: 60 - 10,000 RPM Spindle Power: 20 HP Feed rates: Rapid X,Y & Z: 787 inch/P.M Cutting Feedrate: 493" inch/ P.M Automatic Tool Changer: 40 Taper Capacity: 24 Max Tool Weight: 17.6 lbs Max Tool Length: 9.1" Max Tool Dia.: 5.90" General: Air Required: 80 psi, 4 scfm Power: 205-220v / 66FLA / 3-Phase Overall Dimensions: 142" x 100" x 102" High Weight: 15900 lbs


Available Machine # Ez13019

  • Stock#:Ez13019
  • Price:Call
  • Year:2008
  • Region:West
  • Condition:Used

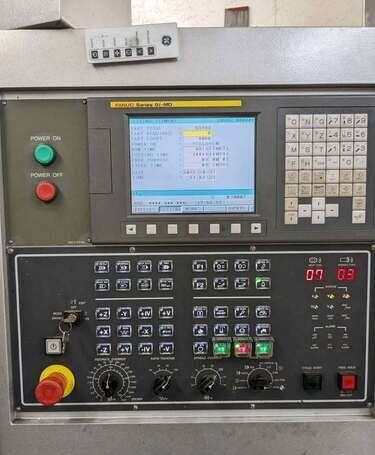

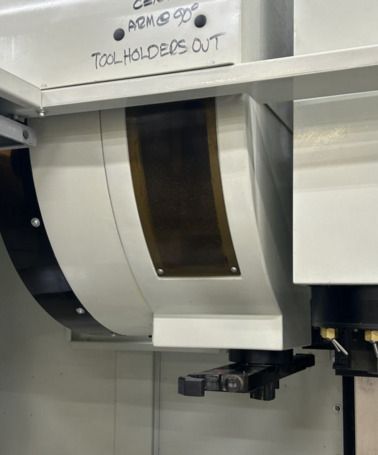

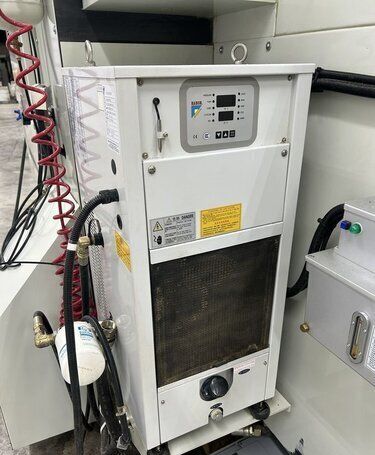

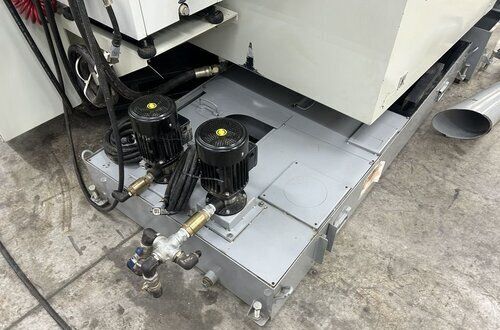

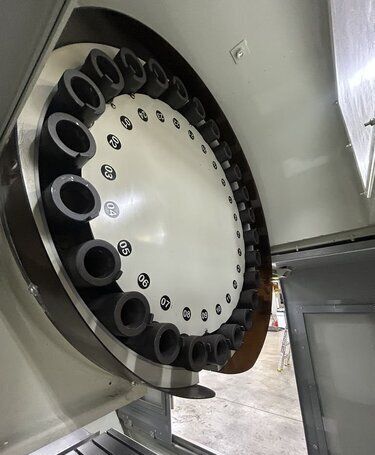

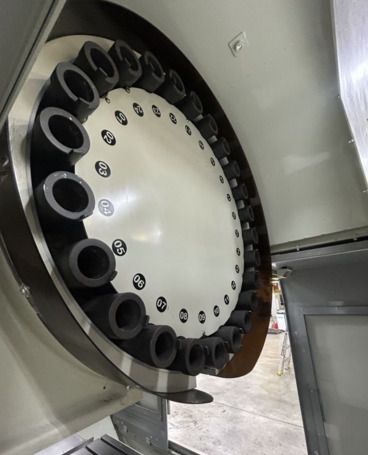

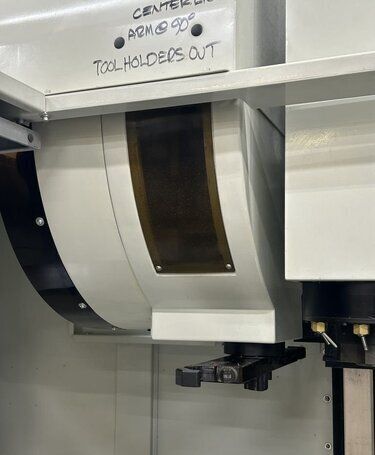

SHARP SV-4020 Specifications: Travels: X-Axis: 40" Y-Axis: 20" Z-Axis: 20" Spindle Nose to Table (Min.- Max.): 4.7" - 24.8 Table: Length: 45.3" Width: 19.7" Max Weight on Table: 2700 lbs Spindle: Taper Size: 40 Speed Range: 60 - 10,000 RPM Spindle Power: 20 HP Feed rates: Rapid X,Y & Z: 787 inch/P.M Cutting Feedrate: 493" inch/ P.M Automatic Tool Changer: 40 Taper Capacity: 24 Max Tool Weight: 17.6 lbs Max Tool Length: 9.1" Max Tool Dia.: 5.90" General: Air Required: 80 psi, 4 scfm Power: 205-220v / 66FLA / 3-Phase Overall Dimensions: 142" x 100" x 102" High Weight: 15900 lbs SHARP SV-4020 Features: Fanuc 0i-MC CNC Control 4th Axis Ready ( Drive and Wiring Installed ) 24 Tools Side Mount Bidirectional Tool Changer High precision 10,000 RPM Spindle PCMCIA Card Slot Box Way Construction All Axis Powerful 20 hp high torque spindle motor Spindle Chiller Spindle Orientation Rigid Tapping Custom Micro B (User Definable) Fast Rapid Traverse Rate Flood coolant with large separate coolant tank Chip Auger Work light Books and Manuals
