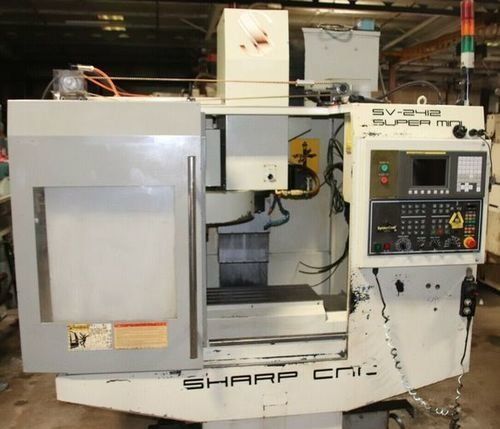

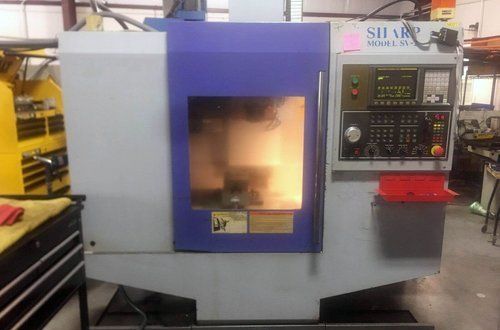

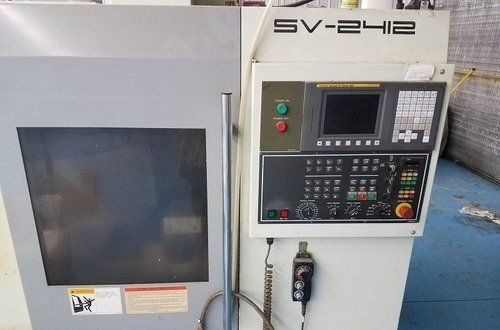

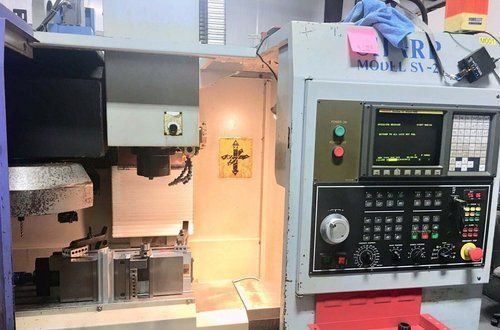

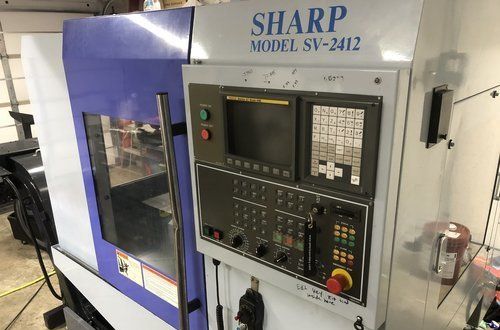

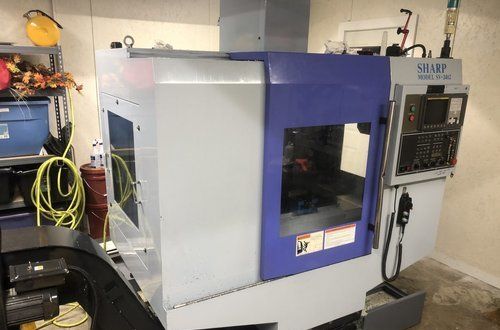

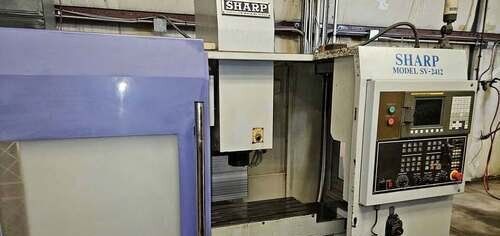

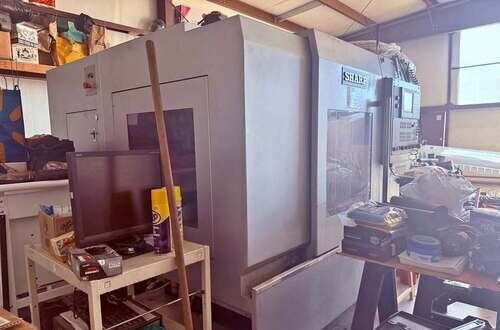

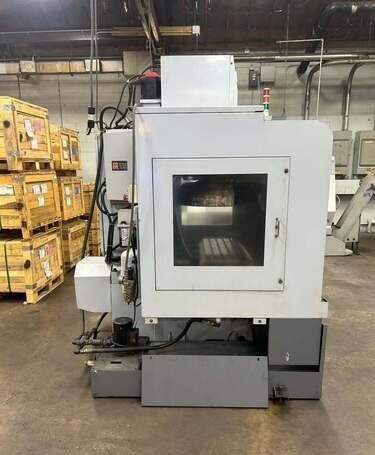

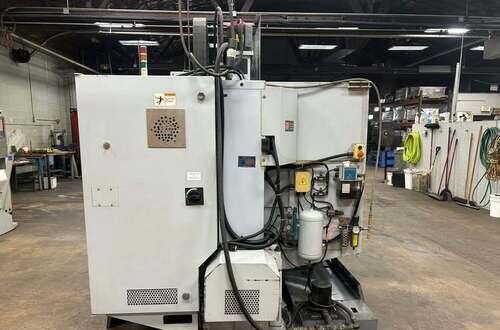

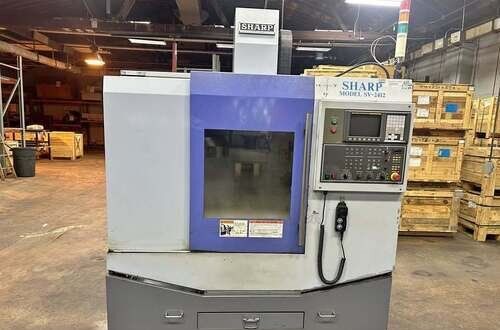

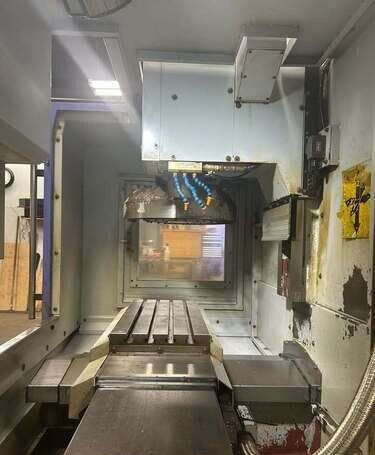

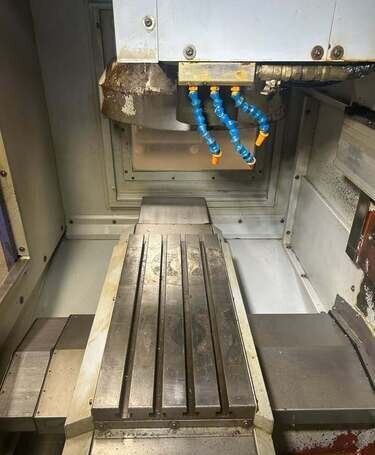

Sharp SV-2412 Vertical Machining Centers

Specifications

ModelSV-2412
BrandSHARP
TypeVertical Machining Centers
ControlCNC (Fanuc OiMC)
X24 inch
Y12 inch
Z18 inch
Power7.5 hp
RPM8000 rpm
ATC10

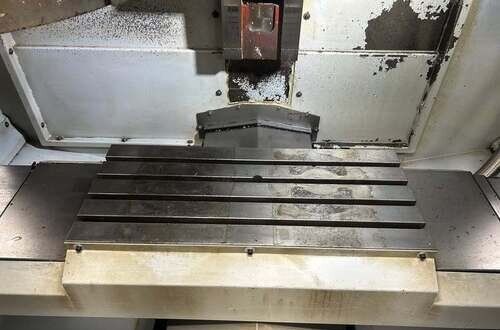

TableW12 inch
TableL27.5 inch
Dimensions74inchx78inchx92inch
Weight6,100 Lbs
TaperCT40
Length74 inch
Width78 inch
Height92 inch
Axis3
catalogid565
mfgSHARP
mpnSV-2412
titleSharp SV-2412 Vertical Machining Centers

Zero? Available Machines

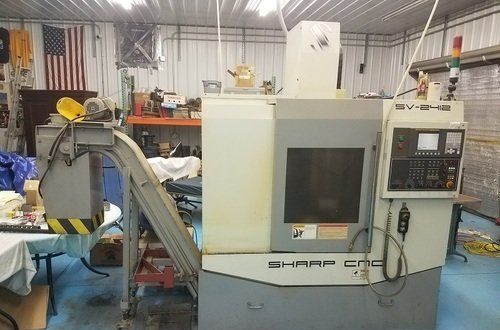

Available Machine # Ez6673

  • Stock#:Ez6673
  • Price:$19,500
  • Year:2004
  • Region:Midwest
  • Condition:Used

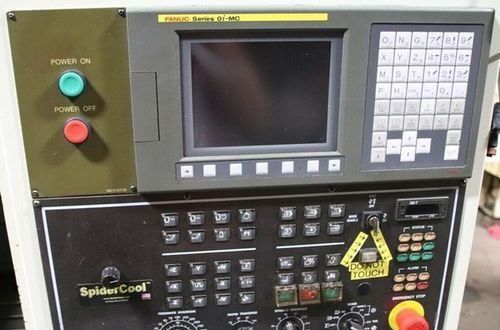

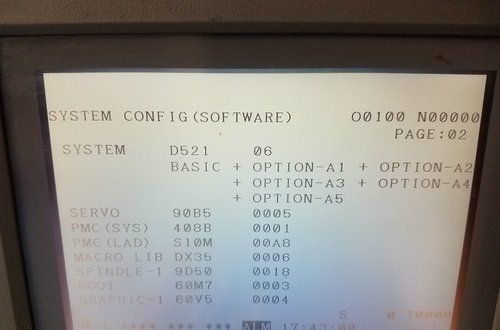

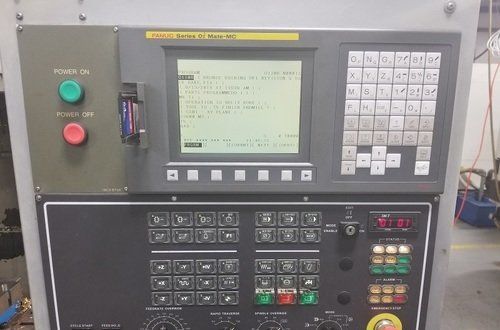

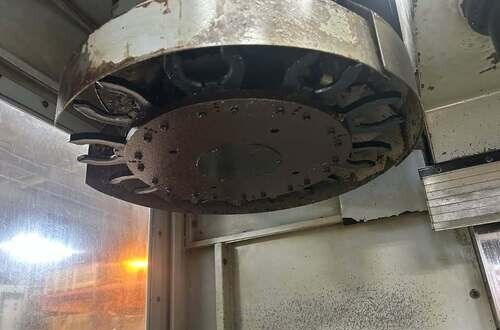

Fanuc Oi Mate 3-Axis Control, 10 ATC, BT#40 Spindle Taper, Coolant

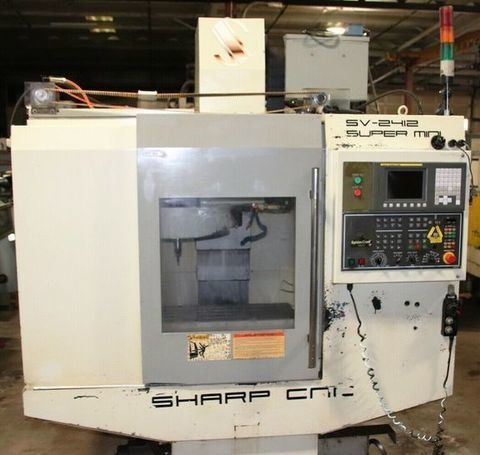

Available Machine # Ez19432

  • Stock#:Ez19432
  • Price:$22,500
  • Year:2005
  • Region:South
  • Condition:Used

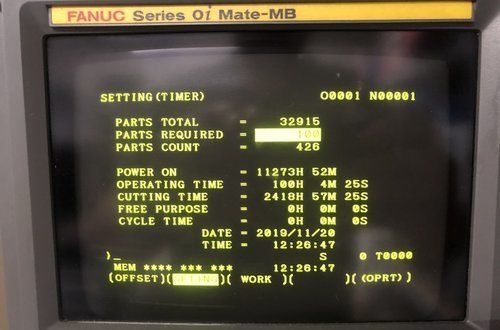

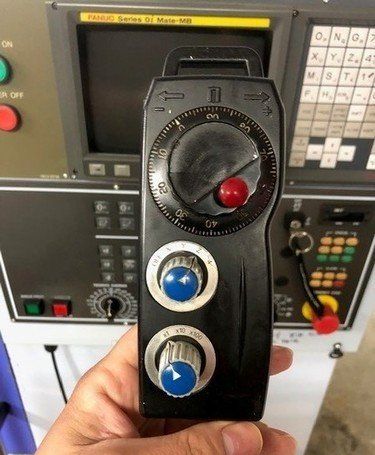

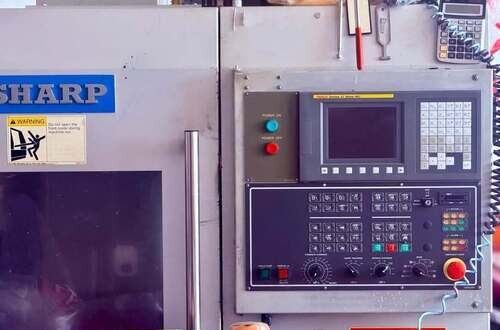

2005 SHARP SV-2412 Travel: X-Axis 24" Y-Axis 12" Z-Axis 18" Table Size 27.5" x 12" Spindle Speed 8000 RPM Spindle Taper Cat 40 Spindle Nose to Table Top 2.8" - 20.8" Spindle Motor 10 HP Tools 10 Table Load Capacity 770 lbs. Rapid Traverse Rates 1181 IPM Max Tool Diameter 4.3" Max Tool Length 9.1" Max Tool Weight 17 lbs. Machine Dimensions (L x W x H) 73" x 72" x94" Machine Weight 5900 lbs. FEATURES: FANUC 0i Mate-MB CNC CONTROL 10 Tool Magazine Remote Manual Pulse Generator Three Color Tower Light

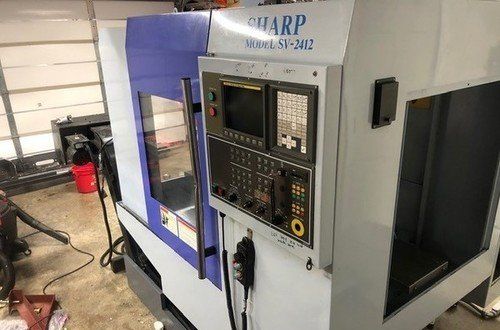

Available Machine # Ez18126

  • Stock#:Ez18126
  • Price:$34,500
  • Year:2010
  • Region:South
  • Condition:Used

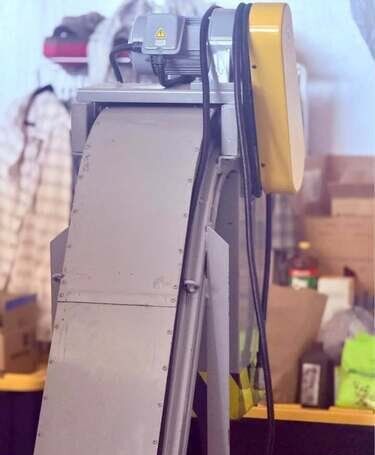

Product Details: Machine Dimensions (L x W x H) 73" x 79" x 92"Machine Weight 6600 lbs.Max Tool Diameter 3.9"Max Tool Length 13"Max Tool Weight 17 lbs.Rapid Traverse Rates (X & Y / Z) 787 / 708 IPMSpindle Motor 15 / 10 HPSpindle Nose to Table Top 2.8" - 20.8"Spindle Speed 8000 RPMTable Load Capacity 850 lbs.Table Size 27.5" x 12"Tools 16X-Axis 24"Y-Axis 12"Z-Axis 18" Features: FANUC 0i Series CNC CONTROL 9" Color LCD PC/MCIA Interface Chip Conveyor (Left Side Exit) 10 Tool Magazine Remote Jog Handle Three Color Tower Light
