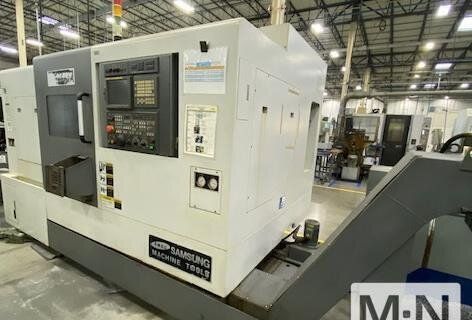

Samsung SL 25asy 5-Axis or More CNC Lathe

Specifications

ModelSL 25ASY
BrandSAMSUNG
Type5-Axis or More CNC Lathes
ControlCNC (Fanuc 0i-TD)
Axis6
ChuckSize8 inch
BarCapacity2.6 inch
Power20 HP
MaxRPM4000 RPM
TurningDia14.1 inch
Swing25.6 inch
MachiningLength20.5 inch
TailstockYesNoNo
Dimensions188x76inch
Weight12,800 lbs
Length188 inch
Width76 inch
catalogid1877
mfgSAMSUNG
mpnSL 25ASY
titleSamsung SL 25asy 5-Axis or More CNC Lathe

Zero? Available Machines

Available Machine # Ez9689

  • Stock#:Ez9689
  • Price:Call
  • Year:2013
  • Region:Midwest
  • Condition:Used
Chuck Size 8 " Bar Capacity 2.6 " # Axis 4 Power 20 hp Max RPM 4000 rpm Turning Dia 14.1 " Swing 25.6 " Machining Length 20.5 " Tailstock No Dimensions 188x76" Weight 12800 (LBS) Control CNC (FANUC 0I-TD) 8" Chuck Samsung Model SL-25ASY Sub-Spindle/Live Tool/Y-Axis CNC Turning Center (2013)


Available Machine # Ez6182

  • Stock#:Ez6182
  • Price:$98,000
  • Year:2013
  • Region:Midwest
  • Condition:Used
Specifications: SWING OVER BED 25.59" SWING OVER CROSS SLIDE 21.26" MAIN CHUCK 8" ( 3 JAW ) MAIN SPINDLE NOSE A2-6 MAIN SPINDLE MOTOR 15/20 HP MAIN SPINDLE SPEED 4,000 RPM MAIN SPINDLE BAR CAPACITY 2.6" SUB SPINDLE CHUCK 6" ( 3-JAW ) SUB SPINDLE NOSE A2-5 SUB SPINDLE MOTOR 7.5/10 HP SUB SPINDLE SPEED 6,000 RPM SUB SPINDLE BAR CAPACITY 1.42" X-AXIS TRAVE 9.25" Y-AXIS TRAVEL 3.94" Z-AXIS TRAVEL 22.83" RAPID TRAVERSE (X/Y/Z) 709/472/945 IPM TOOL CAPACITY 12 STATION LIVE TOOL SPEED 5,000 RPM LIVE TOOL MOTOR 7.5 HP Equipped With: FANUC 0iT-D CNC CONTROL TOOL PRESETTER CHIP CONVEYOR EDGE SERVO REBEL 65 SHORT BAR LOADER C-AXIS SUB-SPINDLE ALL AVAILABLE MANUALS (2) Z-Axis Live Tool Holders and (2) X-Axis Live Tool Holders Included


Available Machine # Ez2919

  • Stock#:Ez2919
  • Price:$99,900
  • Year:2013
  • Region:Midwest
  • Condition:Used
FANUC 0iT-D CNC CONTROL TOOL PRESETTER CHIP CONVEYOR EDGE SERVO REBEL 65 SHORT BAR LOADER C-AXIS SUB-SPINDLE ALL AVAILABLE MANUALS
