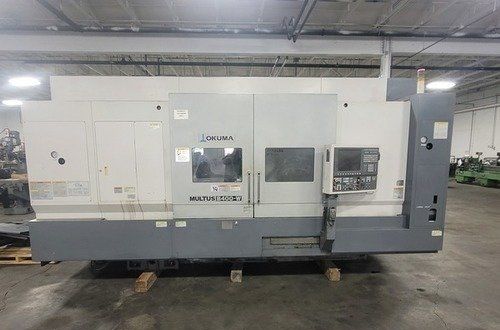

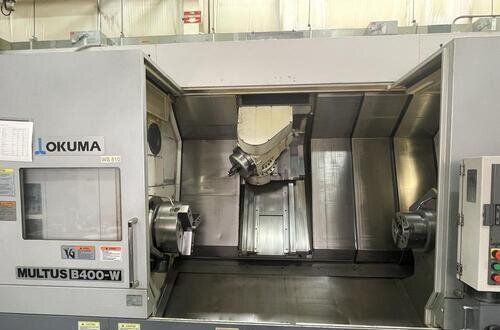

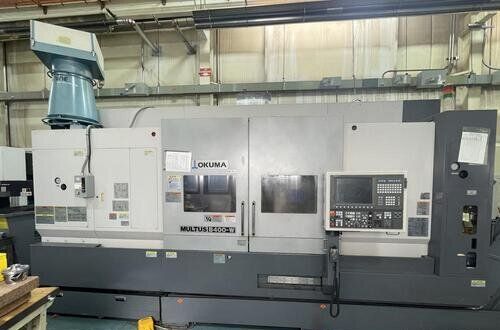

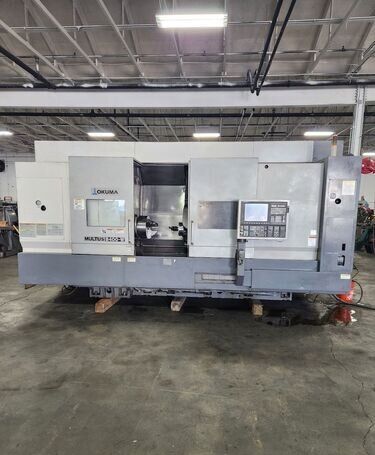

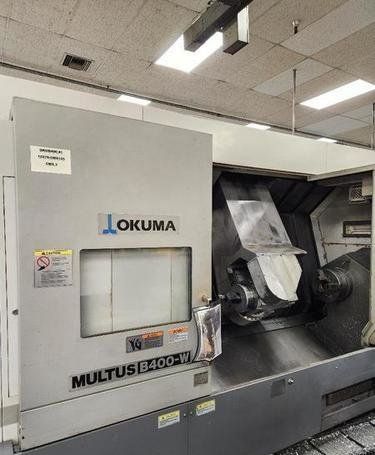

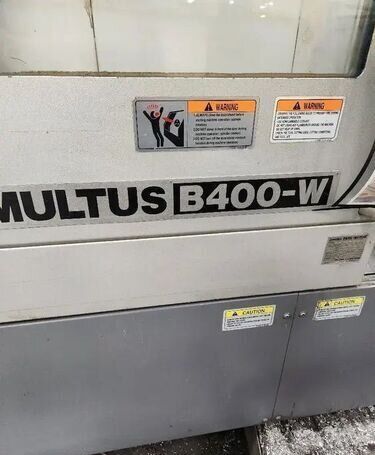

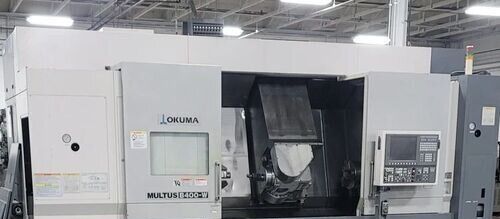

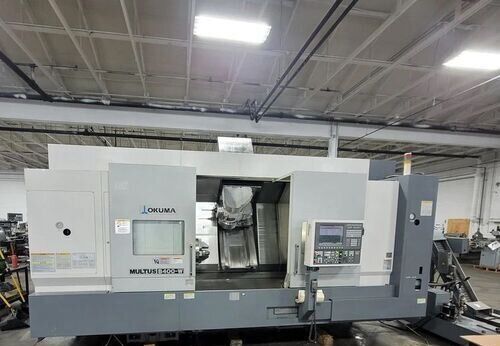

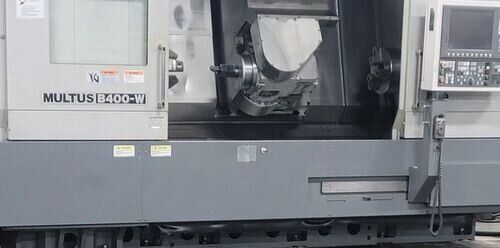

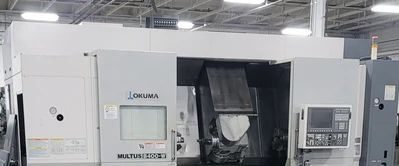

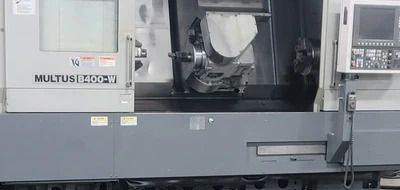

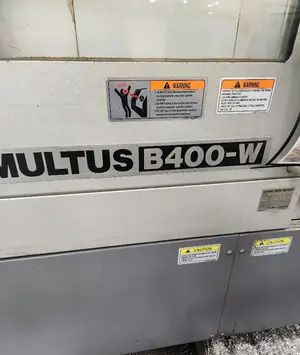

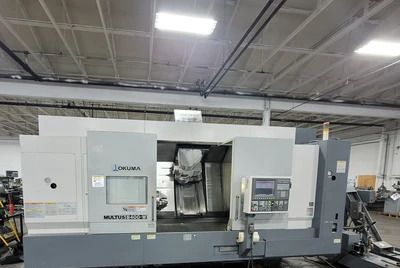

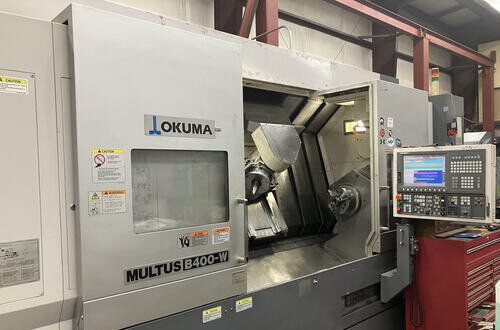

Okuma Multus B400-W 5-Axis or More CNC Lathes

Specifications

ModelMULTUS B400-W
BrandOKUMA
Type5-Axis or More CNC Lathes

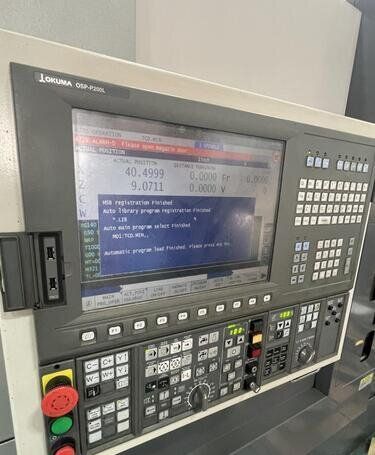

ControlCNC (OSP-200L)
Axis8

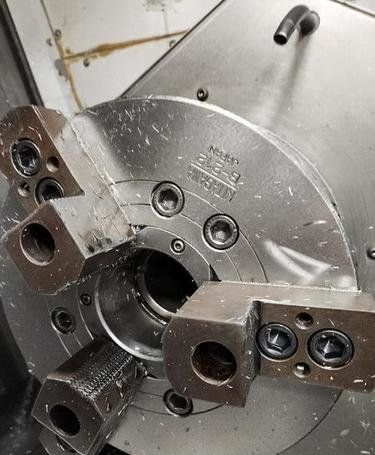

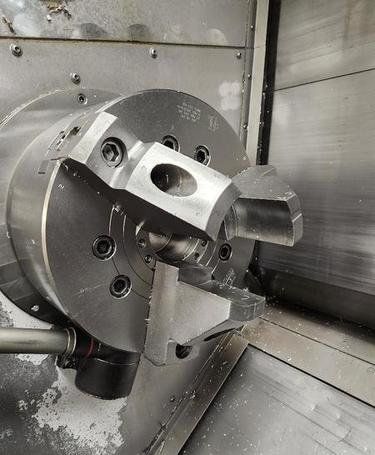

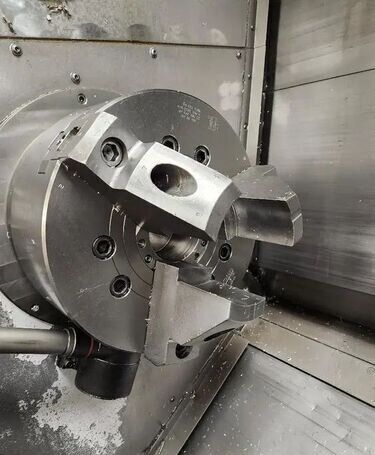

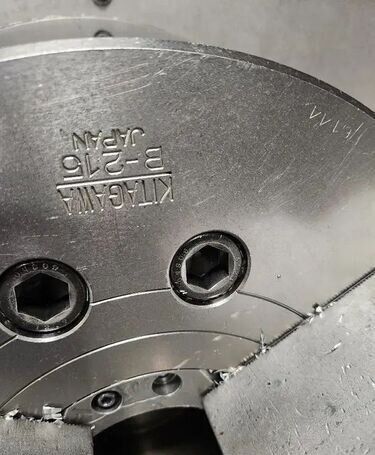

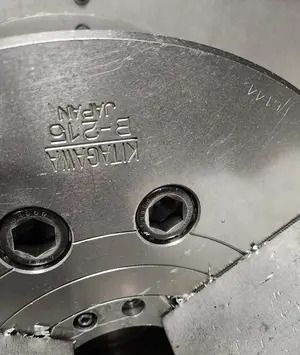

ChuckSize15 inch
BarCapacity4 inch
Power40 hp
MaxRPM10000 rpm
TurningDia27.9 inch
Swing27.9 inch
MachiningLength61 inch
TailstockYesNoNo
Weight37,200 Lbs.
catalogid1876
mfgOKUMA
mpnMULTUS B400-W
titleOkuma Multus B400-W 5-Axis or More CNC Lathes

Zero? Available Machines

Available Machine # Ez13282

  • Stock#:Ez13282
  • Price:Call
  • Year:2008
  • Region:Midwest
  • Condition:Used

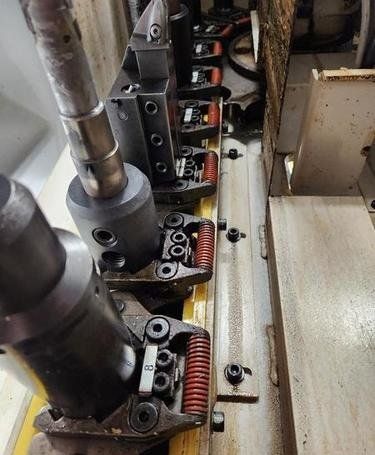

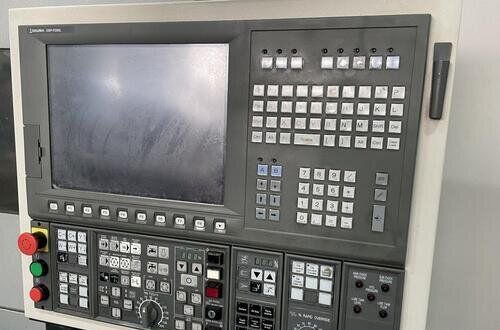

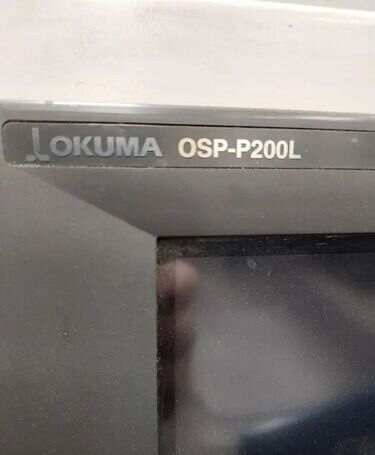

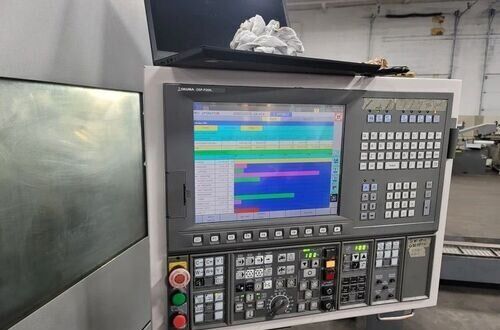

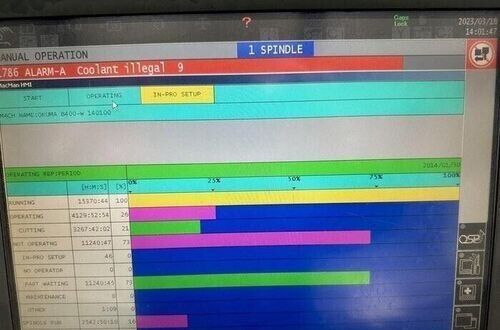

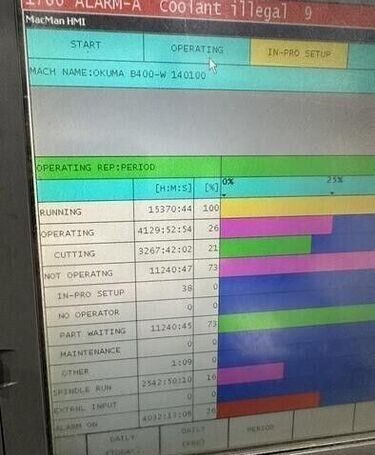

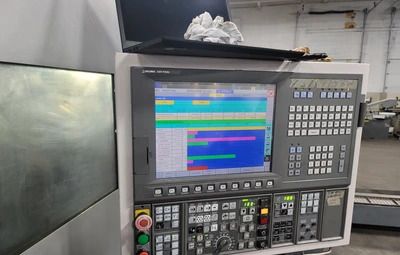

Approximate Hours as of July 2017: Machine On: 19,500 Hours Spindle Time: 4,500 Hours Cutting Time: 3,500 Hours Specifications: Swing Over Bed 27.95" Distance Between Centers 59.06" Maximum Turning Diameter 27.95" Maximum Work Piece Weight (Incl. Chuck Wgt.) Main Spindle, One Side Support 770 LBS Main Spindle, Support Between Centers 1,320 LBS Sub-Spindle, One-Side Support 396 LBS Main Spindle Nose A2-11 Main Spidle Speeds 2800 RPM Opposing Spindle Nose A2-11 Opposing Spindle Speeds 2800 RPM Z-Axis Travel 60.83" Z-Axis Rapid Traverse 1574 IPM W-Axis Travel 61.02" W-Axis Rapid Traverse 787 IPM X-Axis Travel 27.17" X-Axis Rapid Traverse 1574 IPM Y-Axis Travel -4.53" - +4.53" Y-Axis Rapid Traverse 1023 IPM C-Axis Indexing .001 Deg. C-Axis Rapid Traverse 200 min-1 B-Axis Index Angle -30 to 195 Deg B-Axis Index Incremental Angle .001 Deg B-Axis Rapid Traverse 200 min-1 Number of Tool Stations in Automatic Tool Changer 80 ATC Magazine Tool Shank CAPTO-C6 Rotary Tool Speeds 10,000 RPM Approximate Machine Weight 35,000 LBS Equipped With: OSP P200L CNC Control ABSO Scales for X Y Z 80 Tool Automatic Tool Changer CAPTO C6 Auto Door Both with Dual cycle start Auto Gauging, Renishaw LP2 Auto Zero Offset Quick Six LNS Automatic Bar Load System Bar-Feeder interface Caron TMAC Caron TMAC7 interface Caron Auto Comp C-Axis Auto Zero Offset Function Conveyor Hinge with side discharge Coolant Level Check Extra Common Variables 1000 sets Extra Program Select Push Button 1/0 Variable, User Task II Gauging Data Printout Rapid Traverse override Robot/ Loader interface Type D Parts Catcher Shower Coolant B Type M-Codes 8 Spare Spindle RPM 10,000 H1 Splash Gun Thru Spindle Coolant 1000 psi with Chip Blaster Chip Blaster Interface Tool Offset 200 Sets Tool Retract Function Touch Setter Automatic Work Pusher F/H1 Turret Y-Axis Gauging Z-Axis Auto Zero Offset Function SMW Quick Jaw Change Chucks
