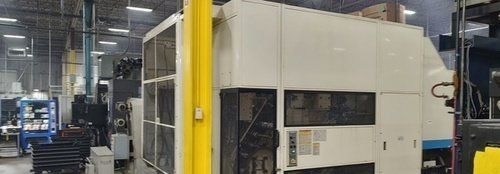

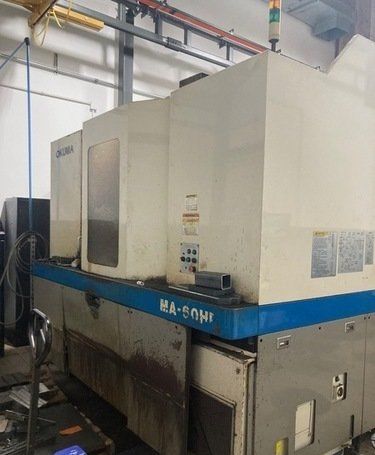

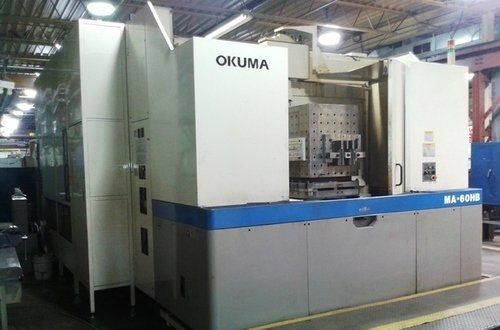

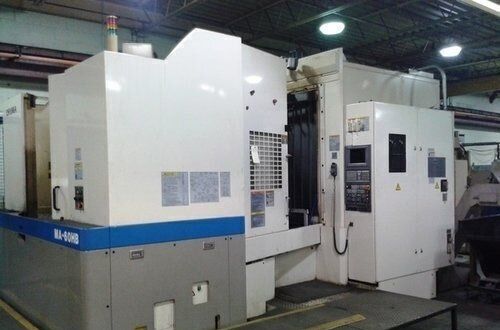

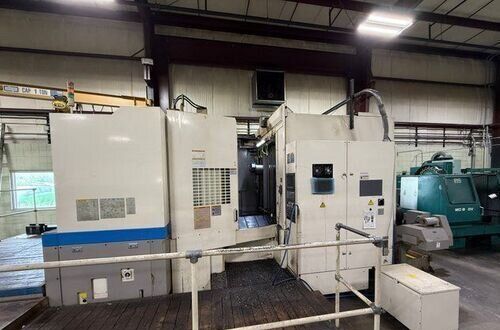

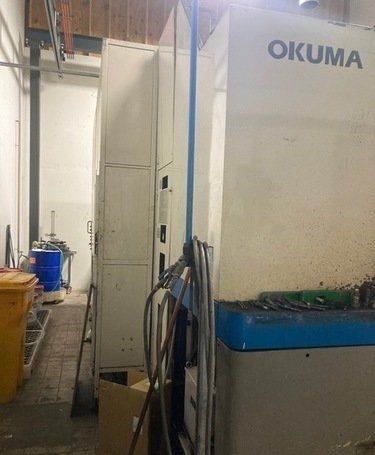

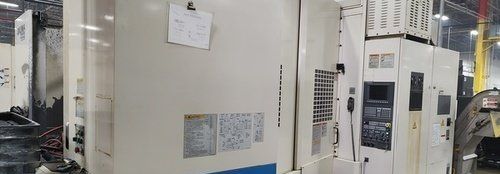

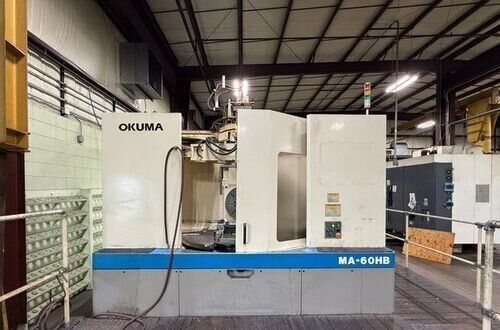

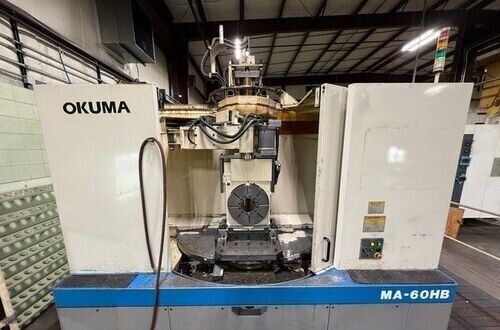

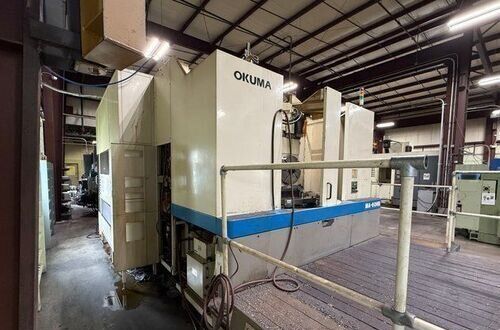

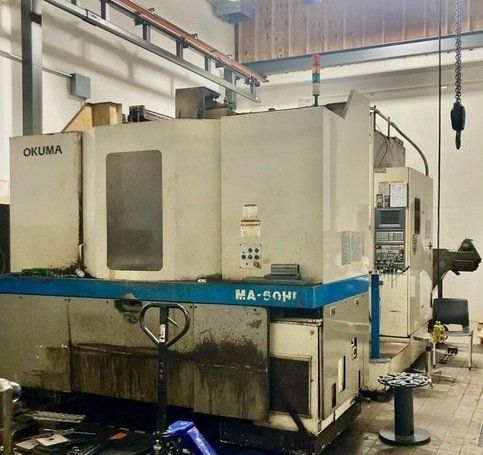

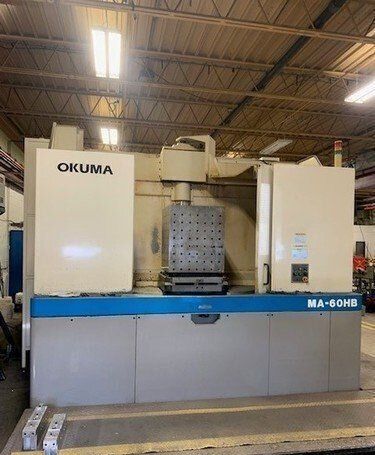

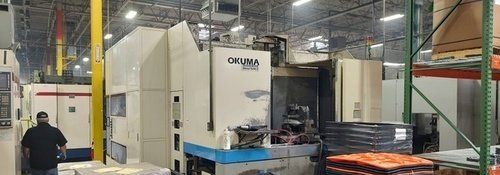

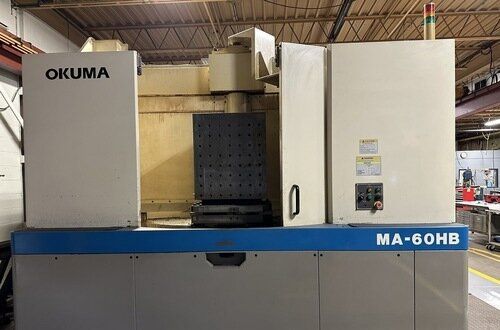

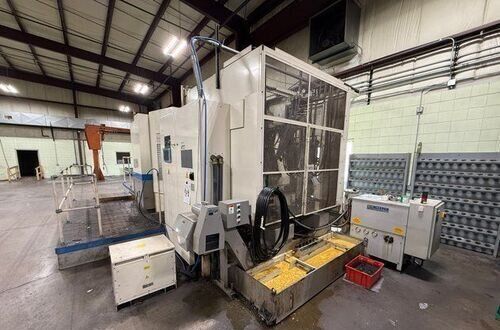

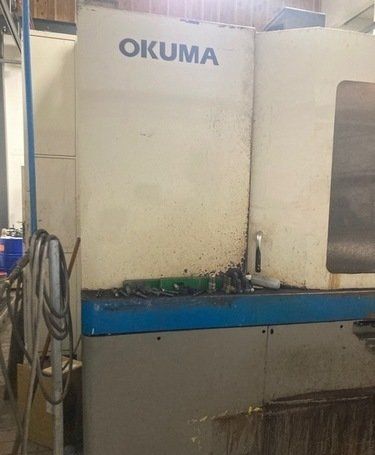

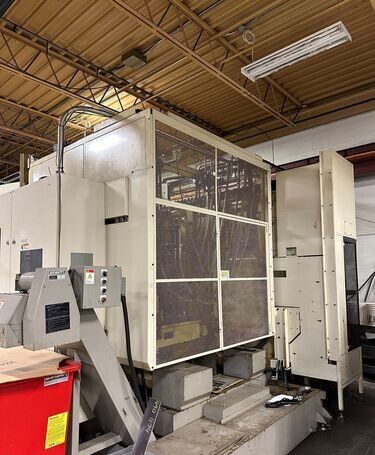

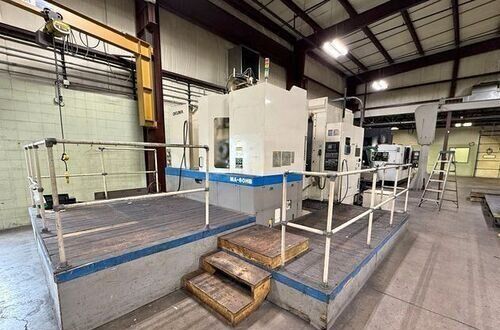

Okuma MA-60HB Horizontal Machining Centers

Specifications

ModelMA-60HB
BrandOKUMA
TypeHorizontal Machining Centers

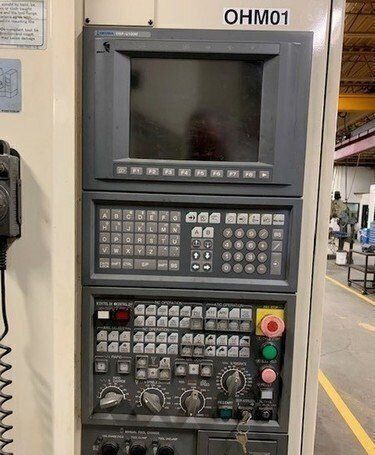

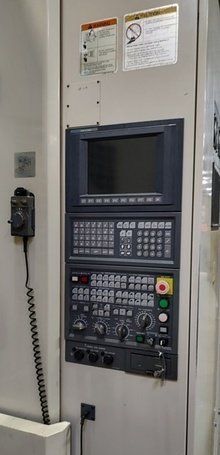

ControlCNC (OSP-U100M)
X39.4 inch
Y31.5 inch
Z31.8 inch
Power50 HP
RPM5000 RPM
ATC60
PalletW24.8 inch
PalletL24.8 inch
Taper50
Dimensions235 x 136 x 130
Weight57000 Lbs
Length244 inch
Width133 inch
catalogid947
mfgOKUMA
mpnMA-60HB
titleOkuma MA-60HB Horizontal Machining Centers

Zero? Available Machines

Available Machine # Ez4739

  • Stock#:Ez4739
  • Price:$62,000
  • Year:2000
  • Region:Midwest
  • Condition:Used

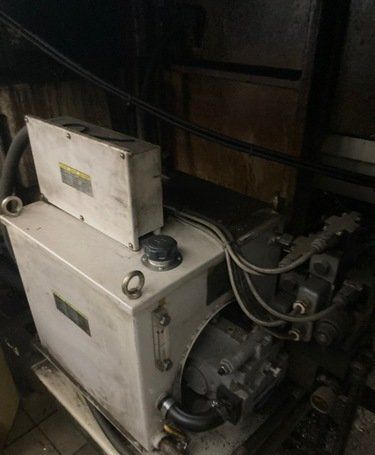

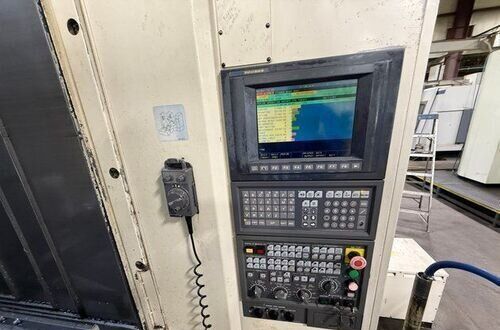

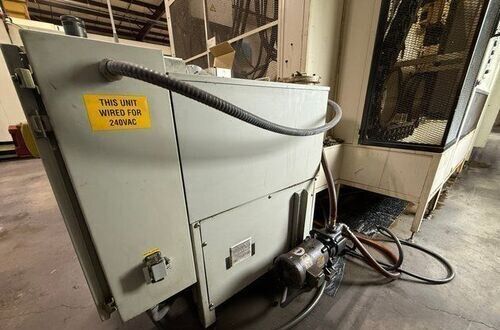

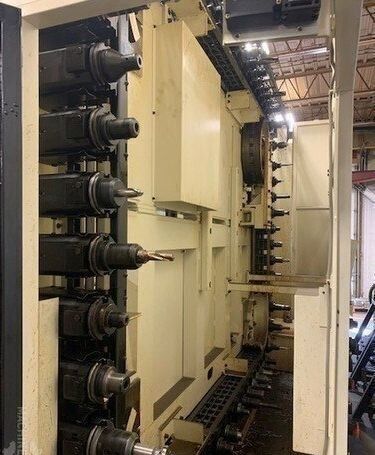

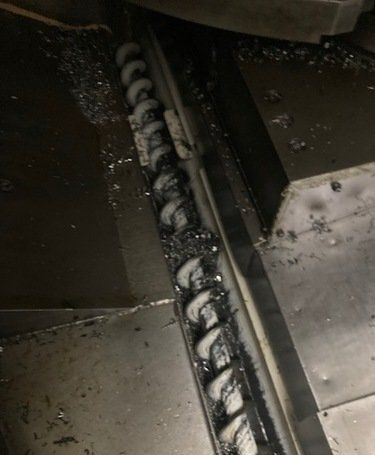

Specifications: Control OSP U100M Pallet Size 632.46mm (24.9") Max Pallet Load 2640 Lbs Pallet Index Time 2.0 Sec X-Axis Travel 39.37" Y-Axis Travel 35.43" Z-Axis Travel 39.37" 4th Axis 1° Indexing Spindle Motor 50 HP Spindle Speed 5,000 RPM Spindle Torque 210 ft lbs Spindle Taper 50 Rapids 1574 IPM Tool Changer 60 Position ATC Machine Weight 57,200 lbs Rough Floor Space 244"x133"' Equipped With: Okuma OSP U100M Control High Pressure Coolant Chip Conveyor Oil Chiller Glass Scales 60 Station ATC
