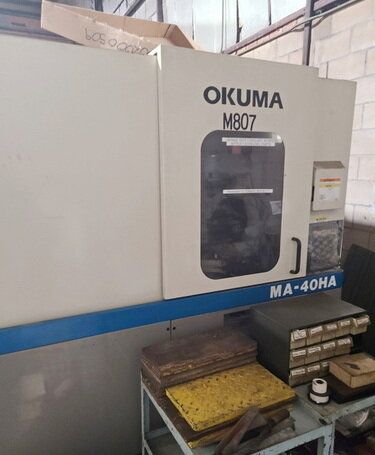

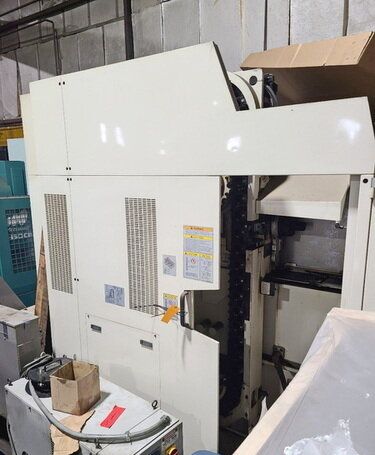

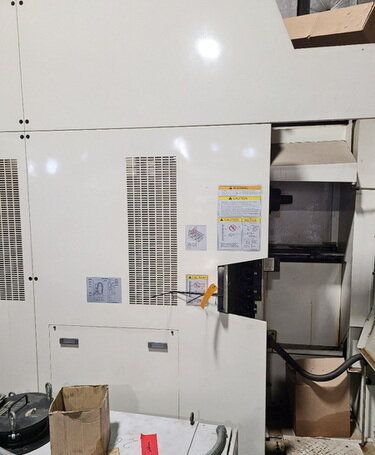

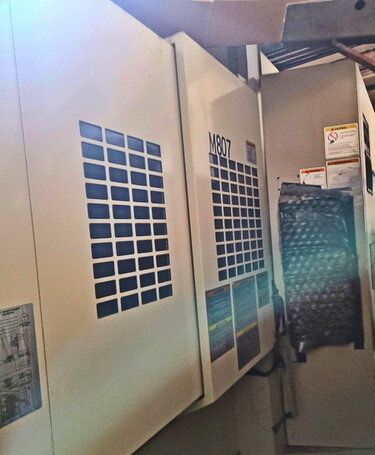

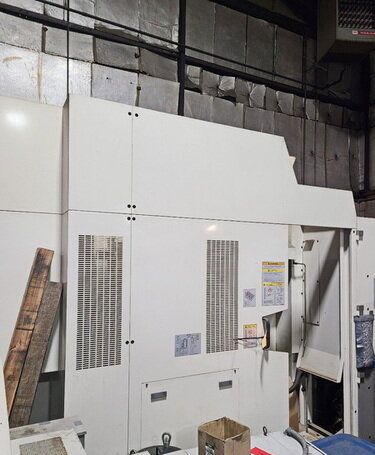

Okuma MA-40HA Horizontal Machining Center

Specifications

ModelMA-40HA
BrandOKUMA
TypeHorizontal Machining Centers
ControlCNC (Okuma OSP-U100M CNC)
X22.06 inch
Y25.43 inch
Z24.61 inch
Power20 hp
RPM12000 rpm
PalletW15.75 inch
PalletL15.75 inch
TaperCAT 40
Weight25,080 lbs.
Length178.4"
Width95"
Height108.62"
ATC30
catalogid943
mfgOKUMA
mpnMA-40HA
titleOkuma MA-40HA Horizontal Machining Center

Zero? Available Machines

Available Machine # Ez1345

  • Stock#:Ez1345
  • Price:$39,500
  • Year:2003
  • Region:South
  • Condition:Used

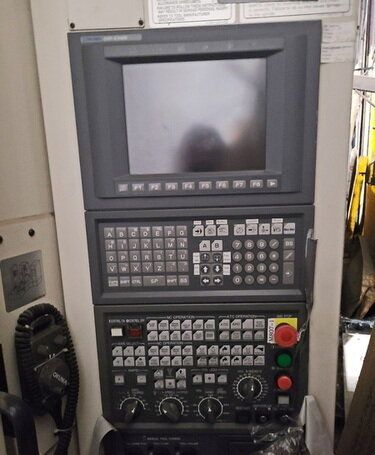

2003 OKUMA MA-40HA Pallet Size 15.75" (2) Travel: X-Axis 22.05" Y-Axis 24.01" Z-Axis 24.61" Pallet Index 1 Degree Spindle Speed 50 - 15,000 RPM Spindle Taper Cat 40 Spindle Motor 20 / 15 HP Spindle Center to Table Top 1.97" - 25.98" Spindle Nose to Table Center 3.35" - 27.95" Tools 30 Rapid Traverse Rates (X, Y & Z) 1574 IPM Pallet Load Capacity 880 lbs. Max Tool Diameter 3.94" / 5.91" Max Tool Length 11.8" Max Tool Weight 7.4 lbs. Max Workpiece Dia / Height 23.62" / 27.95" Machine Dimensions (L x W x H) 178.4" x 95" x 108.62" Machine Weight 25,080 lbs. FEATURES: OSP-E100M CNC CONTROL 12" Color TFT PC / MCIA Interface Rigid Tapping Chip Conveyor (Left Rear Exit) Spindle Chiller Unit Remote Manual Pulse Generator Overhead Coolant Wash Three Color Tower Light
