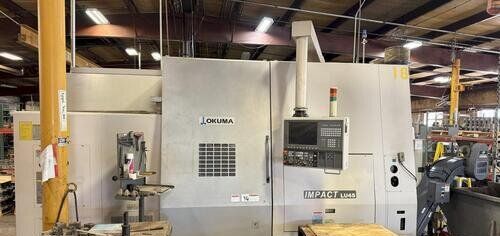

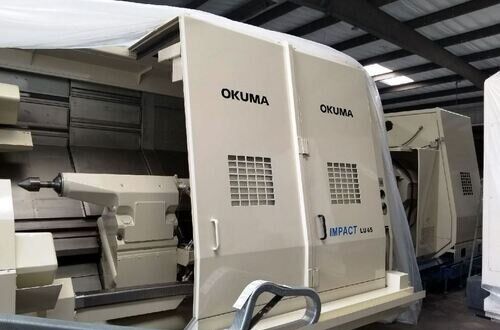

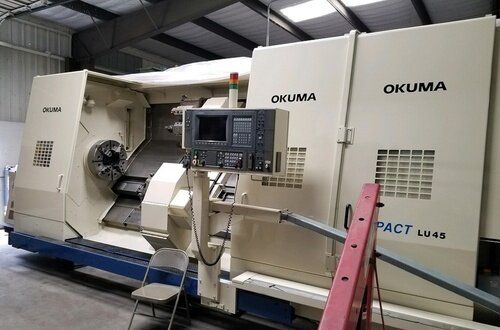

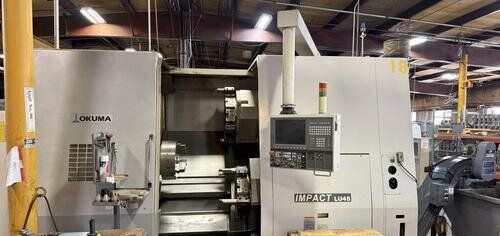

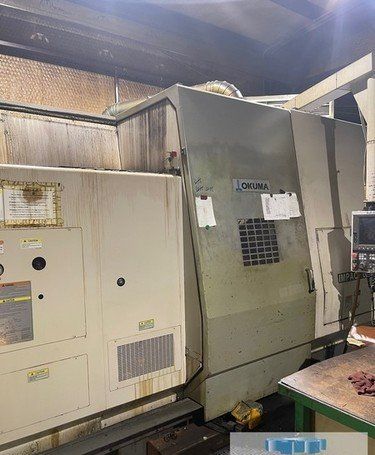

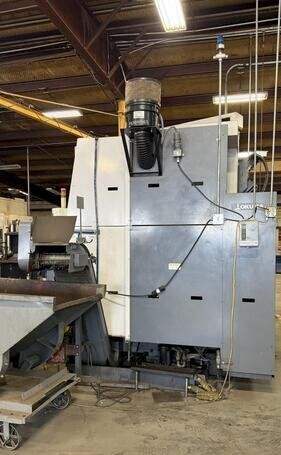

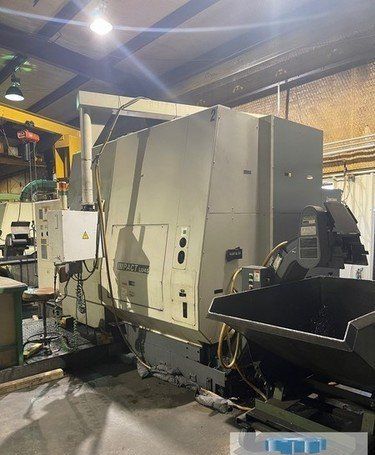

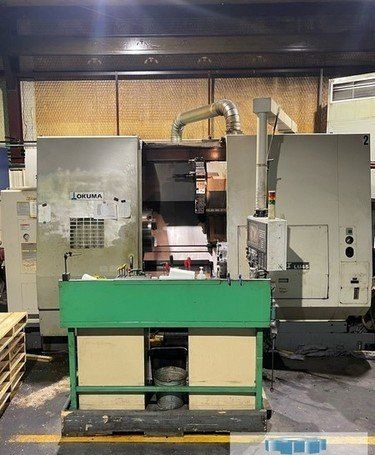

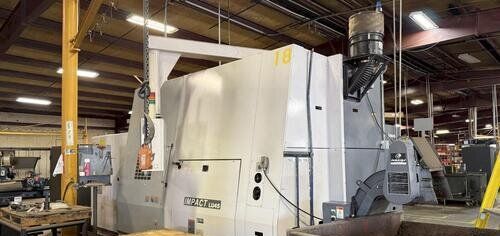

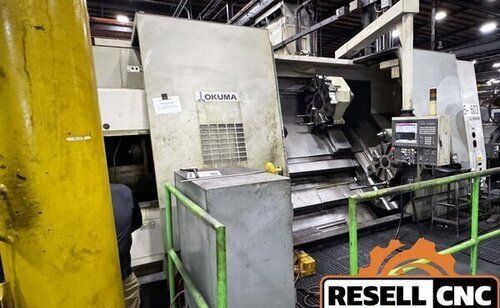

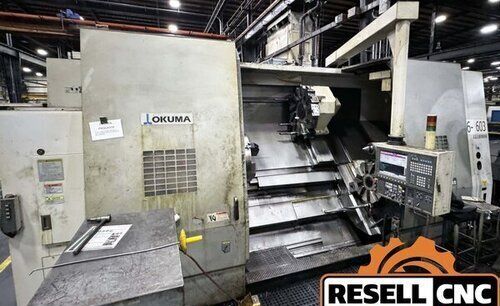

Okuma Impact LU45 CNC Lathe

Specifications

ModelIMPACT LU45
BrandOKUMA
TypeCNC Lathes

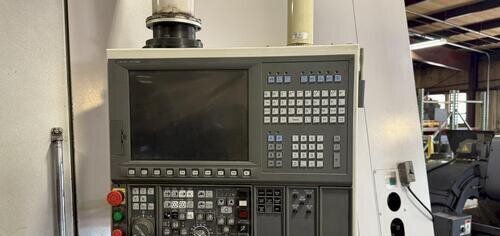

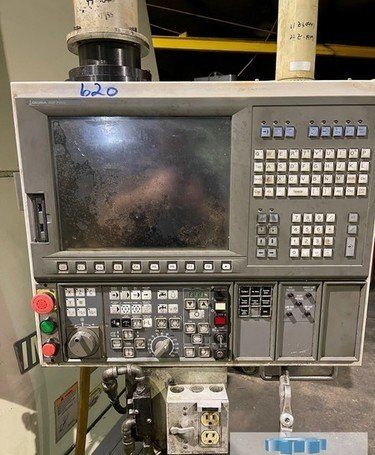

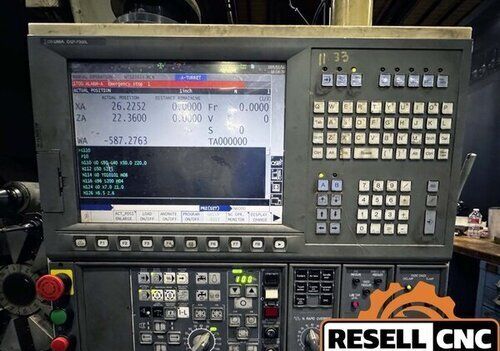

ControlCNC (OSP7000L)
ChuckSize19 inch
BarCapacity5.12 inch
Axis4
Power60 HP
MaxRPM2400 RPM
TurningDia25.98 inch
Swing35.59 inch
MachiningLength39.34 inch

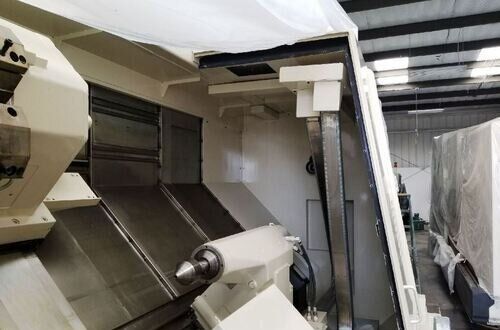

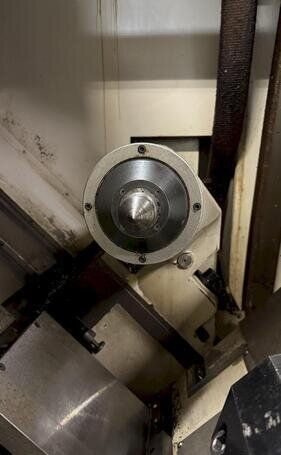

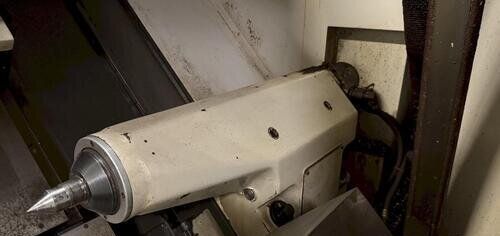

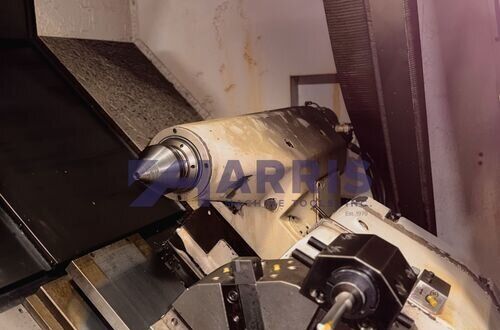

TailstockYes
Dimensions199.2inch x 111.5inch x 118inch Tall
Weight38,940 lbs.
catalogid1642
mfgOKUMA
mpnIMPACT LU45
titleOkuma Impact LU45 CNC Lathe

Zero? Available Machines

Available Machine # Ez11472

  • Stock#:Ez11472
  • Price:$197,500
  • Year:2003
  • Region:South
  • Condition:Used

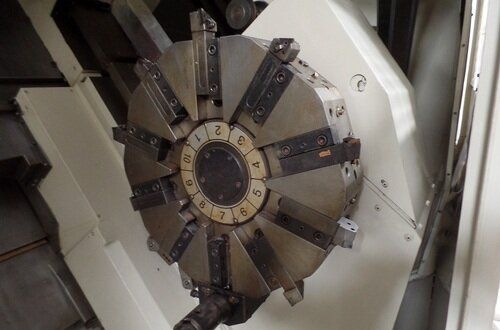

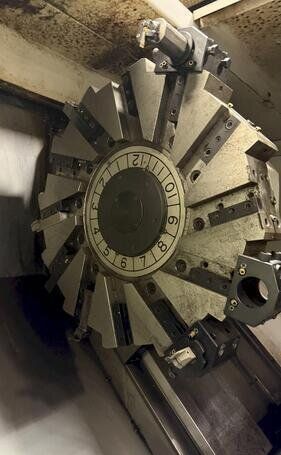

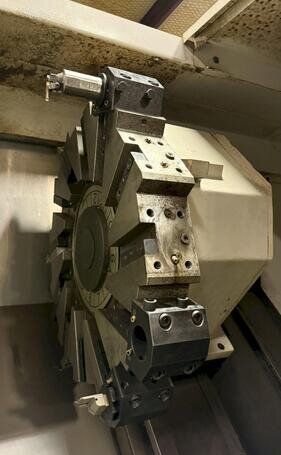

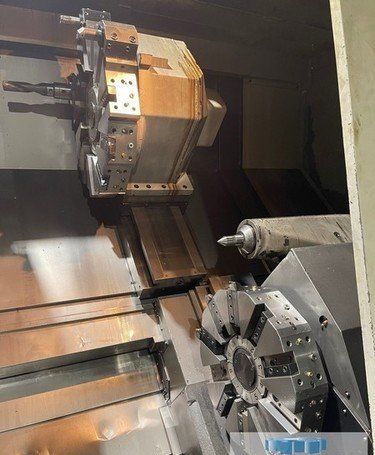

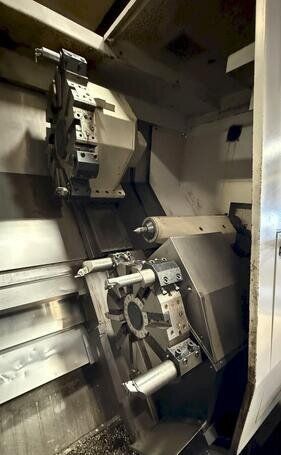

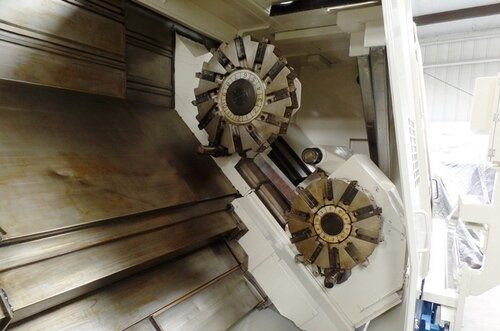

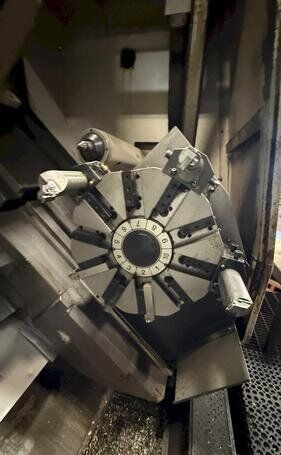

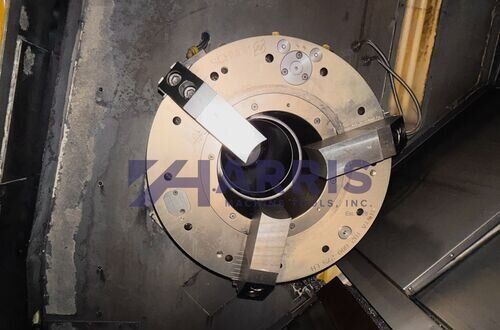

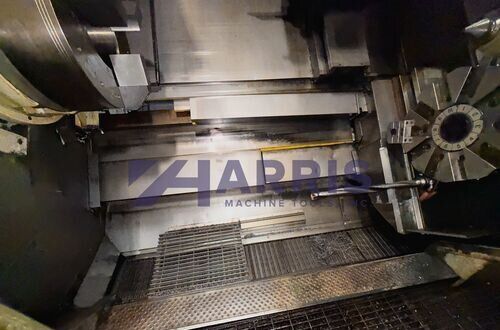

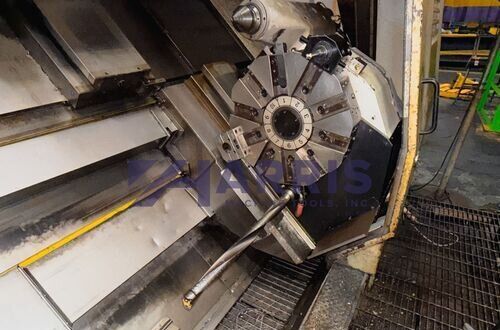

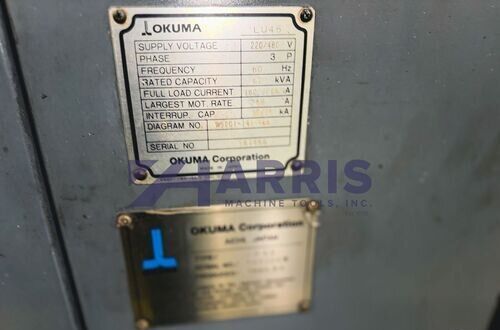

SPECIFICATIONS: Model LU45 CNC control OSP-U100L Year of Manufacture 2003 Swing over bed 33" Max. turning diameter XA/XB 23"/18” Center distance 121” Travels, Z axis 120" X-axis 26" Turret stations 10 upper/8 lower Follow rest Yes, on lower turret Spindle bore 10.23” Spindle nose A-2-20 Chucks (2) 24” Bison 4-jaw F& R with 12.5” bore Spindle speed 31-900 rpm. Rapids, Z/X 393/196 IPM Feed rates 0.00001---39.37 IPM Spindle nose A2-20 Quill diameter 5.12", MT No. 5 Main motor (Cont./30 Min) 50 HP / 60 HP Electrics 220/480/3/60 Dimensions, floor space 294" x 89" X 82”H Machine weight 56,217 lbs. Programming: ¨ Conventional two-axis programming steps and language. ¨ OSP makes the conversions for the lower turret . ¨ Machining is executed in the order of “P-codes” (P1--Pn ) as assigned by the programmer.
