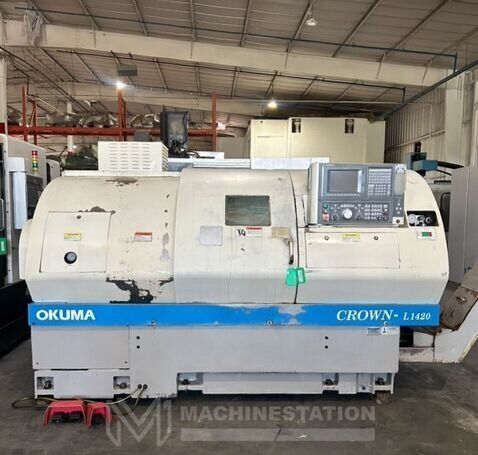

Okuma Crown L1420 CNC Lathes

Specifications

ModelCROWN L1420
BrandOKUMA
TypeCNC Lathes
ControlCNC (OSP-700L)
BarCapacity2.75 inch
Axis2
Power20 hp
MaxRPM3500 rpm
TurningDia14.17 inch
Swing28 inch
MachiningLength49.21 inch
TailstockYes
LiveToolingNo
SubSpindleNo
Dimensions135inchx72inch
Weight15000 (LBS)
catalogid1630
mfgOKUMA
mpnCROWN L1420
titleOkuma Crown L1420 CNC Lathes

Zero? Available Machines

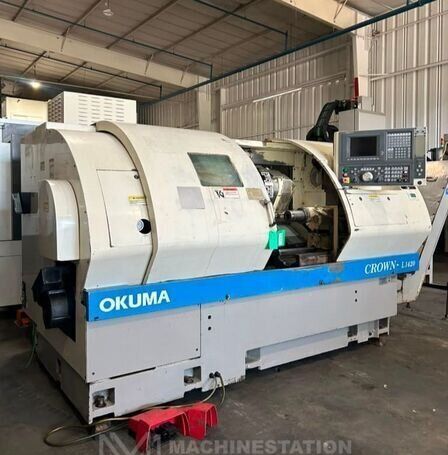

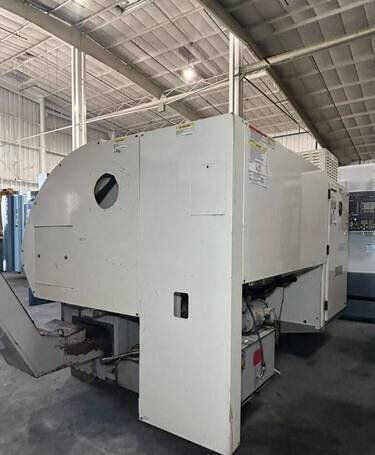

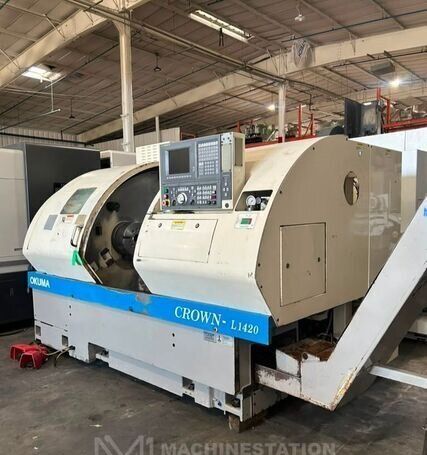

Available Machine # Ez13693

  • Stock#:Ez13693
  • Price:Call
  • Year:2000
  • Region:West
  • Condition:Used

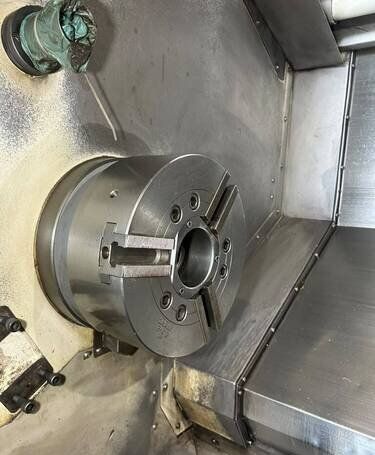

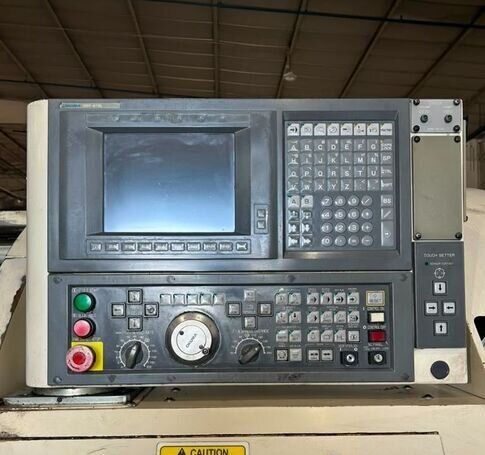

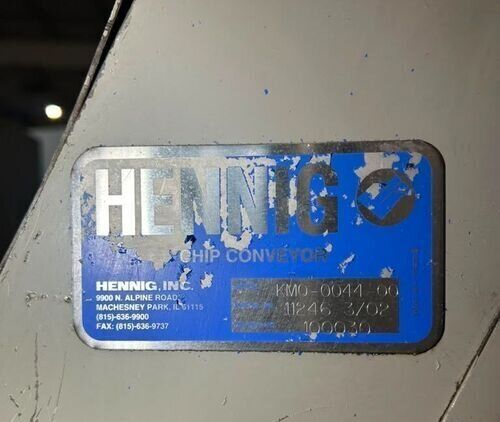

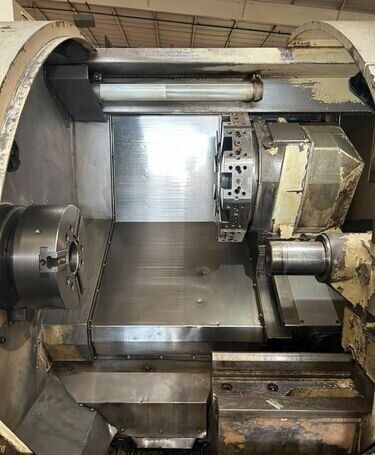

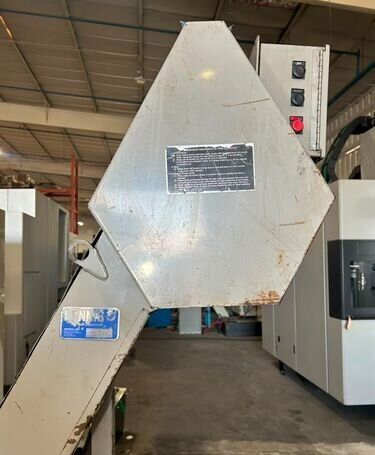

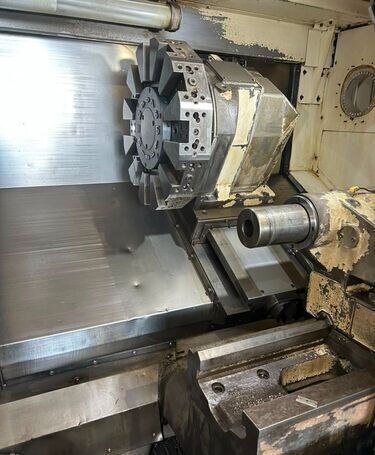

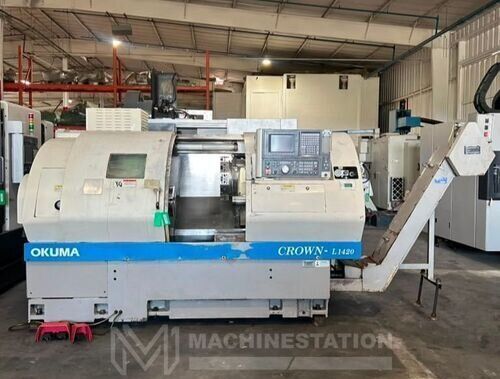

Max Turning Diameter: 14.17" Max Turning Length: 49.21" Max Bar Capacity: 3.15" Swing Over Bed: 24.41" Distance Between Centers: 50.4" X Axis Travel: 9.1" Z Axis Travel: 50.01" Rapid Traverse X Axis: 787 IPM Rapid Traverse Z Axis: 591 IPM Spindle Nose: A2-8 Spindle Bore: 3.54" Spindle Speed: 65-3500 RPM Spindle Motor: 30 HP Turret Capacity: 12 Stations Turret Index Time: 1 Second Tailstock Quill Dia.: 3.94" Tailstock Quill Stroke: 4.72" Tailstock Taper: MT-5 General: Power Source: AC 220 V, Three Phase, 60 Hz Overall Dimensions: 126" x 76" x 80" High Overall Dimensions: 150" x 76" x 80" High W/Chip Conveyor Weight : 13,500 lbs Approx. OKUMA CROWN L1420 /1250 Equipped With: Okuma OSP-O10L CNC Control IGF - Interactive Graphic Function 12" 3-Jaw Kitagawa Hydraulic Chuck 12-Station Turret with Tooling Hydraulic Tailstock Slant Bed Rigid Box Way Long Bed Machine Chip Conveyor Coolant System. Automatic Lubrication system Foot Operated Control for Chuck & Tailstock Coolant Tank Comes with Chip Conveyor, Levelling Pads, Manuals.
