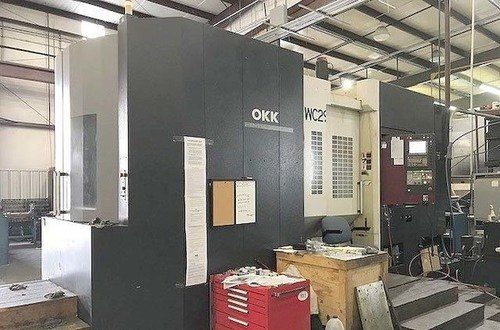

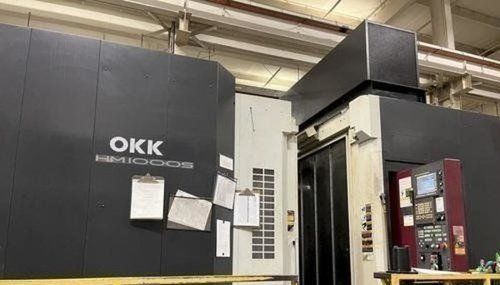

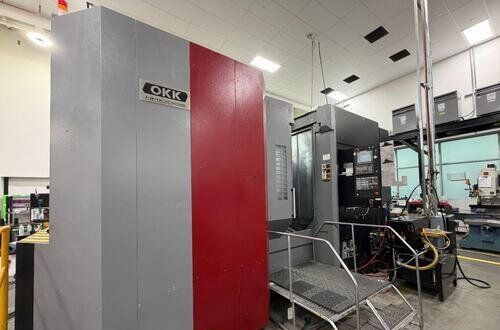

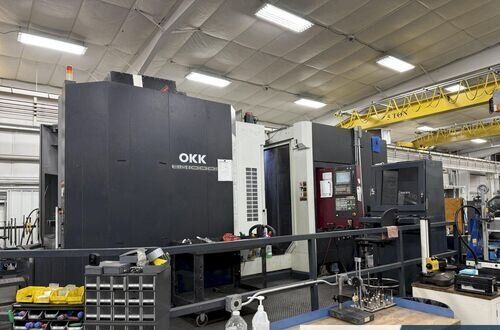

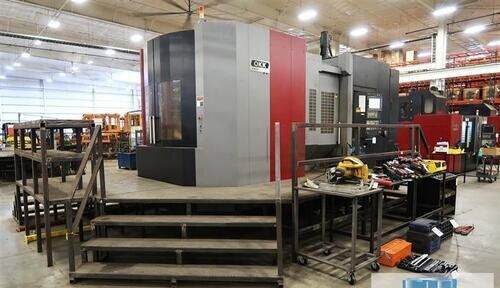

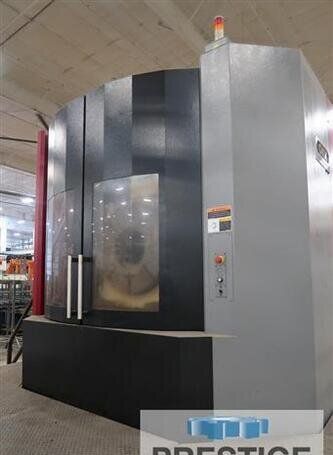

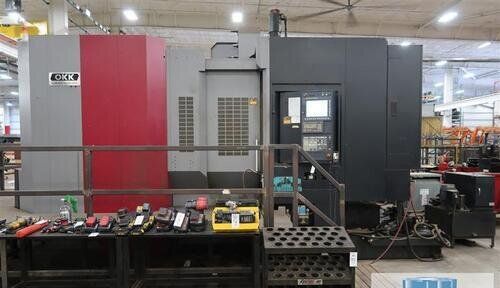

Okk HM1000S Horizontal Machining Center

Specifications

BrandOKK
ModelHM1000S
TypeHorizontal Machining Centers
ControlCNC (Fanuc 310iS A5)
X55.12 inch
Y43.31 inch
Z39.37 inch
Power40 hp
RPM12000 rpm
ATC60
PalletW39.37 inch
PalletL39.37 inch
Taper#50
Axis4
Weight55,000 lbs.
Length251.8"
Width145"
Height157.5"
catalogid2563
mfgOKK
mpnHM1000S
titleOkk HM1000S Horizontal Machining Center

Zero? Available Machines

Available Machine # Ez19388

  • Stock#:Ez19388
  • Price:$459,000
  • Year:2011
  • Region:South
  • Condition:Used

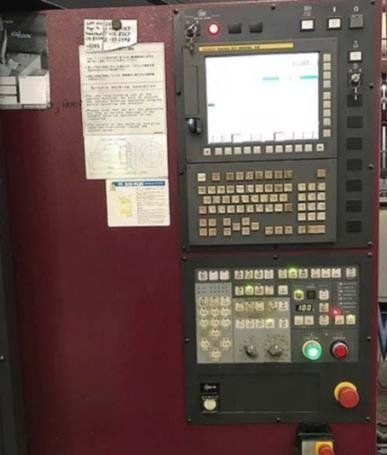

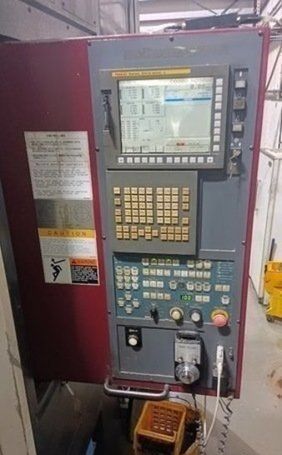

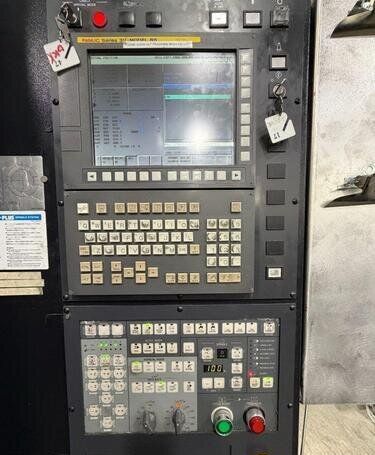

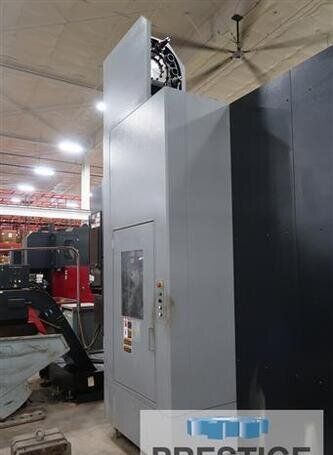

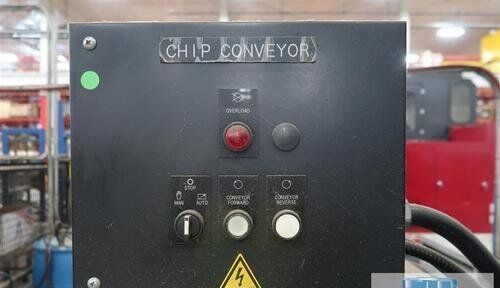

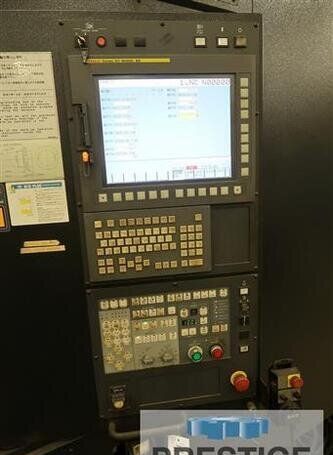

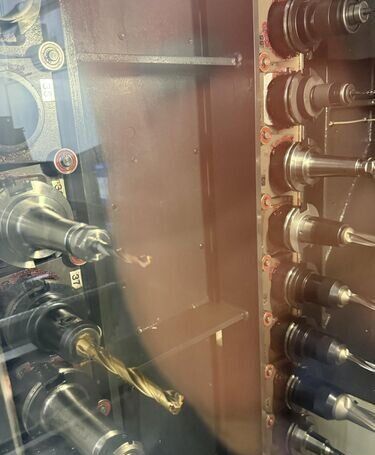

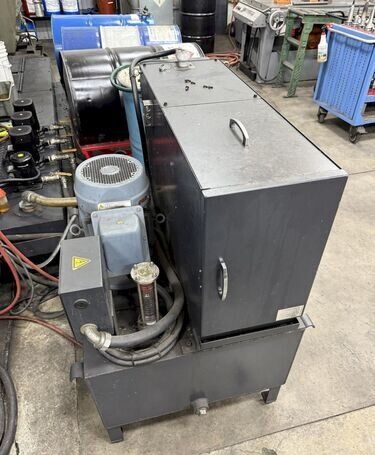

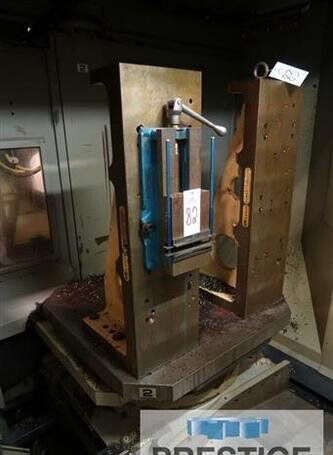

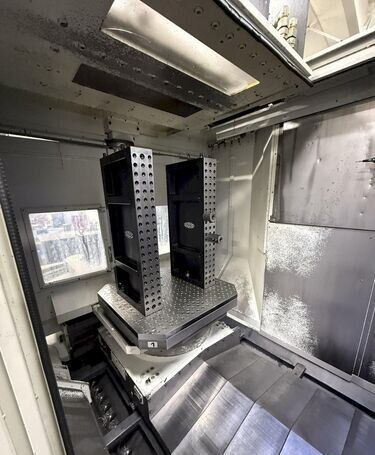

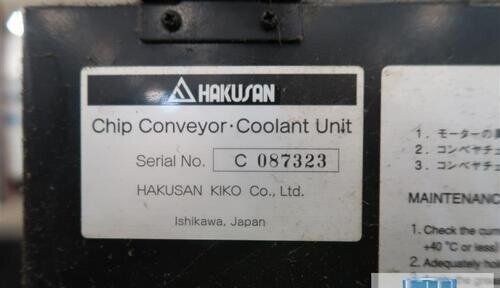

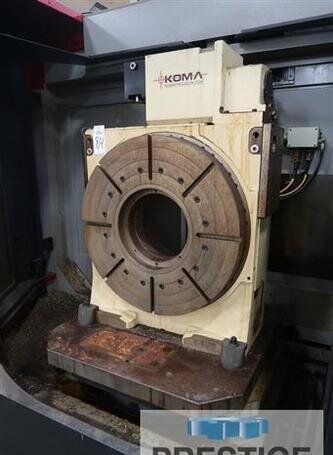

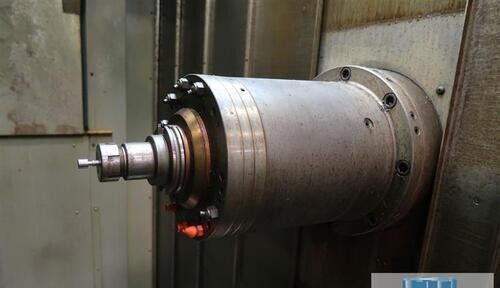

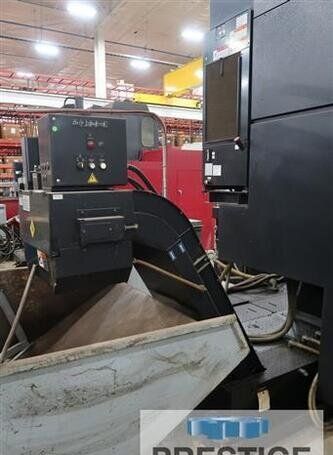

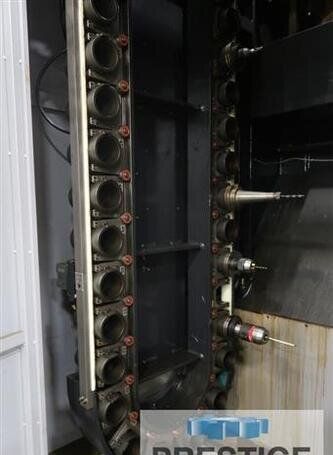

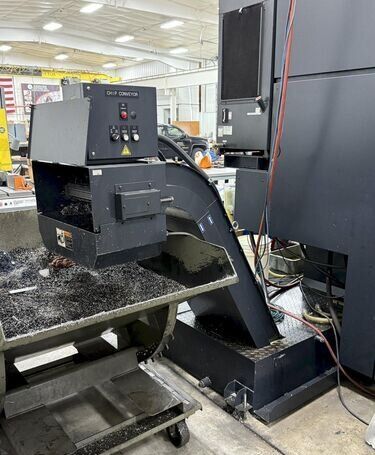

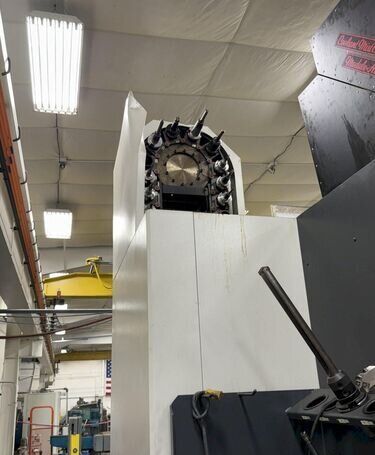

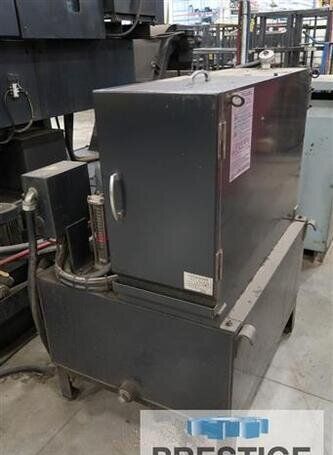

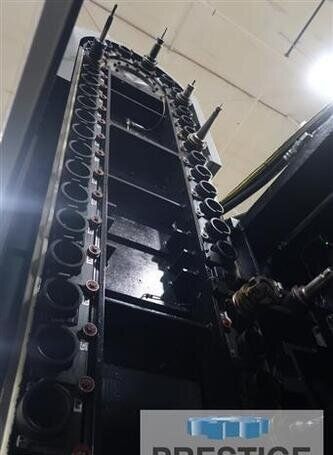

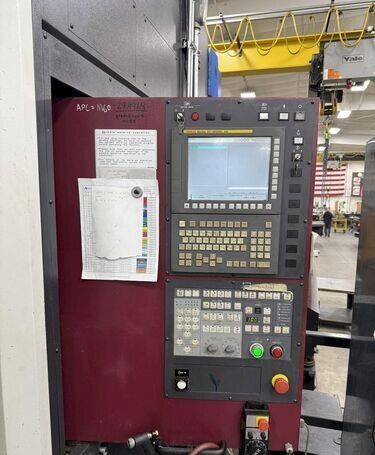

Pallet Size 39.37" Travel: X-Axis 55.12" Y-Axis 43.31" Z-Axis 39.37" Pallet Index .001 Degrees Spindle Speed 20 - 8000 RPM Spindle Taper #50 Spindle Motor 40 / 35 HP Spindle Torque 923 ft. lbs. Spindle Center to Table Top 1.97" - 45.28" Spindle Nose to Table Center 9.84" - 49.21" Tools 60 Rapid Traverse Rates (X, Y & Z) 1889 IPM Tool Change Time (T - T) 8.8 Seconds Pallet Load Capacity 5500 lbs. Max Tool Diameter 4.53" / 10.63" Max Tool Length 19.69" Max Tool Weight 55 lbs. Machine Dimensions (L x W x H) 251.8" x 145" x 157.5" Machine Weight 55,000 lbs. FEATURES: FANUC 31i-A5 CNC CONTROL 10.4" Color LCD PC/MCIA Interface Coolant Thru Spindle (1000 psi) 60 Tool Magazine Fourth Axis Rotary Table Renishaw Touch Probe OMP60 Chilled Ballscrews Overhead Coolant Wash Three Color Tower Light Remote Manual Pulse Generator Spindle Chiller Unit Chip Conveyor (Left Rear Exit) Three Gear Range Headstock
