Ntc ZH-4000 Horizontal Machining Centers

Specifications

BrandNTC
ModelZH-4000
TypeHorizontal Machining Centers
ControlCNC (Fanuc 32iMA)
X22 inch
Y22 inch
Z20 inch
Power25 HP
RPM12000 RPM
ATC40
PalletW15.75 inch
PalletL15.75 inch
Taper40
Axis4
Dimensions98.6 x 182.9 x 104.3
Weight20,640
Width98.6 inch
Length182.9 inch
Height104.3 inch
catalogid2306
mfgNTC
mpnZH-4000
titleNtc ZH-4000 Horizontal Machining Centers

Zero? Available Machines

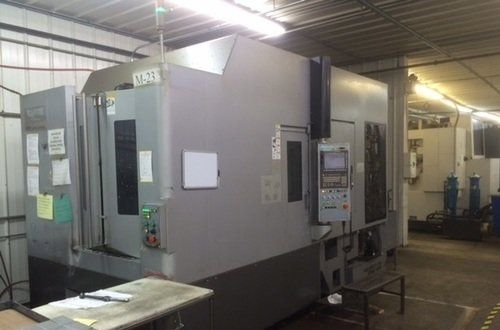

Available Machine # Ez11942

  • Stock#:Ez11942
  • Price:Call
  • Year:2007
  • Region:Midwest
  • Condition:Used

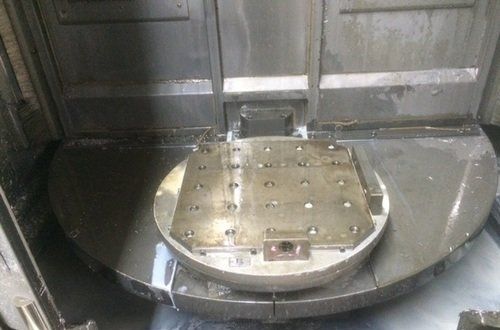

Specifications: PALLET SIZE 15.7" X 15.7" X AXIS TRAVEL 25" Y AXIS TRAVEL 22" Z AXIS TRAVEL 22" PALLET ROTATION .001 DEGREE INDEXING(FULL 4TH) NUMBER OF PALLETS 2 SPINDLE TAPER CAT 40 SPINDLE POWER 25 HP SPINDLE SPEED 12000 RPM NUMBER OF TOOLS 40 STATION RAPID TRAVERSE RATE X,Y,Z 2,362 IPM CUTTING FEED RATES 1,181 IPM APPROXIMATE DIMS 98.6" X 182.9" X 104.3" APPROXIMATE WEIGHT 20,460 LBS Equipped With FANUC 32I MODEL A CNC CONTROL FULL 4TH AXIS CHIP CONVEYOR ALL AVAILABLE MANUALS

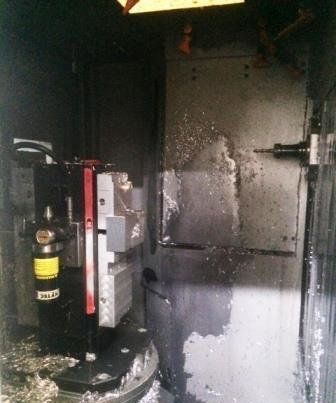

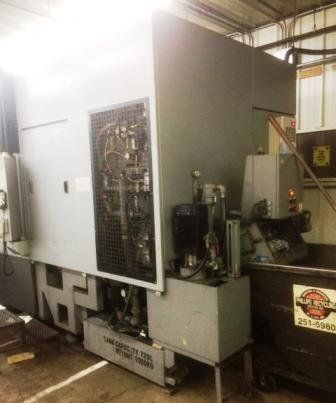

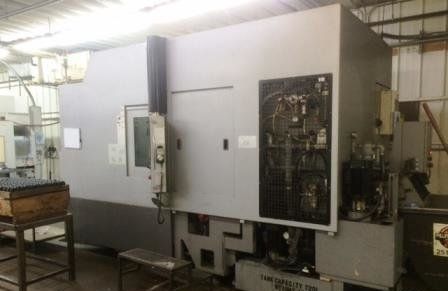

Available Machine # Ez11413

  • Stock#:Ez11413
  • Price:Call
  • Year:2007
  • Region:Midwest
  • Condition:Used

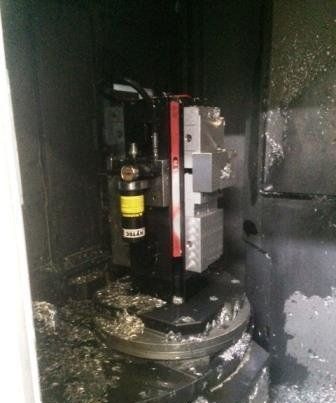

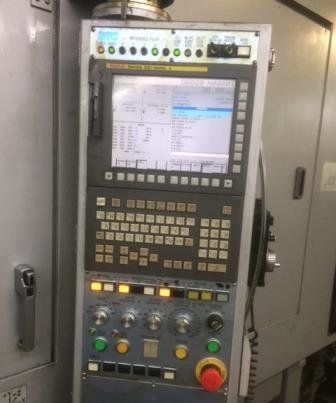

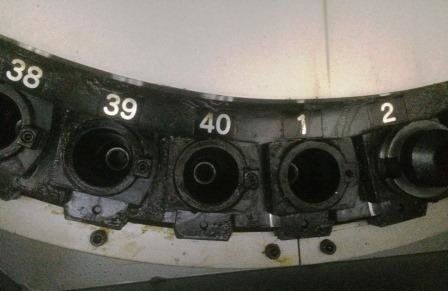

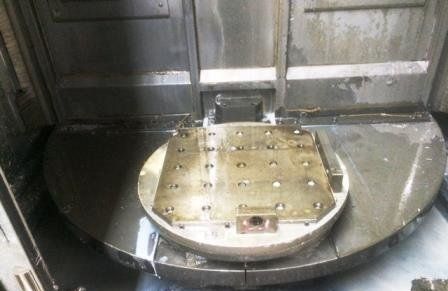

Specifications: Table Size: 15.75" x 15.75" Table Load Capacity 550 LBS Table Index Full 4th Axis Distance From Table Center to Spindle Gage Plane 3.9" - 24.0" Maximum Work Piece Swing Diameter 24.00" Work Piece Height 25" X-Axis Table Travel: 22" Y-Axis Saddle Travel: 22" Z-Axis Spindle Head Travel: 20" Rapid Traverse Rate: X,Y,Z 2,362 ipm Cutting Feed Rates .04-1,181 ipm Spindle Taper: 40 Taper Spindle Speeds: 12,000 RPM Spindle Drive Motor: 25 HP Automatic Tool Changer: 40 Positions Tool To Tool Time 1.3 SEC Chip To Chip Time 2.4 SEC Maximum Tool Diameter: W/O Adjacent 4.9" Maximum Tool Diameter: W/ Adjacent 3.1" Maximum Tool Length: 11.8" Maximum Tool Weight: 17.6 LBS Approximate Dimensions: (W X L X H) 98.6 x 182.9 x 104.3 Machine Weight: 20,460 LBS Equipped With: CNC Control: FANUC 32iMA Full 4th Axis 40 ATC Scraper Chip Conveyor Spindle Chiller Coolant Thru Tool 1,000 psi 220V Transformer All Available Manuals and Keys

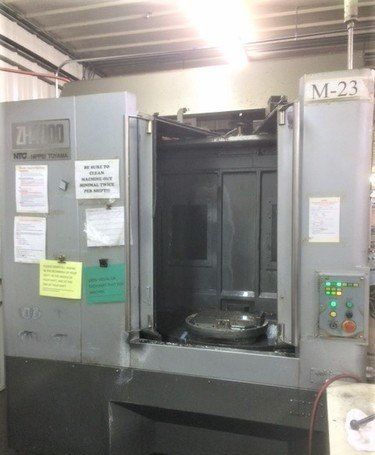

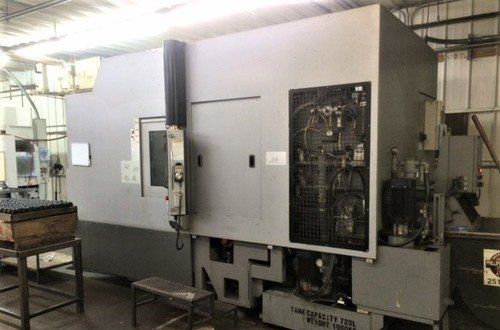

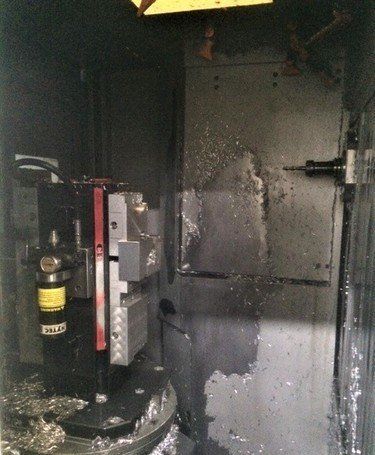

Available Machine # Ez11148

  • Stock#:Ez11148
  • Price:Call
  • Year:2007
  • Region:West
  • Condition:Used

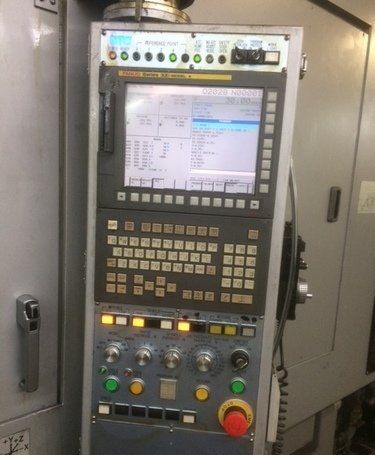

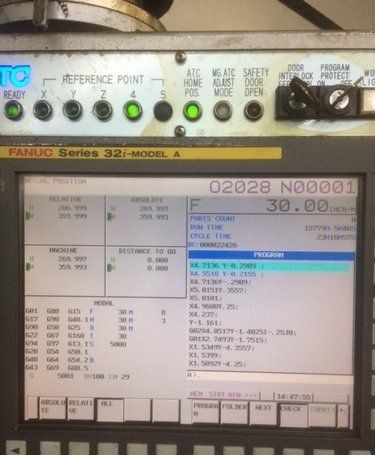

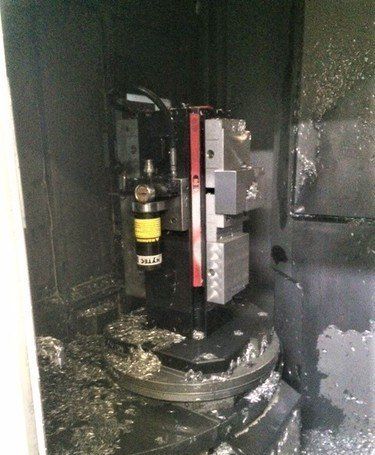

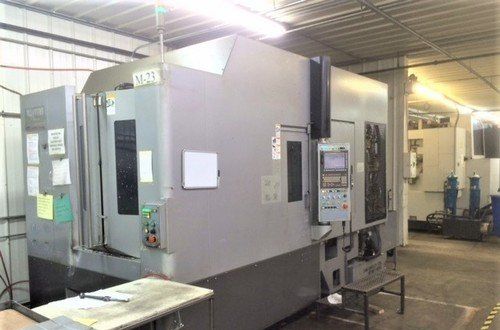

TRAVELS: --X: 22" --Y: 22" --Z: 20" TABLE SIZE: 15.75" X 15.75" TABLE LOAD CAPACITY: 550 LBS TABLE INDEX: FULL 4TH AXIS TABLE CENTER TO SPINDLE GAGE PLANE: 3.9" - 24.0" MAXIMUM WORK PIECE SWING DIAMETER: 24.00" WORK PIECE HEIGHT: 25" RAPID TRAVERSE RATE: X,Y,Z: 2,362 IPM CUTTING FEED RATES: .04-1,181 IMP SPINDLE TAPER: 40 TAPER SPINDLE SPEEDS: 12,000 RPM SPINDLE DRIVE MOTOR: 25 HP AUTOMATIC TOOL CHANGER: 40 POSITIONS TOOL TO TOOL TIME: 1.3 SEC CHIP TO CHIP TIME: 2.4 SEC MAXIMUM TOOL DIAMETER: W/O ADJACENT: 4.9" MAXIMUM TOOL DIAMETER: W/ ADJACENT: 3.1" MAXIMUM TOOL LENGTH: 11.8" MAXIMUM TOOL WEIGHT: 17.6 LBS APPROXIMATE DIMENSIONS: (W X L X H): 98.6 X 182.9 X 104.3 MACHINE WEIGHT: 20,460 LBS FANUC 32IMA CNC CONTROL FULL 4TH AXIS 40 ATC SCRAPER CHIP CONVEYOR SPINDLE CHILLER COOLANT THRU TOOL 1,000 PSI 220V TRANSFORMER ALL AVAILABLE MANUALS AND KEYS


Available Machine # Ez4243

  • Stock#:Ez4243
  • Price:Call
  • Year:2007
  • Region:Midwest
  • Condition:Used
CNC Control FANUC 32iMA Full 4th Axis 40 ATC scraper Chip Conveyor Spindle Chiller Coolant Thru Tool 1,000 psi 220V Transformer All Available Manuals and Keys
