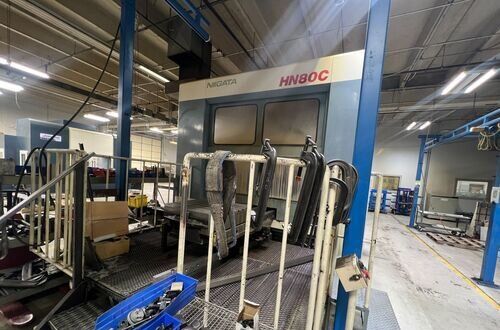

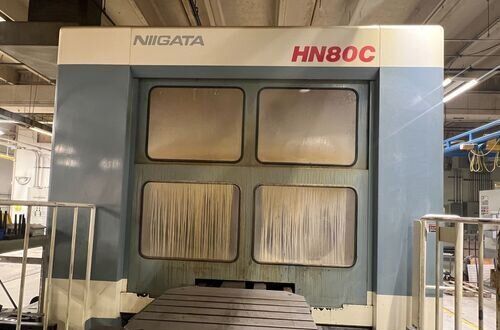

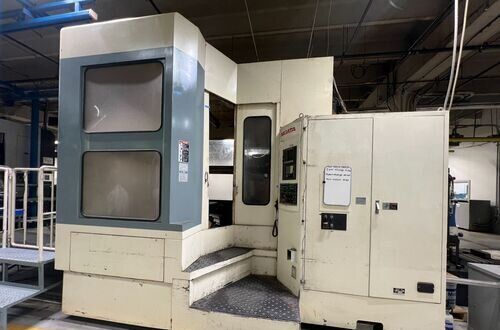

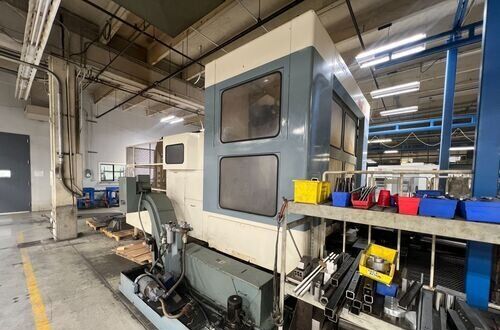

Niigata Hn80c Horizontal Machining Centers

Specifications

ModelHN80C
BrandNIIGATA
TypeHorizontal Machining Centers
ControlCNC (FANUC F160i-MA )
X60 inch
Y40 inch
Z36 inch
Power30 HP
RPM6000 RPM
ATC126
PalletW31.5 inch
PalletL31.5 inch
TaperCAT #50
Axis4
Weight48,000 Lbs
Height147"
Length297"
Width198"
catalogid923
mfgNIIGATA
mpnHN80C
titleNiigata Hn80c Horizontal Machining Centers

Zero? Available Machines

Available Machine # Ez11998

  • Stock#:Ez11998
  • Price:$44,900
  • Year:1997
  • Region:Midwest
  • Condition:Used

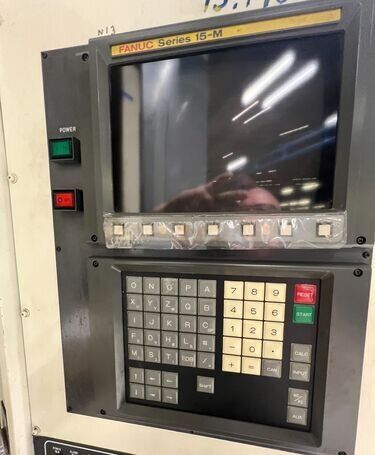

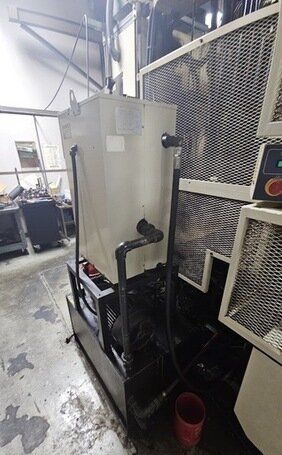

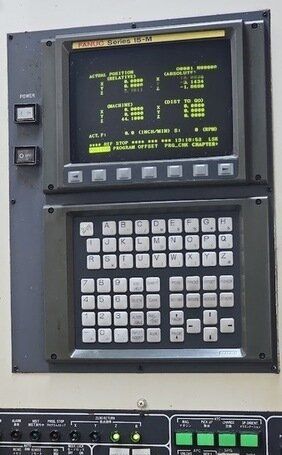

Specifications: Pallet Size 31.5" x 31.5" Pallet Load (Max) 4,400 LBS X-Axis Travels 60" Y-Axis Travels 40" Z-Axis Travels 36" Spindle Speed 4,500 RPM Spindle Taper CAT50 Spindle Motor 35/30 HP Tool Changer Style Carousel Tool Changer Positions 60 Stations Machine Dimensions 297" L x 198" W x 147" H Machine Weight 48,000 Lbs Equipped With: Fanuc 15M CNC Control Full 4th Axis Automatic Pallet Changer (2) 31.5" x 31.5" / 800mm Pallets Spindle Orientation Jorgenson Chip Conveyor Thru Spindle Coolant (Pressure Must Be Confirmed) Box Way Machine VIDEO: https://www.youtube.com/watch?edit=vd&v=HnmW9upV8DY


Available Machine # Ez1313

  • Stock#:Ez1313
  • Price:$119,500
  • Year:1998
  • Region:Midwest
  • Condition:Used

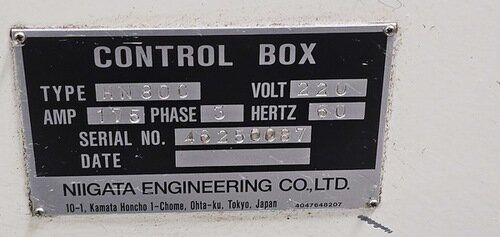

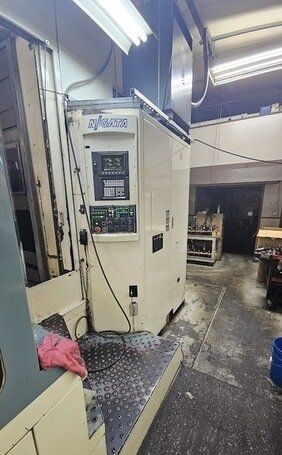

EQUIPPED WITH: - FANUC 160i-MA - CTS (COOLANT THROUGH SPINDLE) - (2) PALLETS OF 31.5" (800 MM) - FULL 4TH AXIS - INDEXATION: 0.001 DEGREE - MARPOSS PROBE INTERFACE - FPM INTERFACE - MONITORING SYSTEM NM24 MONITOR ACE - 4 FACE CONTROL - OVER GUIDE FOR 10 FPM - RIGID TAP - HSSB INTERFACE ELECTRIC: 220V/3PH/60CY AMP: 175
