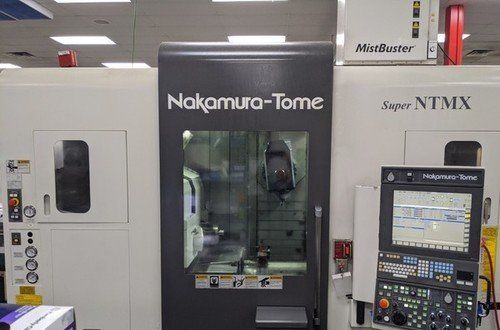

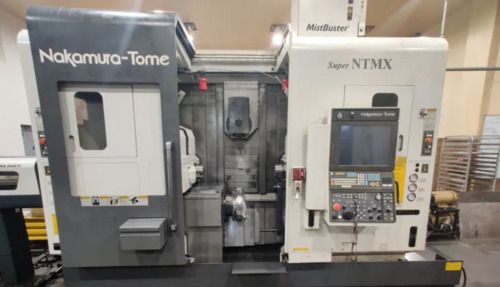

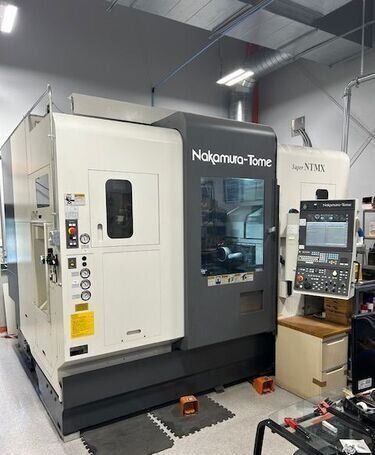

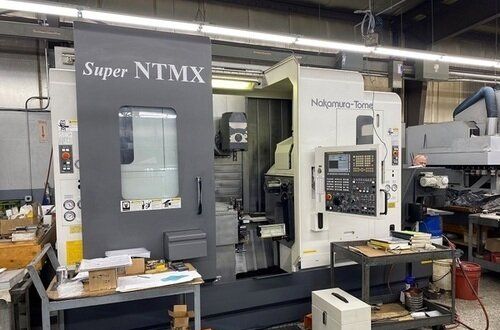

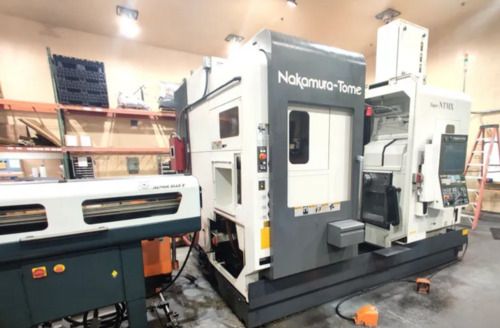

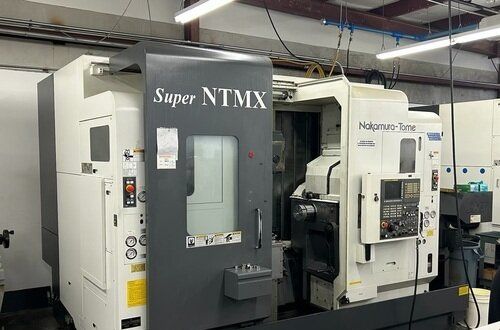

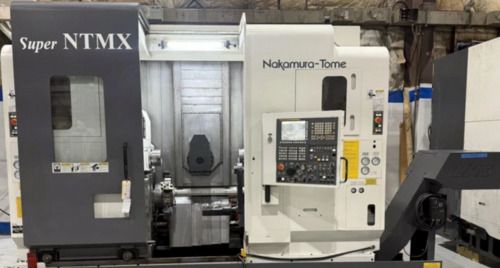

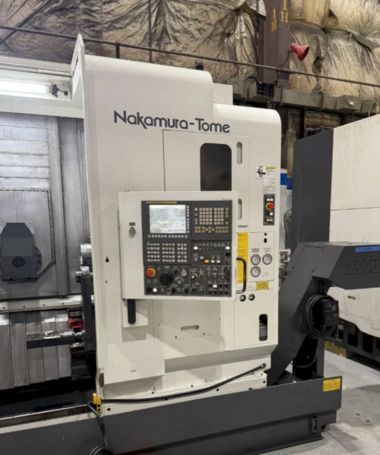

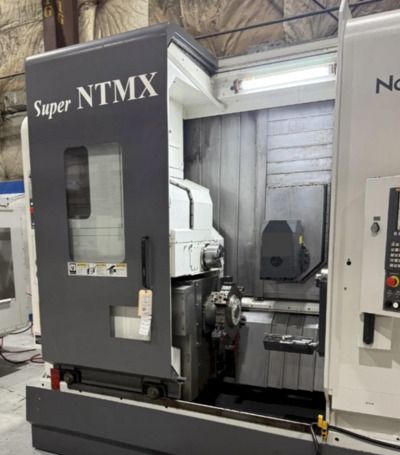

Nakamura-Tome Super NTMX 5-Axis or More CNC Lathes

Specifications

ModelSUPER NTMX
BrandNAKAMURA-TOME
Type5-Axis or More CNC Lathes

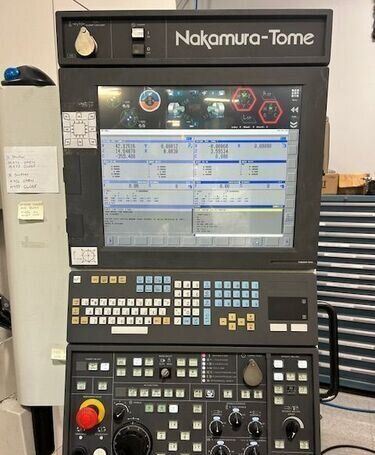

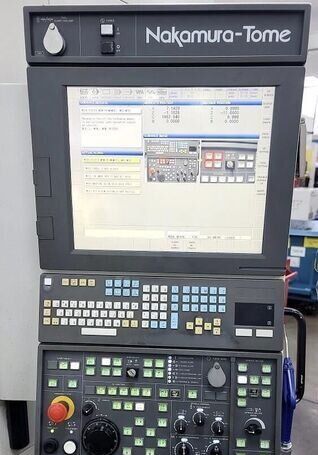

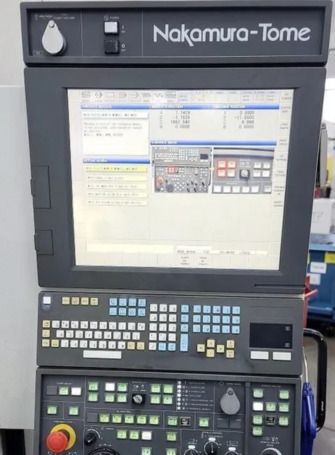

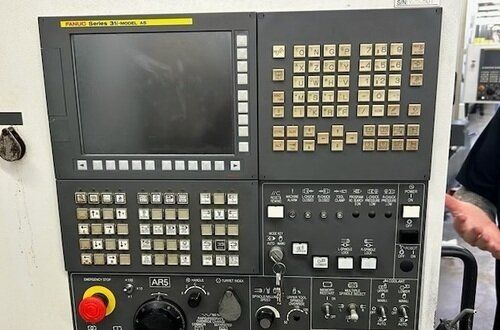

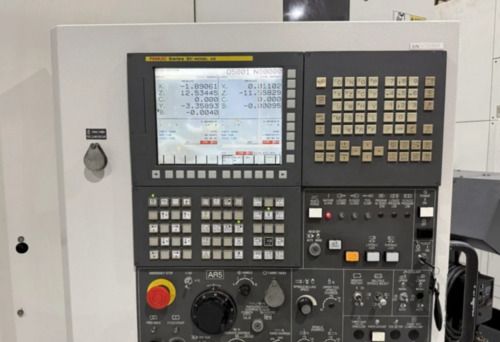

ControlCNC (Fanuc 31A5 2 Path CNC Control)
Axis9
ChuckSize6 inch
BarCapacity2 inch
Power15 HP
MaxRPM12000 RPM
TurningDia7.67 inch
Swing8.07 inch
MachiningLength30.7 inch
TailstockYesNoNo
Dimensions151.22inch x 112.48inch
Weight31,967 lbs
catalogid1864
mfgNAKAMURA-TOME
mpnSUPER NTMX
titleNakamura-Tome Super NTMX 5-Axis or More CNC Lathes

Zero? Available Machines

Available Machine # Ez13280

  • Stock#:Ez13280
  • Price:Call
  • Year:2011
  • Region:South
  • Condition:Used

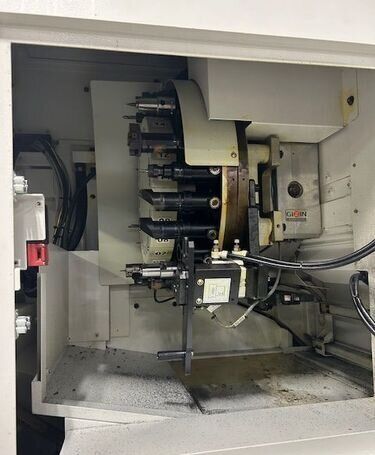

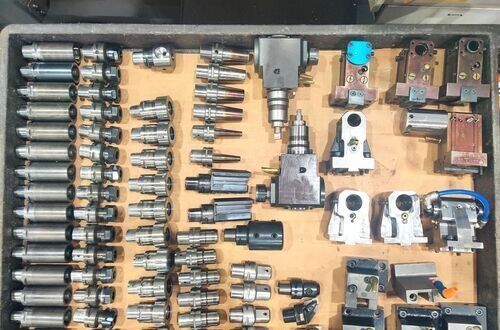

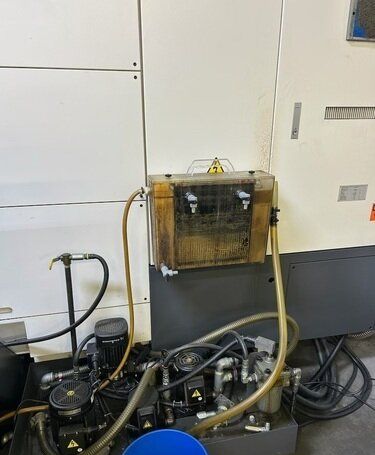

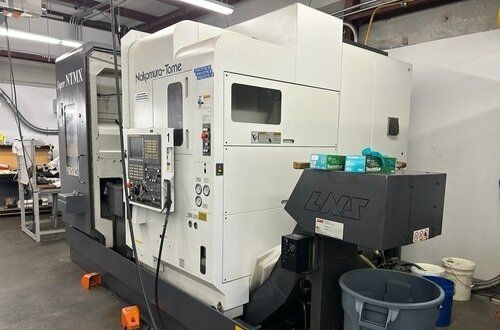

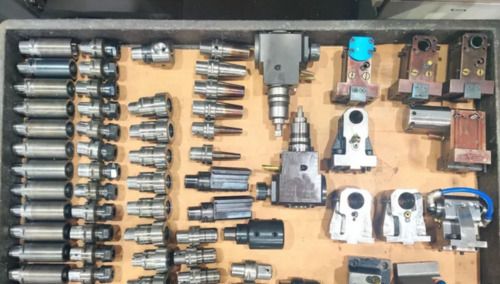

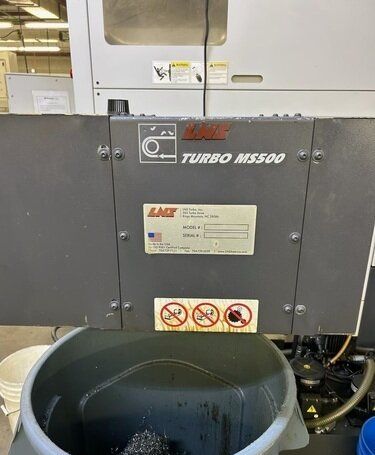

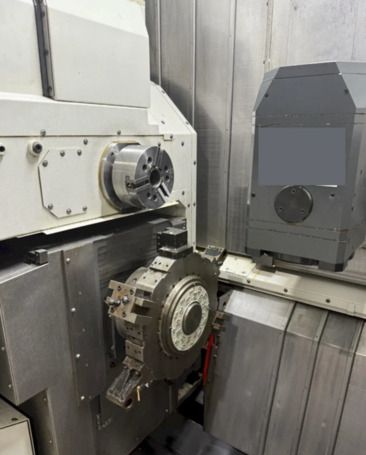

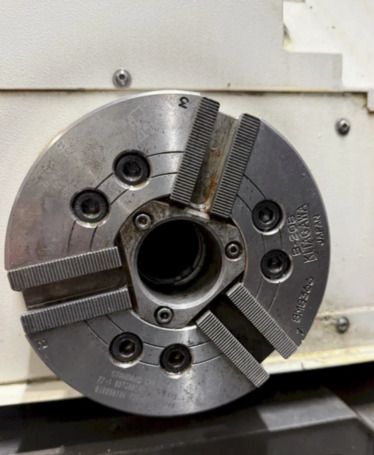

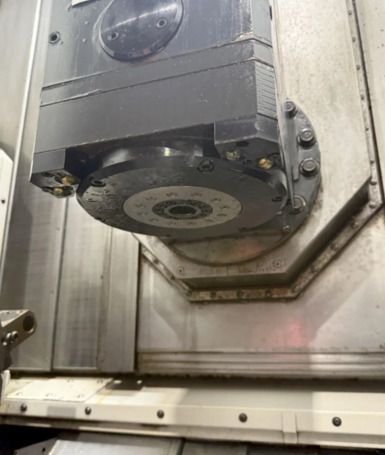

# Axis 6 Chuck Size 8 " Bar Capacity 2.008 " Power 10.1 hp Max RPM 12000 rpm Turning Dia 7.874 " Machining Length 30.71 " Control CNC (FANUC 31i). 2011 Nakamura Super NTMX Includes: 16C Collet chuck head one 5C collet chuck head 2 Parts Catcher 12000 RPM B-axis with Capto C4 connection LNS MH Chip conveyor Probe High Pressure Coolant Oil Cooler (fire suppression not included) Lower Turret (does not have live tooling) 20 Capto tool holders Chip Conveyor


Available Machine # Ez13281

  • Stock#:Ez13281
  • Price:$199,900
  • Year:2011
  • Region:West
  • Condition:Used
# Axis: 6 Chuck Size: 8" Bar Capacity: 2.008" Power: 10.1 HP Max RPM: 12000 RPM Turning Diameter: 7.874" Machining Length: 30.71" 2011 Nakamura Super NTMX Includes: 16C Collet chuck head one 5C collet chuck head 2 Parts Catcher 12000 RPM B-axis with Capto C4 connection LNS MH Chip conveyor Probe High Pressure Coolant Oil Cooler (fire suppression not included) Lower Turret (does not have live tooling) 20 Capto tool holders Chip Conveyor


Available Machine # Ez13429

  • Stock#:Ez13429
  • Price:Call
  • Year:2012
  • Region:Midwest
  • Condition:Used

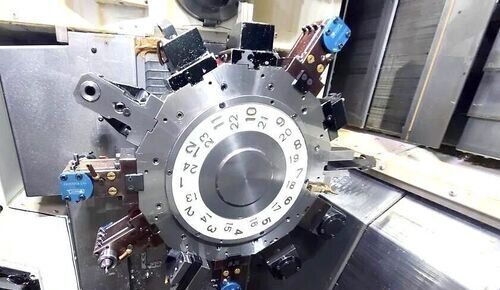

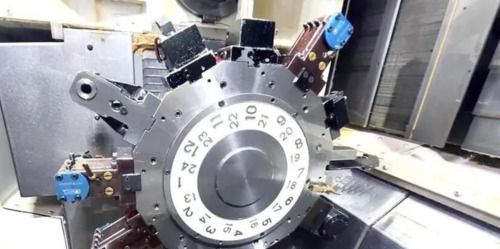

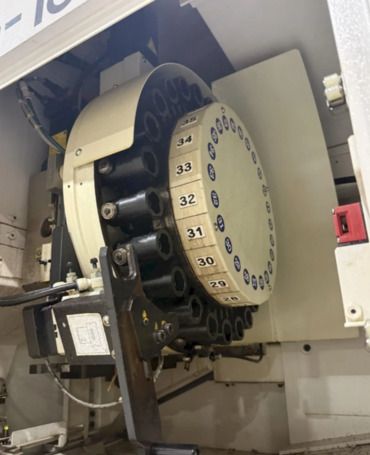

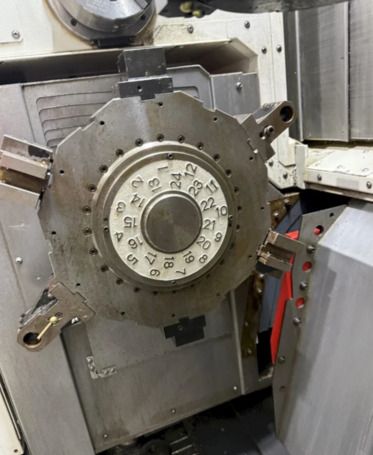

# Axis 6 Bar Capacity 2.04 " Power 15 hp Max RPM 5000 rpm Turning Dia 0.3177 " Machining Length 30.7 " Tailstock (Yes/No) No Weight 32,000 LBS Control CNC (Fanuc 31i-A5) Capacity Max.turning diameter 200mm Max.turning length 780mm Distance between centers 980mm Bar capacity L,R: 51mm Chuck size L,R:165mm(6",)210mm(8") Axis travel Slide travel X1/X2 570mm/130.5mm Slide travel Z1/Z2/B2-axis 1,297/658/770mm Slide travel Y ±100mm L & R Spindle speed 5,000 RPM L/R Spindle drive motor 11/7.5kW Tool spindle speed 12,000 RPM Tool spindle drive motor 7.5/3.7kW  Number of tool stock 48(24x2) Lower Turret Dodecagonal drum Number of indexing positions 24
