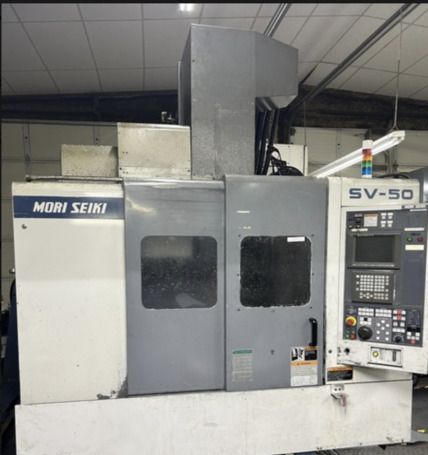

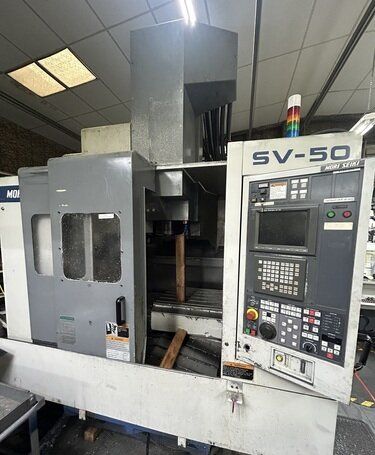

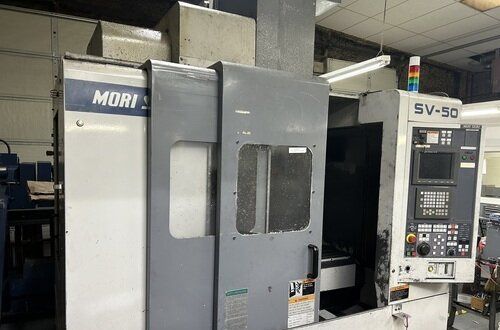

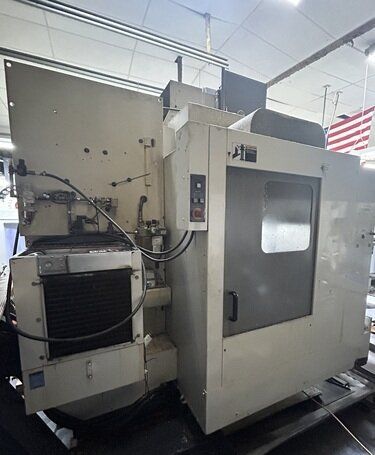

Mori Seiki SV-50 Vertical Machining Centers

Specifications

ModelSV-50
BrandMORI SEIKI
TypeVertical Machining Centers

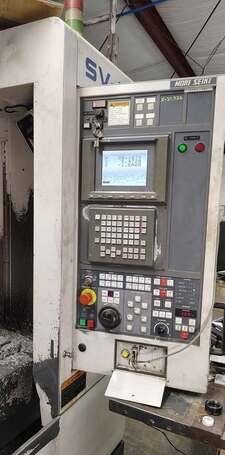

ControlCNC (Fanuc 16MC)
X31.5 inch
Y20.1 inch
Z20.1 inch
Power30 HP
RPM10K RPM
ATC40
TableW43.3 inch
TableL23.6 inch
TaperCT40
Axis3
Length102"
Width93"
Height113"
Weight17,120 lbs
catalogid75
mfgMORI SEIKI
mpnSV-50
titleMori Seiki SV-50 Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez831

  • Stock#:Ez831
  • Price:Call
  • Year:1996
  • Region:Midwest
  • Condition:Used
Equipped With: MSC-516 CNC Controls Coolant Tank & Pumps Chip Conveyor Renishaw Probing Jet Pulsar Coolant System Transformer


Available Machine # Ez13944

  • Stock#:Ez13944
  • Price:$38,000
  • Year:N/A
  • Region:West
  • Condition:Used

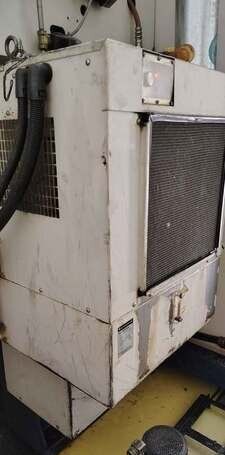

Specifications Table Size 43.3" x 23.6" Table Load Capacity 2,200 lbs. X-Axis Travel 31.5" Y-Axis Travel 20.1" Z-Axis Travel 20.1" Tool Magazine Capacity 20 Position ATC Tool Change Time-chip to chip 3.1 seconds Max. Tool Diameter / Length 4.9" / 11.8" Spindle Taper CAT #40 Taper Spindle Motor 30 Min. / Cont. 30 / 25 HP Spindle Speed 10,000 RPM Table Top to Spindle Nose 5.9" - 26" Rapid Traverse Rates 1259 IPM Machine Dimensions 102" x 93" x 113" Machine Weight 17,120 lbs. Equiped with 20 Station Side Mounted Tool Changer Chip Conveyor High Pressure Coolant System Rigid Tapping RS 232 Port Interface Oil Cooler Auto Power Off System Coolant System Full Enclosure All Available Manuals Condition Very Good
