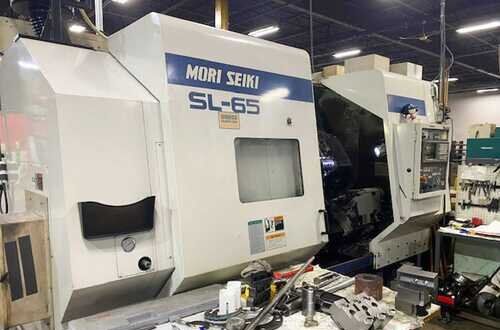

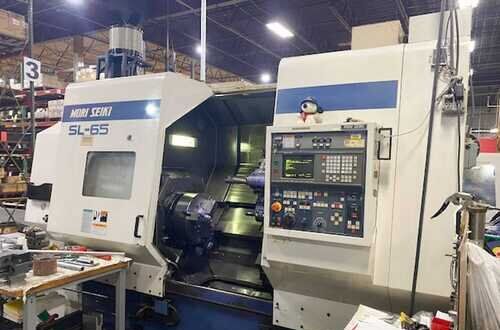

Mori Seiki SL-65 CNC Lathes

Specifications

ModelSL-65
BrandMORI SEIKI
TypeCNC Lathes
ControlCNC (Fanuc)
ChuckSize24 inch
BarCapacity3.5 inch
Axis2
MaxRPM1800 rpm
TurningDia32.2 inch
Swing35 inch
MachiningLength35 inch
TailstockYes
Dimensions190inch x 80inch x 98inch
Weight20,100
catalogid1559
mfgMORI SEIKI
mpnSL-65
titleMori Seiki SL-65 CNC Lathes

Zero? Available Machines

Available Machine # Ez12819

  • Stock#:Ez12819
  • Price:Call
  • Year:N/A
  • Region:West
  • Condition:Used

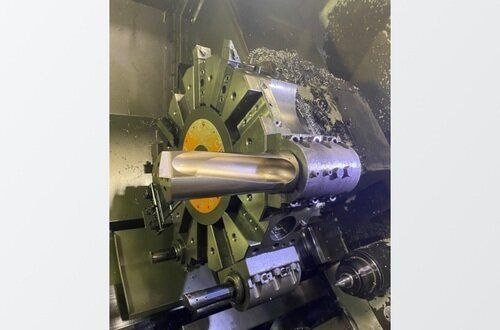

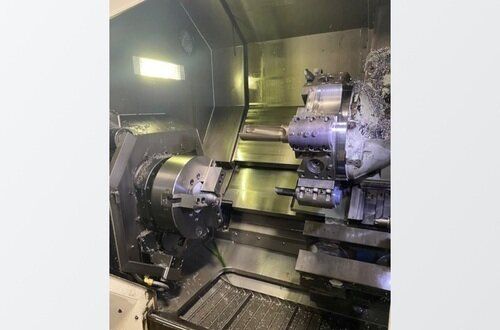

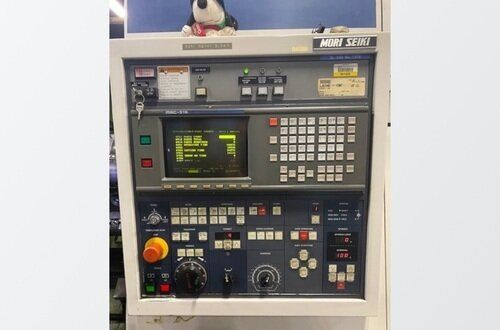

Max Turning Diameter: 32.3" Max Turning Length: 33.9" Max Bar Capacity: 3.5" Swing Over Carriage: 22.0" Swing Over Bed: 35.0" Distance Between Centers: 35.4" X Axis Travel: 17.1" Z Axis Travel: 33.9" Rapid Traverse X Axis: 197 IPM Rapid Traverse Z Axis: 315 IPM Spindle Nose: A1-11 Spindle Bore: 4.1" Spindle Speed: 93 - 1800 RPM Spindle Motor: 50 HP Turret Capacity: 12 Stations Turret Index Time: 1 Second Tailstock Travel: 26.8" Tailstock Quill Dia.: 4.3" Tailstock Quill Stroke: 3.9" Tailstock Taper: MT-4 General: Power Source: AC 220 V, Three Phase, 60 Hz Overall Dimensions: 160" x 80" x 98" High Overall Dimensions: 200" x 80" x 98" High with Chip Conveyor Weight : 20,000 lbs Approx. MORI SEIKI SL-65 Equipped With: 12-Station Turret with Tooling Box Ways Design Long Bed Machine Fanuc 16T CNC Control 21" 3-Jaw Hydraulic Chuck Geared Head spindle for powerful torque Hydraulic Tailstock Chip Conveyor Coolant System. Automatic Lubrication system Foot Operated Control for Chuck Coolant Tank Comes with Chip Conveyor, Tool Holders, Manuals and Parameters Backup.
