Mori Seiki SH-400 Horizontal Machining Centers

Specifications

ModelSH-400
BrandMORI SEIKI
TypeHorizontal Machining Centers
ControlCNC (MSC-518)
X22 inch
Y20 inch
Z20 inch
Power39 HP
RPM12000 RPM
ATC120
PalletW15.75 inch
PalletL15.75 inch
Taper40
Axis4
Length113 inch
Width160 inch
Height99 inch
Weight19140 lbs.
catalogid2133
mfgMORI SEIKI
mpnSH-400
titleMori Seiki SH-400 Horizontal Machining Centers

Zero? Available Machines

Available Machine # Ez12430

  • Stock#:Ez12430
  • Price:Call
  • Year:1998
  • Region:West
  • Condition:Used



Available Machine # Ez8615

  • Stock#:Ez8615
  • Price:Call
  • Year:1998
  • Region:South
  • Condition:Used

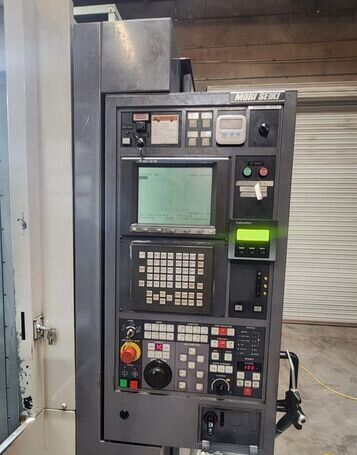

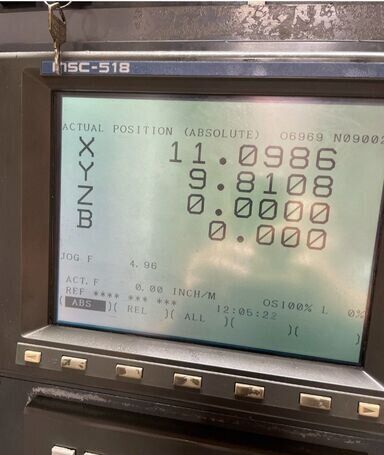

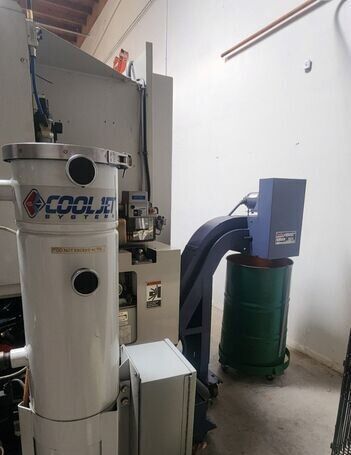

Pallet Size 15.7" (2) Travel: X-Axis 22.0" Y-Axis 20.1" Z-Axis 20.1" Pallet Index 1 Degree Spindle Speed 12,000 RPM Spindle Taper Cat 40 Spindle Motor 30 / 24.8 HP Spindle Torque 123 ft. lbs. Spindle Nose to Table Center 3.9" - 24" Spindle Center to Table Top 2" - 22" Tools 40 Rapid Traverse Rates 1260 IPM Tool Change Time (T - T / C - C) 1.5 / 3.7 Seconds Pallet Load Capacity 1100 lbs. Pallet Change Time 2.5 Seconds Max Tool Diameter 3.1" / 4.9" Max Tool Length 11.8" Max Tool Weight 26.4 lbs. Machine Dimensions (L x W x H) 112.6" x 160.2" x 99.1" Machine Weight 19,140 lbs. FEATURES: MORIC MSC-518 (FANUC 18M) CNC CONTROL 9" Monochrome LCD Rigid Tapping Helical Interpolation Spindle Chiller Unit Shower Coolant Dual Chip Augers Turbo Chip Conveyor (Rear Left Exit)
