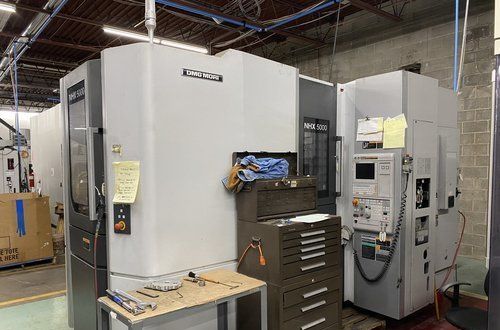

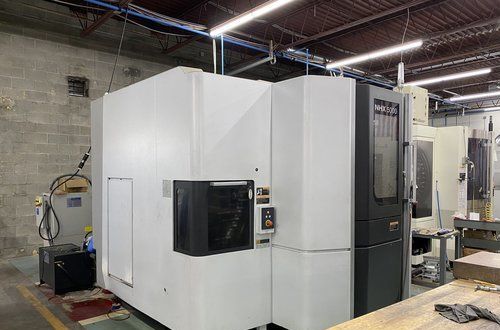

Mori Seiki Nhx5000 Horizontal Machining Center

Specifications

ModelNHX5000
BrandMORI SEIKI
TypeHorizontal Machining Centers
ControlM730BM
X28 inch
Y28 inch
Z34 inch
Power30HP
RPM12,000 RPM
ATC60
PalletW19.7
PalletL19.7
Axis3
TaperCAT40
catalogid909
mfgMORI SEIKI
mpnNHX5000
titleMori Seiki Nhx5000 Horizontal Machining Center

Zero? Available Machines

Available Machine # Ez10569

  • Stock#:Ez10569
  • Price:$169,500
  • Year:2011
  • Region:West
  • Condition:Used

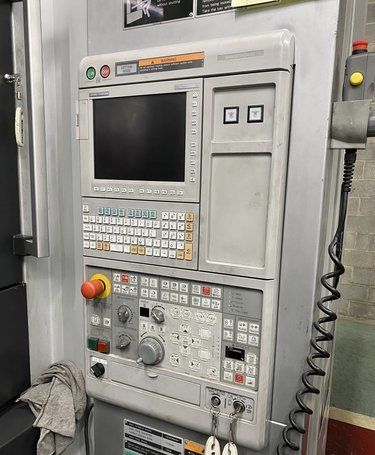

NHX5000/40 MAPPS IV CNC Control 1 Degree B-Axis Pallet Rotation Coolant Thru Spindle Interface Only (Pump and Tank Not Included) Hours available upon request


Available Machine # Ez13539

  • Stock#:Ez13539
  • Price:Call
  • Year:2012
  • Region:West
  • Condition:Used
X: 28 " Y: 28 " Z: 34 "


Available Machine # Ez14147

  • Stock#:Ez14147
  • Price:Call
  • Year:2013
  • Region:West
  • Condition:Used
TRAVELS: --X: 28.7" --Y: 28.7" --Z: 34.6" DISTANCE FROM PALLET SURFACE TO SPINDLE CENTER: 3.1" - 31.9" DISTANCE FROM FLOOR TO PALLET SURFACE: 47.2" NUMBER OF PALLETS: 2 PALLET SIZE: 19.7" X 19.7" PALLET LOAD CAPACITY: 1,100 LBS MAX. WORKPIECE SWING DIAMETER: 31.5" MAX. WORKPIECE HEIGHT: 39.4" MINIMUM PALLET INDEXING INCREMENT: .001 DEGREE MAXIMUM SPINDLE SPEED: 12,000 RPM SPINDLE TAPER: CAT40 SPINDLE MOTOR: 30/18.5 HIGH OUTPUT SPINDLE RAPID TRAVERSE: 2,362 IPM TOOL STORAGE CAPACITY: 60 MAX TOOL WEIGHT: 26.4 LBS TOOL-TO-TOOL TIME: 2.4 SEC FULL 4TH AXIS COOLANT THROUGH SPINDLE CHIP CONVEYOR LIVE HYDRAULIC PREPPED AVAILABLE MANUALS
