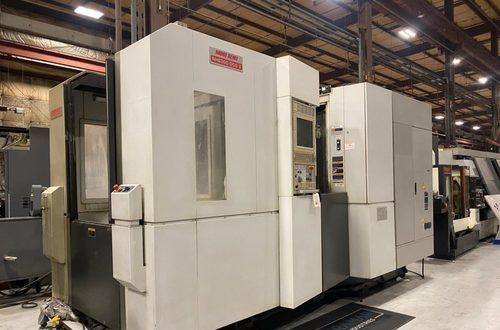

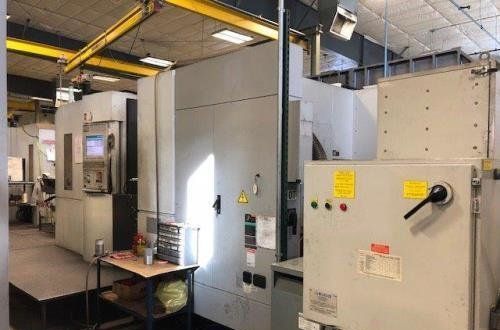

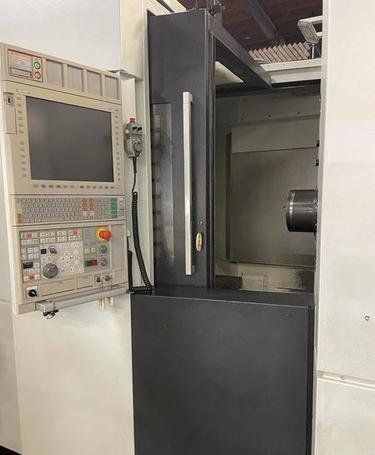

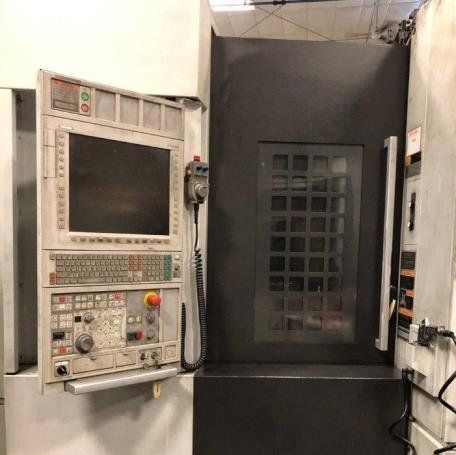

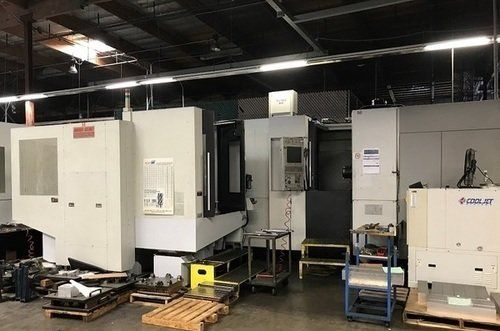

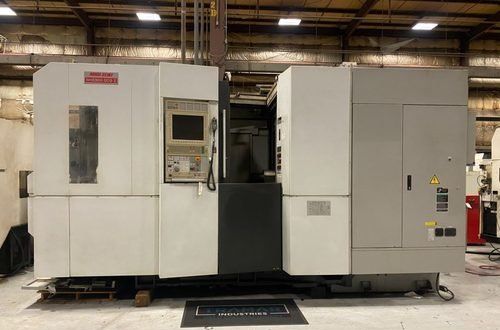

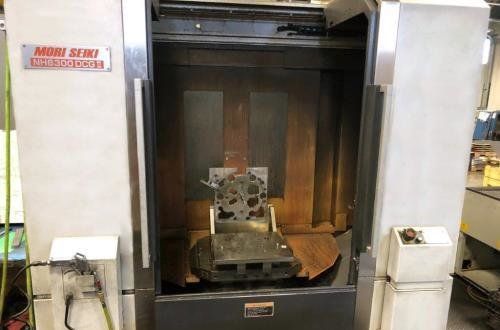

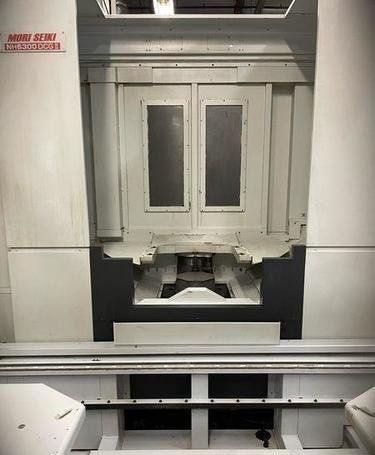

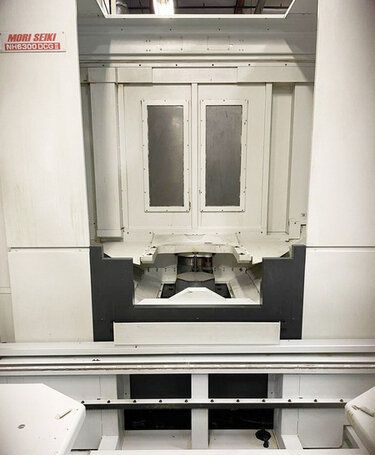

Mori Seiki NH6300 DCGII Horizontal Machining Center

Specifications

BrandMORI SEIKI
ModelNH6300 DCGII
TypeHorizontal Machining Centers
ControlFS-31iA Control (MAPPS 4)
X41.3 inch
Y35.4 inch
Z38.6 inch
RPM10,000 RPM
ATC60
PalletW24.8 inch
PalletL24.8 inch
Axis4
Taper50
Length133"
Weight45,000 Lbs
Width234"
Height135"
Power50 HP
catalogid2995
mfgMORI SEIKI
mpnNH6300 DCGII
titleMori Seiki NH6300 DCGII Horizontal Machining Center

Zero? Available Machines

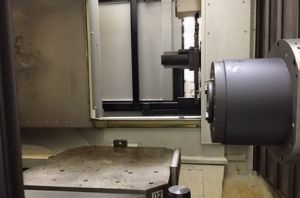

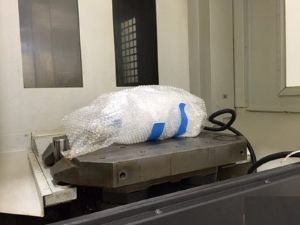

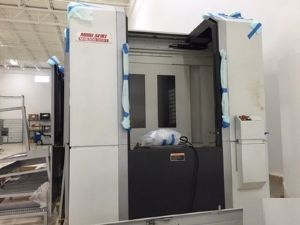

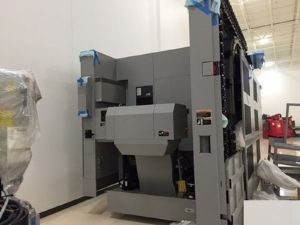

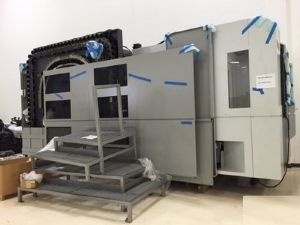

Available Machine # Ez15563

  • Stock#:Ez15563
  • Price:$375,000
  • Year:2012
  • Region:Midwest
  • Condition:Used
Specifications: Pallet Size 24.8" x 24.8" x (2) Max Table Load 1,763 Lbs X Axis Travel 55" Y Axis Travel 47" Z Axis Travel 47" Spindle Taper CT50 Spindle Motor 50/40 HP Spindle Speed 8,000 RPM B Axis Full 4th Tool Stations 100 Chain Style Rapid Traverse Rates 1,968 IPM Max Tool Length 24" Max Tool Weight 66 Lbs Machine Weight 42,000 Lbs Machine Dimensions 234"L x 133"W x 135"H Equipped With: FS-31iA (MAPPS 4) CNC Control Chip Conveyor Full 4th Axis Coolant Tank & Pump Plumbed for TSC 6GB Memory 200 Offsets Custom Macros Tool Life Management Uni-Directional Positioning

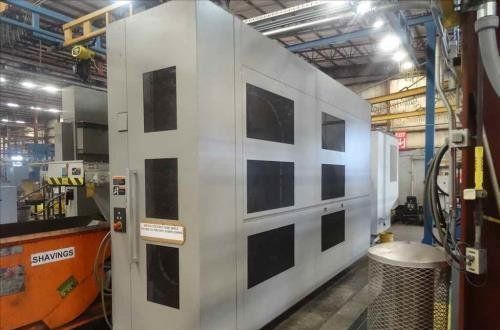

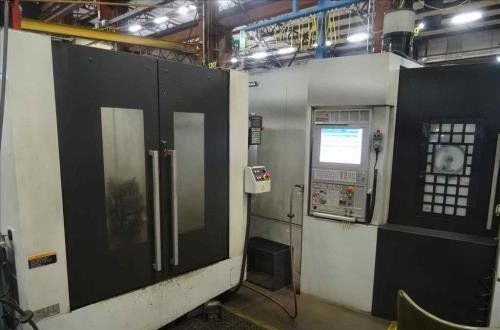

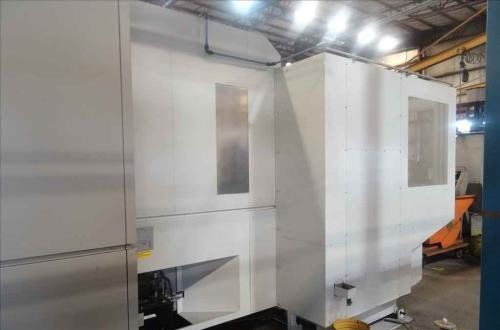

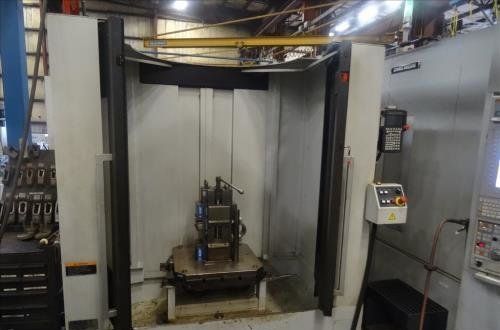

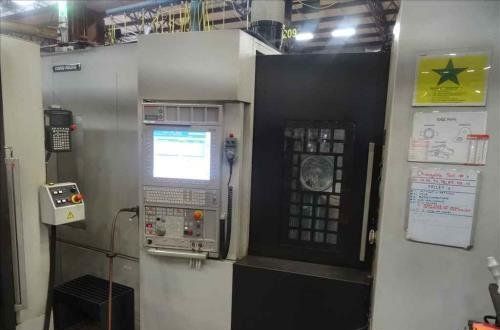

Available Machine # Ez13817

  • Stock#:Ez13817
  • Price:Call
  • Year:2014
  • Region:West
  • Condition:Used

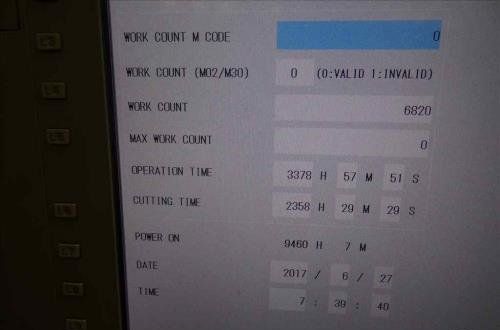

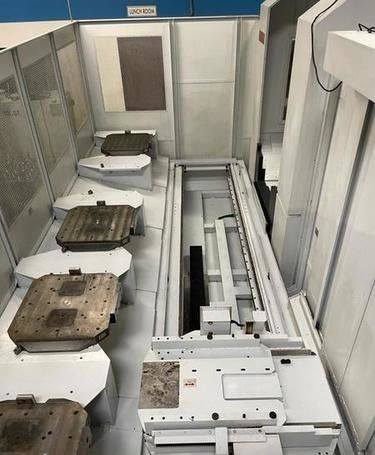

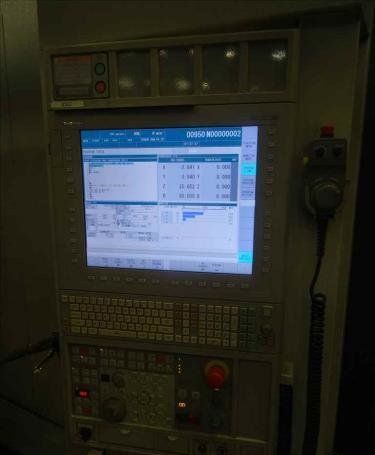

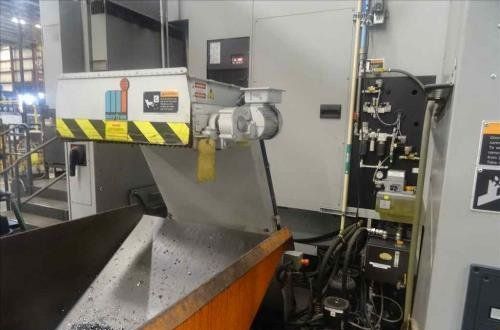

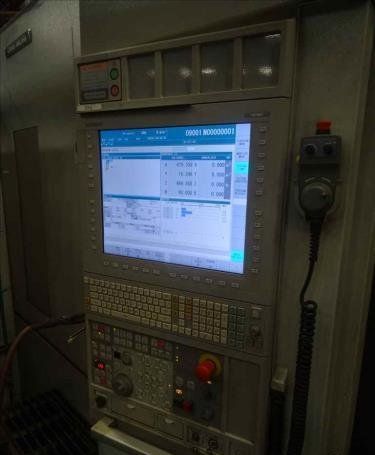

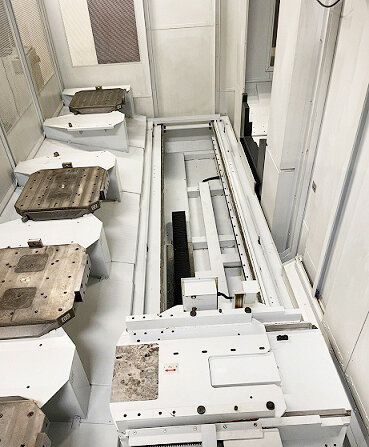

RAVELS: --X: 41.3" --Y: 35.4" --Z: 38.6" DISTANCE FROM PALLET SURFACE TO SPINDLE CENTER: 3.9" - 39.4" DISTANCE FROM PALLET CENTER TO SPINDLE GAUGE PLANE: 3.9" - 42.5" DISTANCE FROM FLOOR SURFACE TO PALLET SURFACE: 49.2" PALLET SIZE: 24.8" X 24.8" PALLET LOADING CAPACITY: 3300 LBS MAX WORKPIECE SWING DIAMETER: 41.3" MAX WORKPIECE HEIGHT: 51.1" SPINDLE SPEED: 10,000 RPM SPINDLE TAPER: HSK-A100 TOOL CHANGE: 120 ATC MAX. TOOL DIAMETER WITH ADJACENT TOOLS: 4.3" MAX. TOOL DIAMETER WITHOUT ADJACENT TOOLS: 12.5" MAX. TOOL LENGTH: 24.8" MAX. TOOL. WEIGHT: 66 LBS X-AXIS TRAVERSE SPEED: 1968.5 IPM Y-AXIS TRAVERSE SPEED: 1968.5 IPM Z-AXIS TRAVERSE SPEED: 1574.8 IPM POWER ON HOURS: 9460 OPERATION HOURS: 3378 CUTTING HOURS: 2358 1 DEG. B-AXIS INDEXING MORI MSX-701 CNC CONTROL 6-STATION PALLET SYSTEM 1,000 PSI COOLJET COOLANT UNIT MIST COLLECTOR CHIP CONVEYOR
