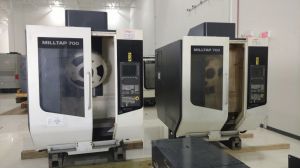

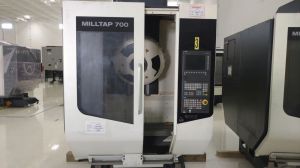

Mori Seiki Mill TAP 700 Vertical Machining Center

Specifications

ModelMILL TAP 700
BrandMORI SEIKI
TypeVertical Machining Centers
ControlCNC SIEMENS 840D
X27.5 inch
Y0.6496 inch
Z0.5866 inch
Power40.2 HP
RPM10K RPM
ATC25
Taper30
Weight7,480 Lbs
Length92 inch
Width65 inch
Height98 inch
catalogid57
mfgMORI SEIKI
mpnMILL TAP 700
titleMori Seiki Mill TAP 700 Vertical Machining Center

Zero? Available Machines

Available Machine # Ez19553

  • Stock#:Ez19553
  • Price:Call
  • Year:2013
  • Region:West
  • Condition:Used
Features SIEMENS 840 DSL Control Mori DDRT-200X Rotary Table (fast, accurate 4th Axis) MP Systems High Pressure coolant pump/thru spindle (Max 1000psi @ 3GPM) Farris hinged belt chip conveyor Machines are outfitted with hydraulic lines and electronics to utilize a fixture with hydraulic clamping via M-code in the program Ability for proximity sensor/ plunger-probe tool breakage detection system


Available Machine # Ez15390

  • Stock#:Ez15390
  • Price:$67,500
  • Year:2013
  • Region:Midwest
  • Condition:Used

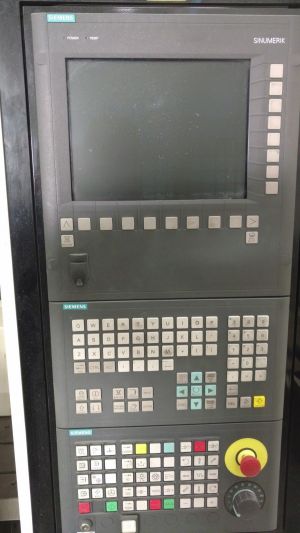

2013 DMG Mori Seiki 700 MillTap With Table Probe Specifications: Table Size 33" x 16.5" Max Table Load 880 Lbs. X Axis Travel 27.6" Y Axis Travel 16.5" Z Axis Travel 15" Rapid Traverse Rates 2,362 IPM Spindle Nose to Table Top 7.9" - 22.8" Spindle Speed 24,000 RPM Spindle Motor 18/5.4 HP Spindle Taper BT30 Tool Stations 25 Drum Machine Weight 7,500 Lbs Machine Dimensions 65"L x 92"W x 98"H Equipped With: Seimens 840D CNC Control Upgraded 25 Station ATC Upgraded 24,000 RPM Spindle Plumbed for Thru Spindle Coolant Chip Conveyor Manual Pulse Handwheel Coolant Tank & Pump


Available Machine # Ez802

  • Stock#:Ez802
  • Price:$69,000
  • Year:2014
  • Region:South
  • Condition:Used
Equipped with: Siemens 640 CNC Control Optional 25 Station Automatic Toolchanger 6-Holders All Available Manuals
