Mori Seiki MV-45/40 Vertical Machining Center

Specifications

ModelMV-45/40
BrandMORI SEIKI
TypeVertical Machining Centers
ControlCNC (FANUC 11M)
X31.5 inch
Y18 inch
Z20 inch
Power5.5 HP
RPM6,000 RPM
ATC20
TableW18 inch
TableL44 inch
TaperCAT-40
Axis3
Weight17,000 lbs.
Length128 inch
Width117 inch
Height110 inch
catalogid62
mfgMORI SEIKI
mpnMV-45/40
titleMori Seiki MV-45/40 Vertical Machining Center

Zero? Available Machines

Available Machine # Ez11198

  • Stock#:Ez11198
  • Price:Call
  • Year:1984
  • Region:Midwest
  • Condition:Used
X-TRAVEL: 30" Y-TRAVEL: 18" Z-TRAVEL: 20" SPINDLE SPEED: 6000 PALLET SIZE: 43.3" x 17.7"


Available Machine # Ez11199

  • Stock#:Ez11199
  • Price:Call
  • Year:1984
  • Region:Midwest
  • Condition:Used
MORIC -2Y Control. X-TRAVEL: 31" Y-TRAVEL: 18" Z-TRAVEL: 20" SPINDLE SPEED: 6,000 PALLET SIZE: 44" x 18"

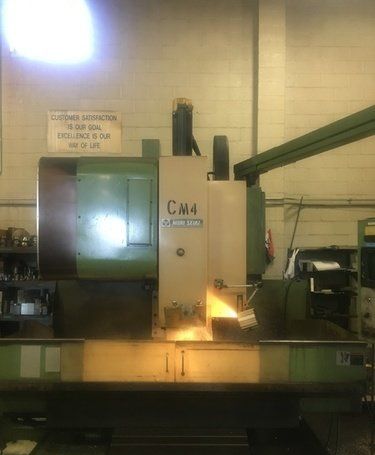

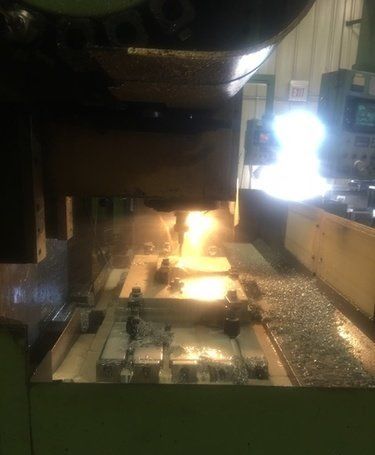

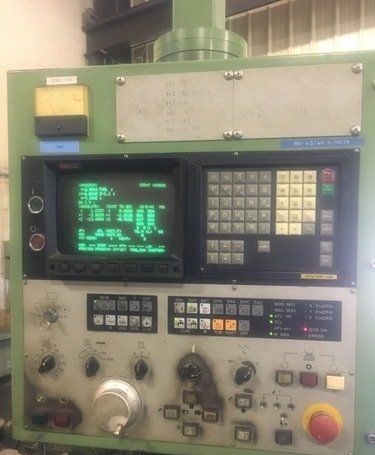

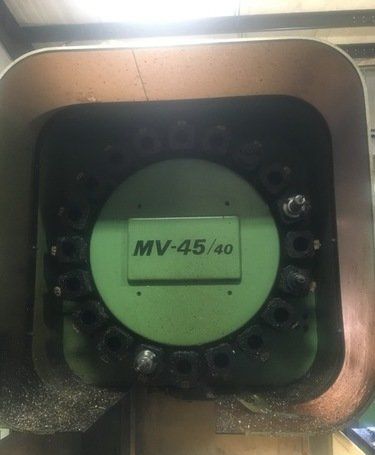

Available Machine # Ez14283

  • Stock#:Ez14283
  • Price:$8,000
  • Year:1988
  • Region:Midwest
  • Condition:Used
Specifications: Table Size: 43” X 17.7” X Axis Travel: 31.5” Y Axis Travel: 17.7” Z Axis Travel: 19.7” Spindle Horsepower: 10 HP Spindle Speed: 6,000 RPM Spindle Taper: CT40 Tool Changer: 20 ATC Machine Weight: 17,000 Lbs Machine Dimensions: 128” x 117” x 110” Equipped With: Fanuc Control Coolant System Chip Conveyor


Available Machine # Ez15882

  • Stock#:Ez15882
  • Price:$14,000
  • Year:N/A
  • Region:West
  • Condition:Used
Fanuc: 10M Feedrates: 0.1 - 197 IPM Machine Dimensions LxWxH: 118"x132"x114" Machine Weight Aprx: 16,000 lbs Max. Tool Diameter / Length 4.9" / 9.8" Rapid Traverse X, Y / Z: 787 IPM / 590 IPM Spindle Motor: 10 HP Spindle Speed: 6,000 RPM Spindle Taper: BT# 40 Taper Table Load Capacity 1,540 lbs. Table Size: 43.3" x 17.77" Tool Magazine Capacity: 20 Position ATC X-Axis Travel: 30" Y-Axis Travel: 17.7" Z-Axis Travel: 19.7" All Boxed Way Design Spindle Oil Cooler Tsudakoma 11" 4th Axis All Available Tooling
