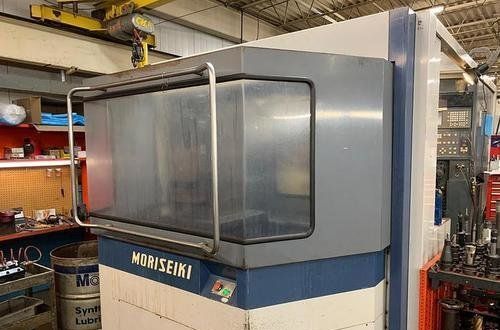

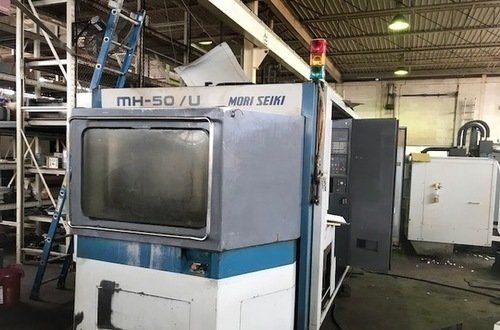

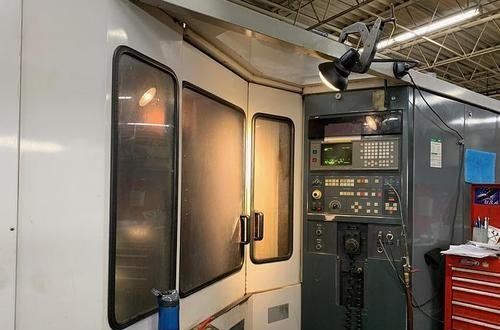

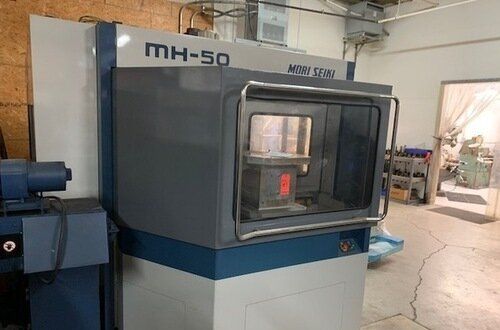

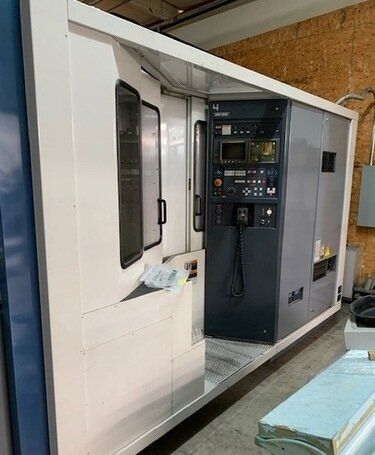

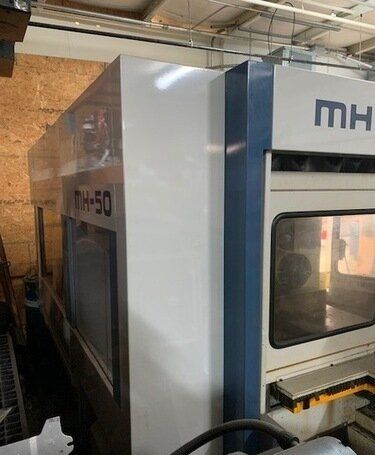

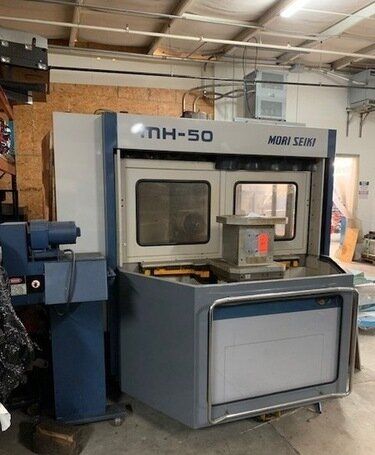

Mori Seiki MH-50 Horizontal Machining Center

Specifications

ModelMH-50
BrandMORI SEIKI
TypeHorizontal Machining Centers

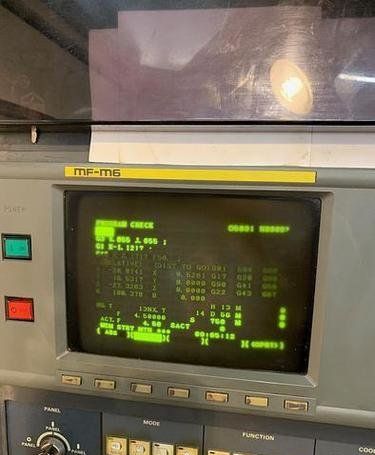

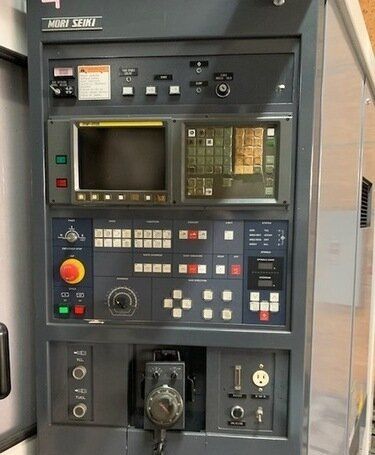

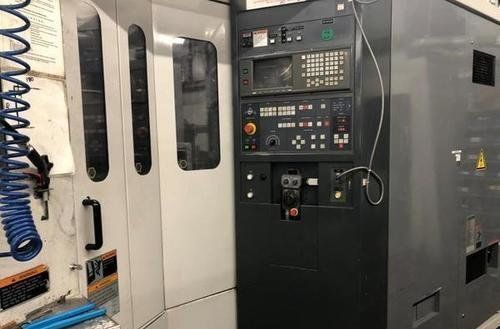

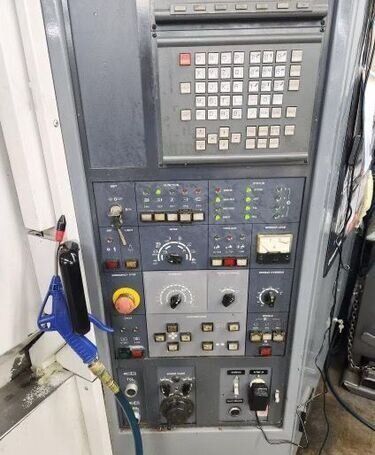

ControlCNC (FANUC 15M)
X27.95 inch
Y24.02 inch
Z23.62 inch
RPM6000 rpm

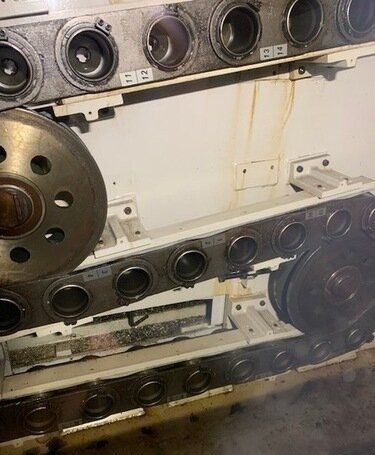

ATC120

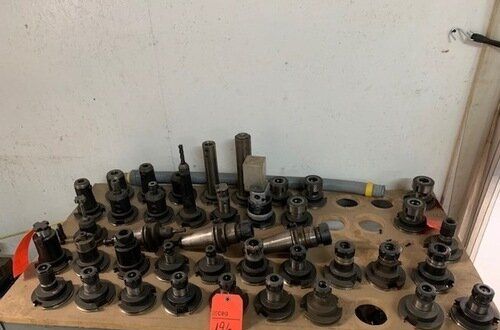

TaperBT50
Weight30,800 LBS
Length108.66 inch
Width202.05 inch
Height100.32 inch
catalogid896
mfgMORI SEIKI
mpnMH-50
titleMori Seiki MH-50 Horizontal Machining Center

Zero? Available Machines

Available Machine # Ez19571

  • Stock#:Ez19571
  • Price:$20,000
  • Year:N/A
  • Region:West
  • Condition:Used

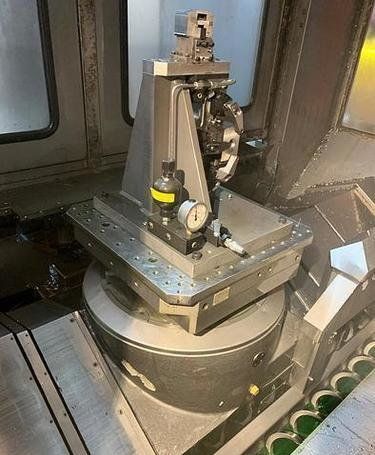

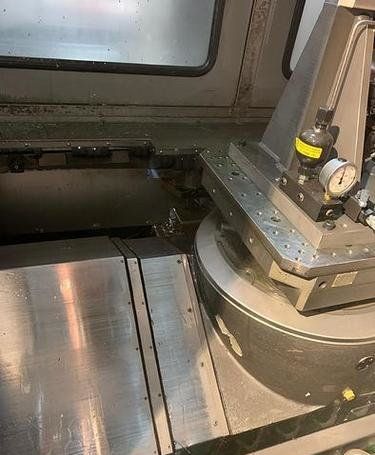

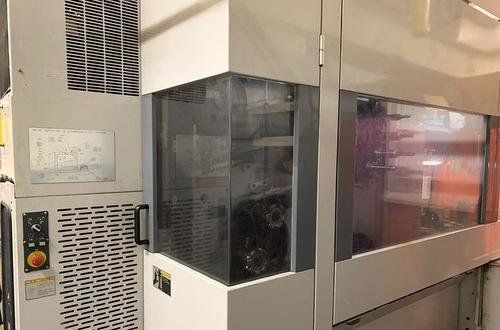

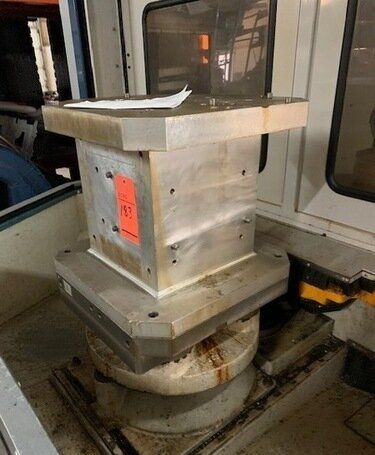

Table Size: 19.69" X 19.69 Table Load Capacity: 2,200 LBS Table Index: 1 Deg X-Axis Table Travel: 31.5" Y-Axis Saddle Travel: 25.59" Z-Axis Spindle Head Travel: 29.53" Maximum Distance Spindle To Table: 1.97-27.56 Rapid Traverse Rate: 787 IPM ON X Y Z Spindle Taper: 50 Taper Spindle Speeds: 60 - 6000 RPM Spindle Drive Motor: 33.5 HP Automatic Tool Changer: 40 Positions Tool To Tool Time: 2.0 Sec Chip To Chip Time: 6.2 Sec Max Workpiece Diameter: 35.43" Max Workpiece Height: 35.43" Maximum Tool Diameter: 4.72" Maximum Tool Length: 19.69" Maximum Tool Weight: 66 LB Pallet Change Time: 9 Sec Approximate Dimensions: (L X W X H): 108.66 X 202.05 x 100.32 Machine Weight: 30,800 LBS
