Mori Seiki GV-503 Vertical Machining Centers

Specifications

BrandMORI SEIKI
ModelGV-503
TypeVertical Machining Centers
ControlCNC (MSG-805)
X24 inch
Y20.1 inch
Z18.1 inch
Power15 hp
RPM12000 rpm
ATC30
TableW29.5 inch
TableL21.7 inch
TaperCAT 40
Axis4
Dimensions157 x 88 x 114
Weight22,220
catalogid2351
mfgMORI SEIKI
mpnGV-503
titleMori Seiki GV-503 Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez18607

  • Stock#:Ez18607
  • Price:$19,500
  • Year:2000
  • Region:West
  • Condition:Used
Mori Seiki GV-503 VMC 2000 MSG-805 CNC Control Two Pallet Changer Chip Conveyor Category: Machining Centers Sub Category: Vertical Machining Centers Stock No. 5917 Age: 2000 Serial #: 55 Location: Fullerton, CA. Pallet Size 29.5" x 21.7" No. of Pallets 2 Table Load Capacity 660 lbs. Pallet Change Time 6.5 sec. X-Axis Travels 24" Y-Axis Travels 20.1" Z-Axis Travels 18.1" Spindle Speed 12000 RPM Motor 15 HP Taper 40 Tool Changer 30-ATC Max. Tool Diameter 3.1" Max. Tool Length 11.8" Max. Tool Weight 17.6 lbs. Tool-Tool Change Time 0.9 sec. Chip-Chip Change Time 3.7 sec. Approx. Dimensions 157" x 88" x 114" Approx. Weight 23,148 lbs. Equipped With: Mori Seiki MSG-805 CNC Control, Two Pallet Changer, and Chip Conveyor.


Available Machine # Ez13650

  • Stock#:Ez13650
  • Price:$34,500
  • Year:2000
  • Region:South
  • Condition:Used

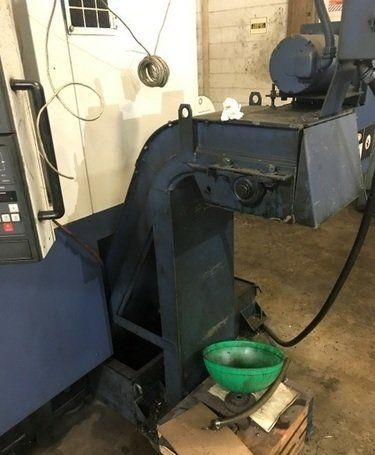

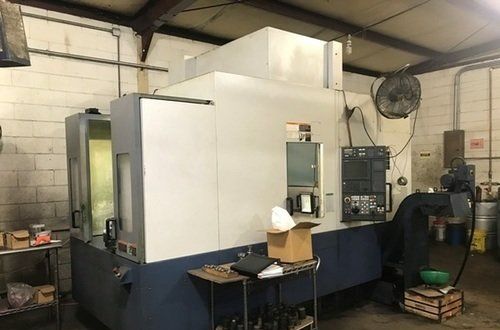

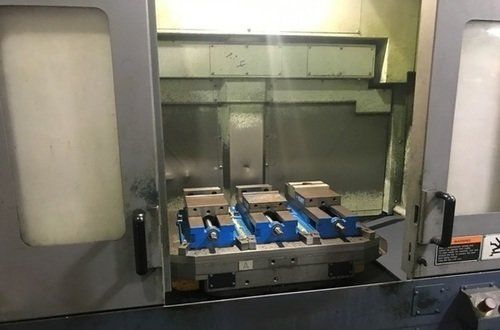

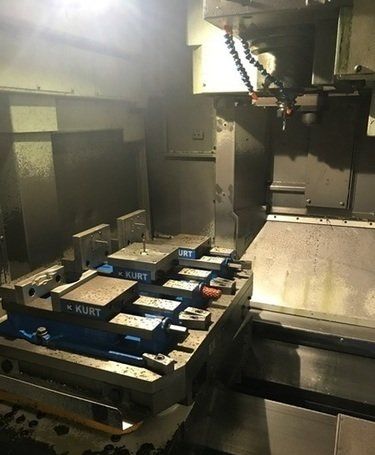

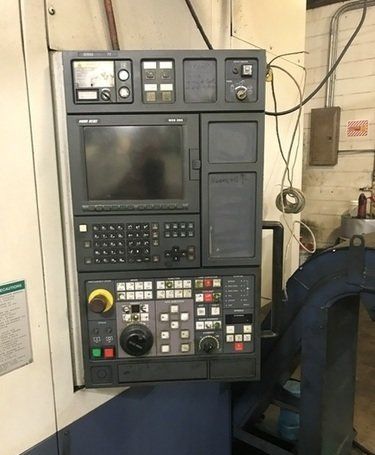

2000 MORI SEIKI GV-503 + 2APC Travel: X-Axis 24.0" Y-Axis 20.1" Z-Axis 18.1" Table Size 29.5" x 21.7" (2) Spindle Speed 12,000 RPM Spindle Taper # 40 Spindle Nose to Table Top 5.9" - 24" Spindle Motor 15 / 10 HP Tools 30 Tool Change Time (T - T / C - C) 0.9 / 3.7 Seconds Table Load Capacity 660 lbs. Pallet Change Time 6.5 Seconds Rapid Traverse Rates 1653 IPM Max Tool Diameter 3.1" Max Tool Length 11.8" Max Tool Weight 17.6 lbs. Machine Dimensions (L x W x H) 157" x 87.9" x 113.9" Machine Weight 22,220 lbs. FEATURES: MORIC MSG-805 (MITSUBISHI M65) CNC CONTROL 10.4" Color LCD MAPPS Conversational Programming Auto Two Pallet Changer (Spin Type) Coolant Thru Spindle Interface 30 Position Side Mount Tool Changer Shower Coolant Spindle Chiller Unit Turbo Chip Conveyor (Rear Right Discharge)
