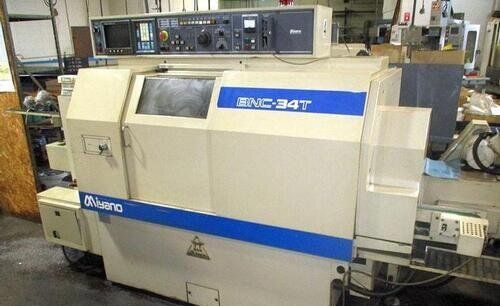

Miyano BNC-34T CNC Lathe

Specifications

ModelBNC-34T
BrandMIYANO
TypeCNC Lathes
ControlCNC (FANUC 0T)

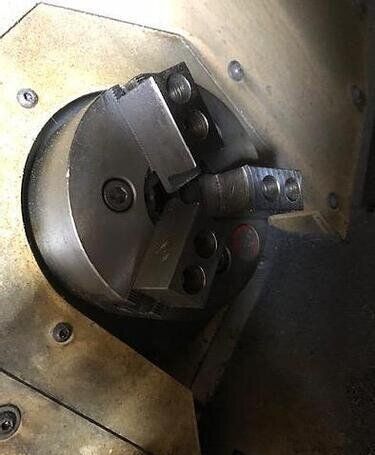

ChuckSize5 inch
BarCapacity1.375 inch
Axis3
Power10 HP
MaxRPM5,000 RPM
TurningDia4.75 inch
Swing3 inch
MachiningLength9 inch
TailstockNo
Dimensions59inch X 100inch 67inch
Weight6,200 lbs
Length100 inch
Width59 inch
Height67 inch
catalogid1465
mfgMIYANO
mpnBNC-34T
titleMiyano BNC-34T CNC Lathe

Zero? Available Machines

Available Machine # Ez2299

  • Stock#:Ez2299
  • Price:Call
  • Year:1990
  • Region:Midwest
  • Condition:Used

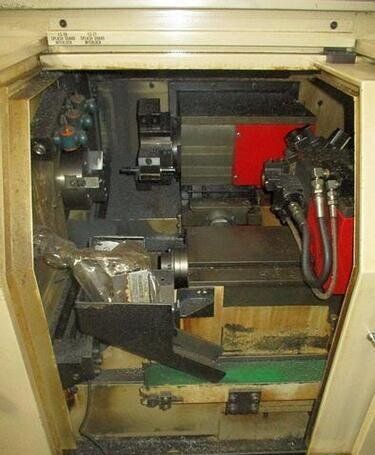

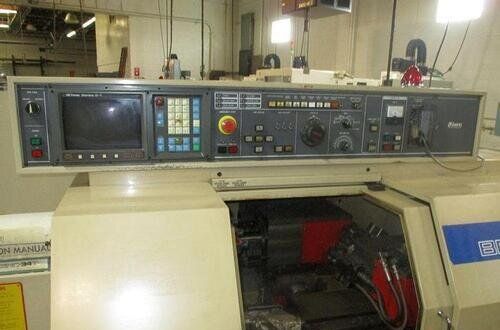

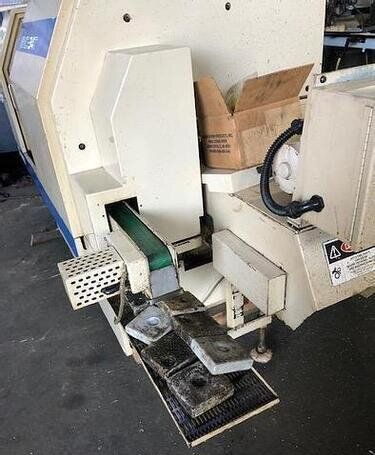

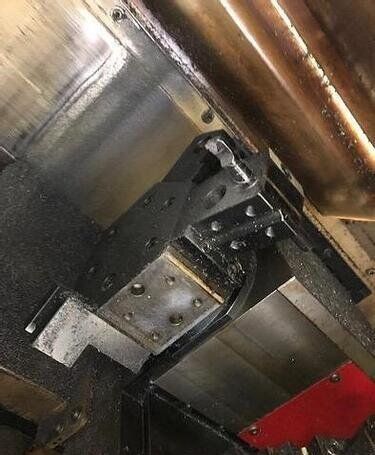

Fanuc OT CNC Control with CRT, RS232 Port for DNC System, Spindle Load Meter,(2) 6 Station Turrets, Programmable End Working Turret Provides 3 Axis Simultaneous Cutting Capability, CNC Iemca 12 ft Magazine load Barfeeder, Programmable Part Catcher w/ Parts Conveyor, Heavy Duty Slant Bed Construction, Chip Conveyor,Coolant System.


Available Machine # Ez9424

  • Stock#:Ez9424
  • Price:$9,000
  • Year:1992
  • Region:Midwest
  • Condition:Used
Specifications: Control Fanuc OT Max Bar Capacity 1-5/16" Max Swing Over The Cross Slide 10.62" Max Part Length 7-7/8" Max Turning Diameter 4-3/4" X-Axis Travel 3-7/8" Z-Axis Travel 11-3/8" Number Of Turrets 2 Turret Positions 6/each Spindle Speed Range 170-5,000 RPM Spindle Drive Motor 10 HP Approximate Dimensions 100" x 59" x 67"H Approximate Weight 6,200 Lbs. Equipped With: Fanuc O-T Control Parts Catcher With Parts Conveyor System (2) 6-Station Turrets RS-232 Port Coolant System Miscellaneous Tooling Manuals


Available Machine # Ez9905

  • Stock#:Ez9905
  • Price:$19,900
  • Year:1995
  • Region:West
  • Condition:Used
Chuck Size 5 " Bar Capacity 1.375 " # Axis 3 Power 10 hp Max RPM 5000 rpm Turning Dia 4.75 " Swing 6.5 " Machining Length 7.9 " Tailstock No Dimensions 59" X 100" 67" Weight 6200 lbs. Control CNC (FANUC 0T). Clean single shift 1995 Miyano BNC-34T with rear turret, chip conveyor, parts catcher, Fanuc 0T Control
