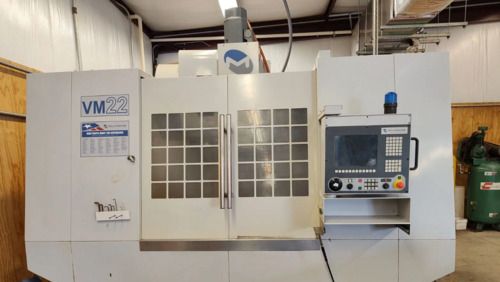

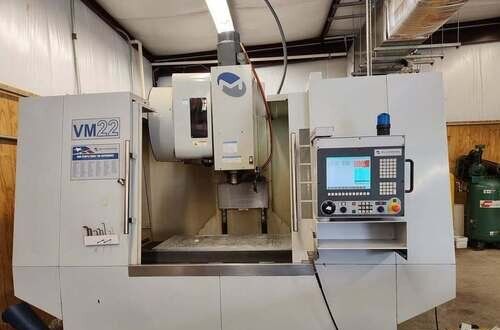

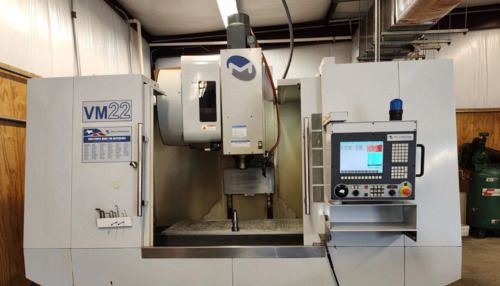

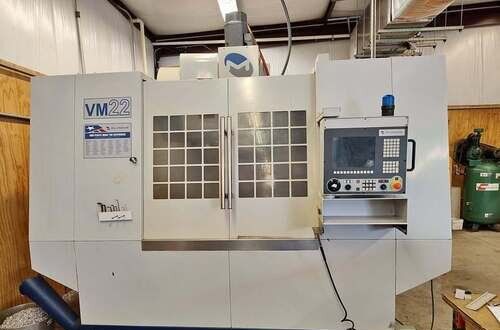

Milltronics VM22IL Vertical Machining Center

Specifications

ModelVM22IL
BrandMilltronics
TypeVertical Machining Centers

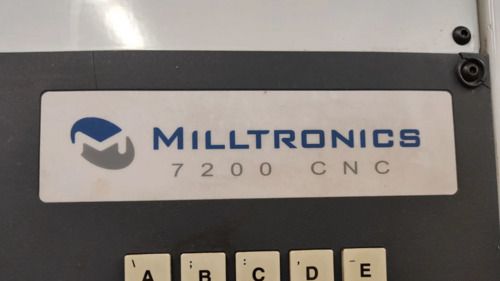

ControlMilltronics 8200-B Series CNC
ATC24 pocket double arm

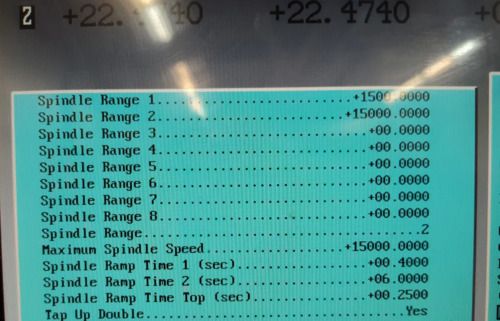

RPM10,000 RPM
Power24/15 HP
X40"
Y22"
Z26"

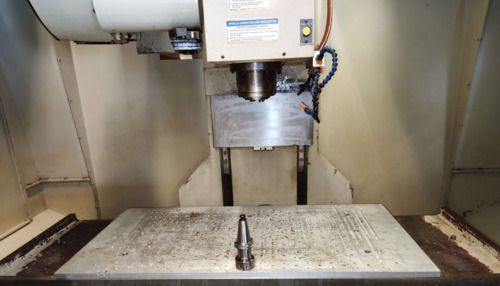

TableL45"
TableW24"
TaperCT40
Weight16,000 lbs.
Width125"
Length109"
Height120"
catalogid5244
mfgMilltronics
mpnVM22IL
titleMilltronics VM22IL Vertical Machining Center

Zero? Available Machines

Available Machine # Ez17062

  • Stock#:Ez17062
  • Price:$79,000
  • Year:2012
  • Region:West
  • Condition:Used
STANDARD FEATURES Milltronics 8200-B Series CNC control 24 pocket double arm ATC 10,000 RPM inline spindle BIG-PLUS® dual contact spindle Coolant Through Spindle Ready Automatic lubrication Chip auger 2 Speed 24/15 HP Inline spindle motor Spindle Chiller Spindle Air Purge Inverted X axis rail design Roller Type Linear Ways on all axes Flood coolant 1000 ipm rapid traverse rate (X,Y) Work light Rigid tapping LCD hour meter Single spare “M” function 12" LCD color display Solid model graphic display 1 GB program storage memory DXF file import Full Enclosure Networking SPECIFICATIONS CAPACITY: X axis travel: 40" (1015 mm) Y axis travel: 22" (560 mm) Z axis travel: 26" (660 mm) Table size: 45" x 24" (1150 mm x 610 mm) Allowable table load: 3500 lbs. (1580 kg) T-Slot size: .63" (16 mm) SPINDLE: Spindle gage line to table distance: 4.25"-30.25" (110-770 mm) Column to spindle center: 23" (580 mm) Spindle taper: ISO No. 40 Big Plus® Spindle speed (Std): 10,000 RPM Spindle speed (Opt): 15,000 RPM AC spindle motor (Std): 24/15 HP (18/11 kW) Inline Delta/WYE AC spindle motor (Opt): 35/25 HP (26/18 kW) Inline Delta/WYE Spindle torque (Std): 85ft-lbs (115 N.m) Spindle torque (Opt): 122 ft-lbs (165 N.m) AUTOMATIC TOOL CHANGER: Number of tools: 24 Tool shank: CT40 Pull stud MAS 60° Retention Knob Style CT-Flange 40 Taper Max. tool diameter/adjacent pot empty: 4”/5" (100 mm / 125 mm) Max. tool length: 9” (230 mm) Max. tool weight: 15 lbs. (7 kg) MOTION: X, Y, Z axis rapid traverse rate: 1000 IPM (25.4 m/min) Max. cutting feed rate: 500 IPM (12.5 m/min) Least command increment: 0.0001" (0.001 mm) Positioning accuracy: +/- 0.0002" (+/- 0.005 mm) Repeatability: 0.00015" (0.0038 mm) X axis thrust (peak): 3312 lbs (1502 kg) Y axis thrust (peak): 3312 lbs (1502 kg) Z axis thrust (peak): 6464 lbs (2932 kg) GENERAL: Machine Height: 120" (3050 mm) Floor Space Required (W x D): 125" x 109" (3175 x 2770 mm) Machine Weight: 16,000 lbs. (7300 kg) Power required: 48 KVA / 125 amps Voltage required: 208-240 Volts / 3 Phase
