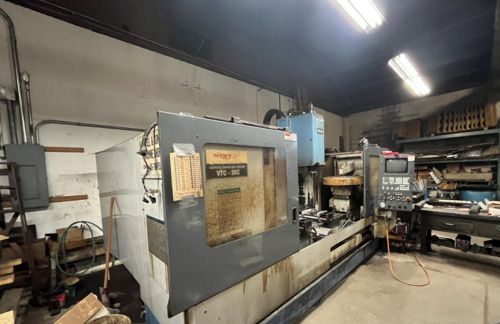

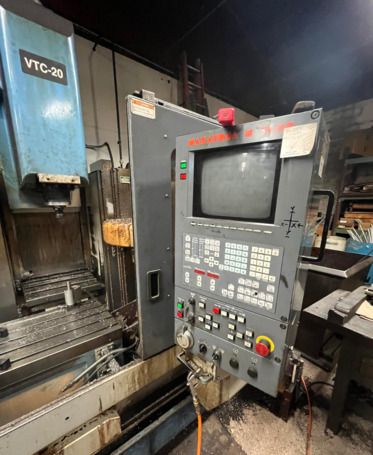

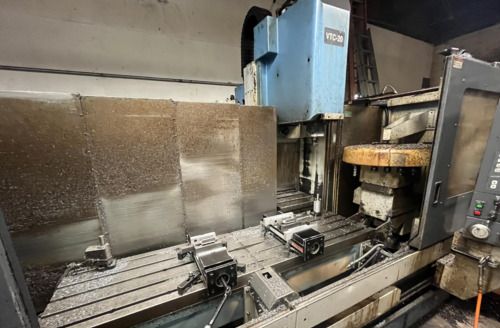

Mazak VTC-20C Vertical Machining Centers

Specifications

ModelVTC-20C
BrandMAZAK
TypeVertical Machining Centers
ControlCNC (MAZATROL M32B)
X65.35 inch
Y20.08 inch
Z20.08 inch
Power20 hp
RPM7000 rpm
ATC48
TableW20 inch
TableL79 inch
TaperCAT-40
Weight13200 LBS
Axis3
Length170 inches
Width117 inches
Height106 inches
catalogid42
mfgMAZAK
mpnVTC-20C
titleMazak VTC-20C Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez740

  • Stock#:Ez740
  • Price:$43,000
  • Year:1996
  • Region:Midwest
  • Condition:Used
Specifications: Table Size: 78.74” x 20.10” X Axis Travels: 65.35” Y Axis Travels: 20.08” Z Axis Travels: 20.08” Table to Spindle Nose: 7.9” to 27.16” Spindle Speeds: 7,000 RPM Spindle Taper: CAT 40 Feed Rates (X,Y): 787 IMP Feed Rates (Z): 590 IPM Cutting Feed Rate: 0.04-196.9 IPM Jog Feed Rate: 0.08-78.7 IPM Tool Changer: 48 Tools Max. Tool Diameter: 3.1” Max. Tool Weight: 17.6 LBs Max. Tool Length: 13.8” Main Motor: 20HP Approx. Weight: 14,000 lbs Equipped With: Mazatrol M 32B Controls Dual Tool Changer – 24 position each Chip Conveyor Dual Touch Probes


Available Machine # Ez736

  • Stock#:Ez736
  • Price:Call
  • Year:N/A
  • Region:Midwest
  • Condition:Used
