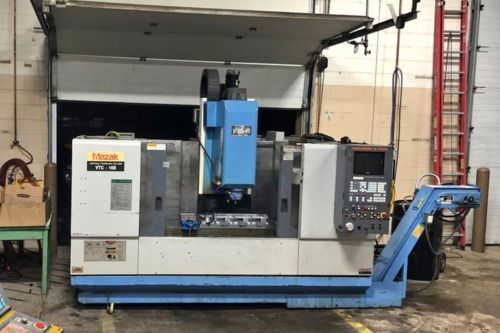

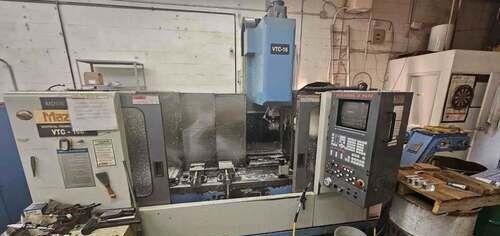

Mazak VTC-16B Vertical Machining Centers

Specifications

ModelVTC-16B
BrandMAZAK
TypeVertical Machining Centers
ControlCNC (MAZATROL M32B)
X44 inch
Y16 inch
Z20 inch
Power15 hp
RPM8000 rpm
ATC24
TableW16 inch
TableL57.48 inch
TaperCAT-40
Weight12000 lbs
Axis3
Length118
Width116
Height106
catalogid37
mfgMAZAK
mpnVTC-16B
titleMazak VTC-16B Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez20690

  • Stock#:Ez20690
  • Price:$17,500
  • Year:1995
  • Region:South
  • Condition:Used



Available Machine # Ez18125

  • Stock#:Ez18125
  • Price:$17,500
  • Year:1996
  • Region:South
  • Condition:Used
Product Details: Machine Dimensions (L x W x H) 118.11" x 116" x 106"Machine Weight 11,000 lbs.Max Tool Diameter 3.14" / 4.33"Max Tool Length 13.8"Max Tool Weight 13.78 lbs.Rapid Traverse Rates (X & Y / Z) 787 / 590 IPMSpindle Motor 15 / 10 / 7.5 HP ACSpindle Nose to Table Top 4.3" - 24.4"Spindle Speed 40 - 8000 RPMSpindle Taper CAT 40Table Load Capacity 1120 lbs.Table Size 57.48" x 16.1"Tool Change Time (C - C) 9 SecondsTools 24X-Axis 44.09"Y-Axis 16.14"Z-Axis 20.08" Features: MAZATROL M-32B CNC CONTROL 12" Monochrome CRT Conversational Programming EIA/ISO Input Function Graphic Display Rigid Tapping Helical Interpolation Chip Conveyor (Right Side Exit) Auto Tool Length Measurement Manufacture Date May 1996
