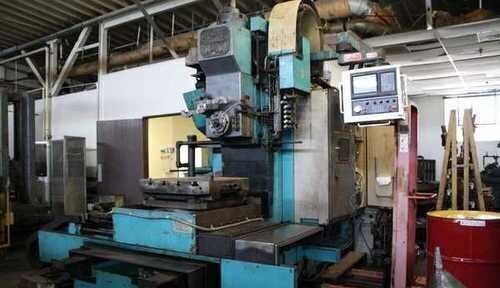

Mazak Power Center H-20 Horizontal Machining Centers

Specifications

ModelPOWER CENTER H-20
BrandMAZAK
TypeHorizontal Machining Centers
ControlCNC (FANUC 6MB)
Dimensions142 x 146 x 131
Weight35000 (LBS)
RPM1000 rpm
Length142 inch
Width146 inch
Height131 inch
X43.3 inch
Y33.4 inch
Z29.5 inch
PowerDC 20HP
catalogid2056
mfgMAZAK
mpnPOWER CENTER H-20
titleMazak Power Center H-20 Horizontal Machining Centers

Zero? Available Machines

Available Machine # Ez3408

  • Stock#:Ez3408
  • Price:$19,500
  • Year:1986
  • Region:West
  • Condition:Used

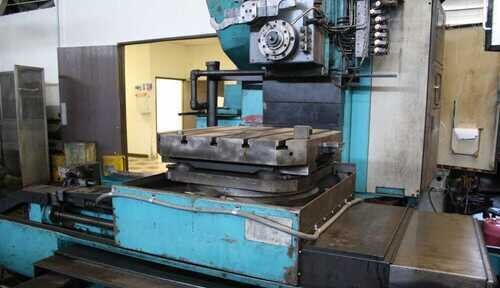

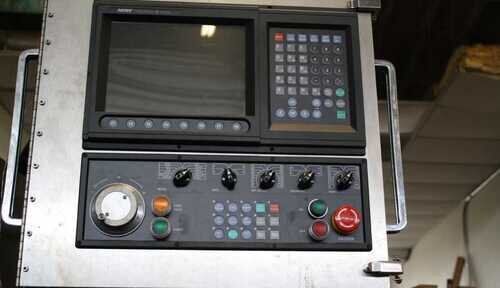

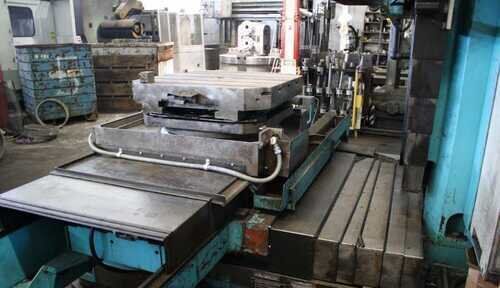

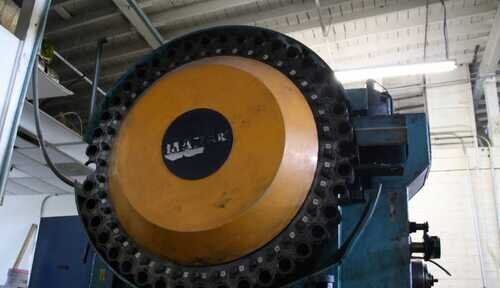

MAKE: MAKAK MDL: POWER CENTER H-20 YR: 1986/2010 ELECTRONICS CONTROL: HUST H4CL-M PALLET SIZE (2): 31.5"SQ PALLET LOAD CAPACITY: 2,220 LBS SPINDLE CENTER LINE TO PALLET TOP: 0"-34" SPINDLE NOSE TO TABLE CENTERLINE: 2"-36" HEIGHT OF PALLET TOP FROM FLOOR: 45.3" X-43.3" Y-33.4" Z-29.5" RAPID TRAVERSE RATES (ALL AXES): 1000 IPM SPINDLE NOSE: ISO N.T. 50 MAIN MOTOR DRIVE: DC 20HP SPINDLE SPEED RANGE:-STANDARD: 14-2000 RPM -HIGH: 22-3150 RPM SPINDLE SPEED SELECTION: DIRECT RPM PROGRAMMING WITH 4 DIGIT S WORDS (IN TWO GEAR-SELECTED RANGES) TYPE OF TOOL CHANGE ARM: DOUBLE-ENDED ARM DRIVE SYSTEM: HYD. OPERATED TOOL CHANGING TIME: 6 SECONDS NUMBER OF STATIONS: 30 MAX TOOL DIAMETER: 9.4" MAX TOOL WEIGHT: 44.1 LBS MAX TOOL LENGTH: 17.7" MACHINE DIMS: 141"L, X 146"W, X 130"H APPOX. WEIGHT: 35,000 LBS
