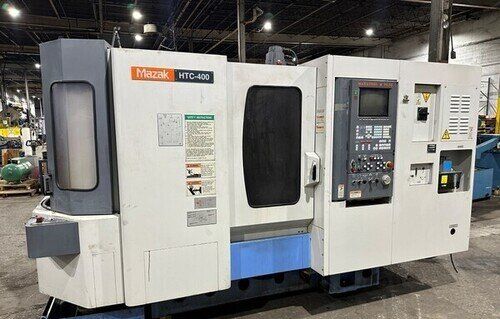

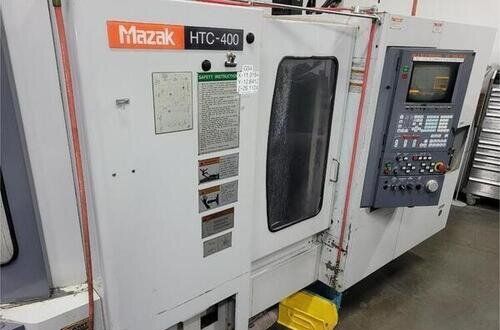

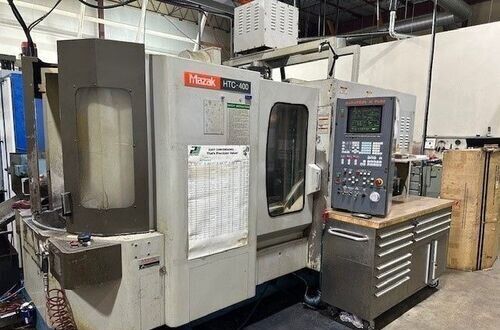

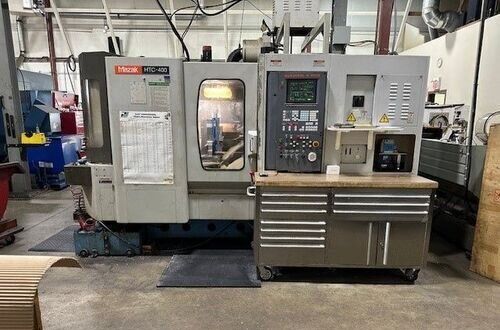

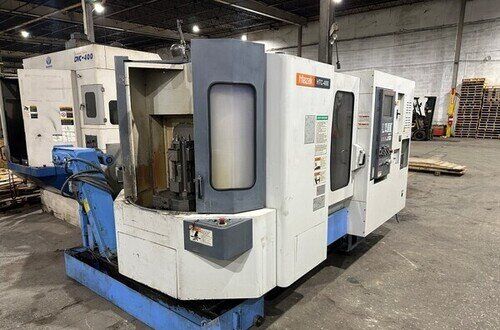

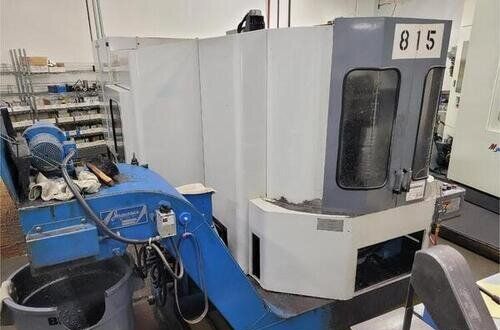

Mazak HTC-400 Horizontal Machining Center

Specifications

ModelHTC-400
BrandMAZAK
TypeHorizontal Machining Centers
ControlCNC (MAZATROL M-PLUS)
X22 inch
Y20 inch
Z20 inch
Power15 HP
RPM10,000 RPM
ATC24
PalletW15.7 inch
PalletL15.7 inch
TaperCAT-40
Axis3
Dimensions140inch X 86inch X 89inch
Weight15,000 Lbs
Length140 inch
Width86 inch
Height89 inch
catalogid670
mfgMAZAK
mpnHTC-400
titleMazak HTC-400 Horizontal Machining Center

Zero? Available Machines

Available Machine # Ez13002

  • Stock#:Ez13002
  • Price:$15,000
  • Year:1997
  • Region:Midwest
  • Condition:Used

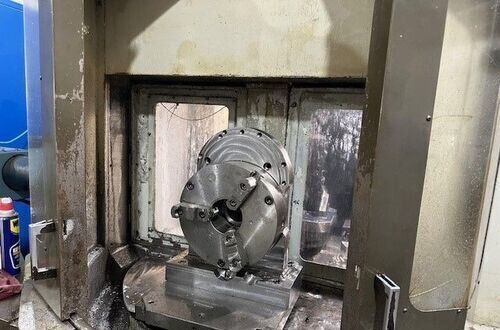

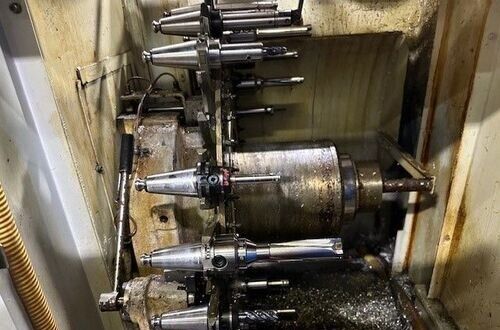

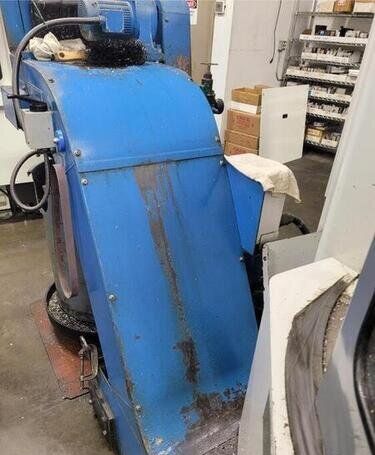

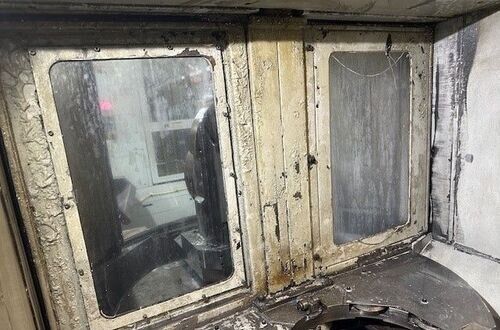

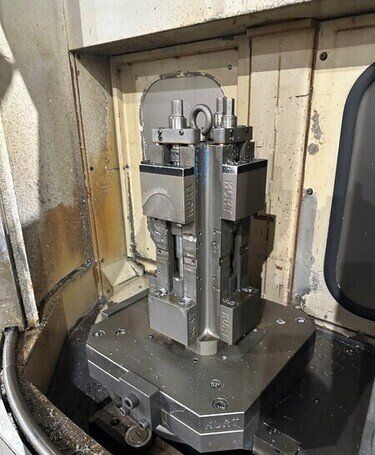

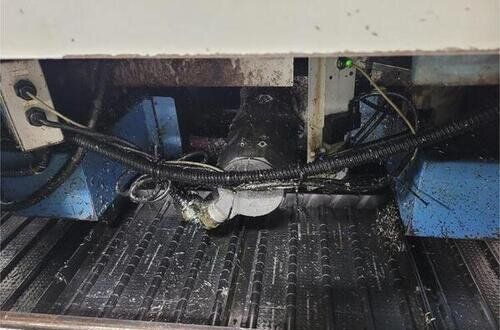

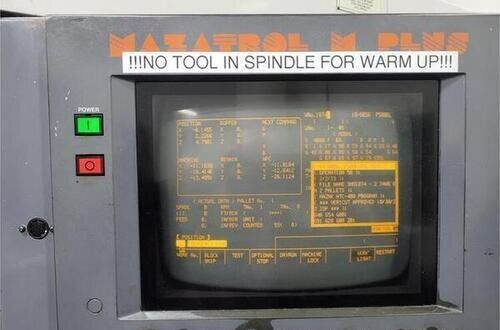

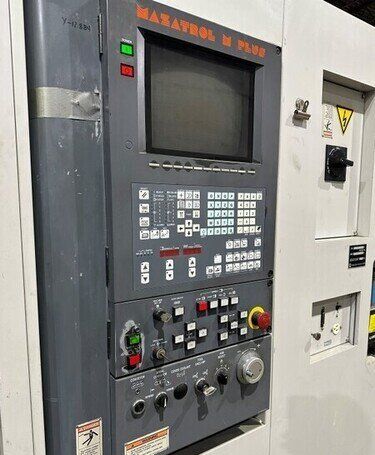

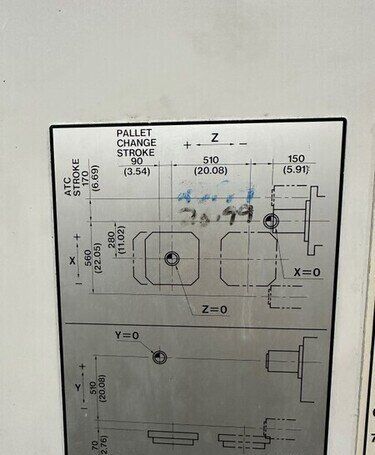

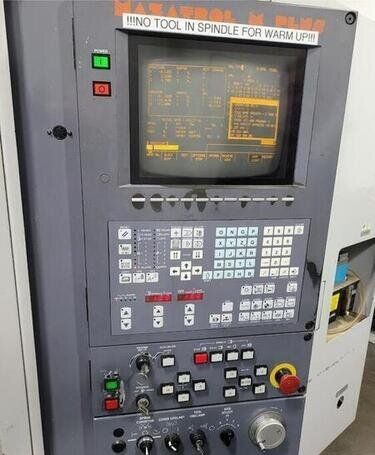

Travel: X-axis 22.05" Y-axis 20.08" Z-axis 20.08" Distance from table top to spindle center 2.75" - 22.83" Distance from table center line to spindle nose 5.0"-25.98" Table pallet size 15.74" x 15.74" Max. table load 660 lbs Table indexing 15 Deg Table indexing time 2.5 sec./90 deg. Pallet changing cycle time 6.3 sec.(440 lbs.) Spindle speeds 35-10,000 Spindle taper No. 40 Rapid traverse rate 30,000 mm/min (1180 IPM) Tool shank configuration CAT 40 Tool magazine capacity 24 Tools Max. tool length 14.96" Max. tool weight 17.6 lbs. Overall dimensions: 140" L x 86" D x 89" High Weight ( est. ) 14,770 Lbs. Motor Specifications Spindle drive motor(10 min/30 min) 15HP/10HP A/C Equipped With Mazatrol M Plus conversational CNC controls (2) 16" pallets with pallet changer 24 Position ATC Splash guards Coolant thru spindle Chip conveyor
