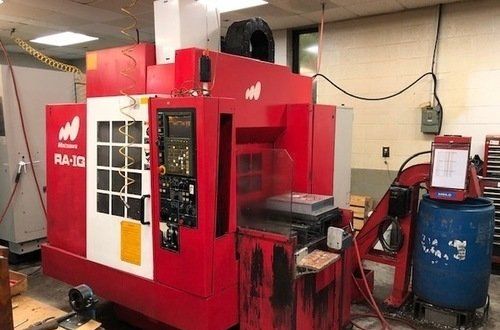

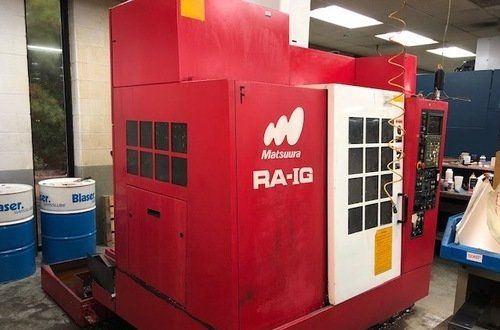

Matsuura RA-1G Vertical Machining Center

Specifications

ModelRA-1G
BrandMatsuura
TypeVertical Machining Centers
ControlYasnac CNC Control
ATC30
Taper40
RPM15,000 RPM
X22 inch
Y16.4 inch
Z18.4 inch
TableW24 inch
TableL15.2 inch
Length154"
Width131"
Height107"
Weight8800 lbs.
Axis3
Power10 HP
catalogid4177
mfgMatsuura
mpnRA-1G
titleMatsuura RA-1G Vertical Machining Center

Zero? Available Machines

Available Machine # Ez15067

  • Stock#:Ez15067
  • Price:Call
  • Year:1997
  • Region:South
  • Condition:Used

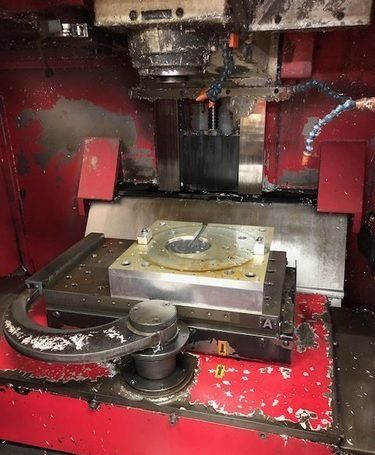

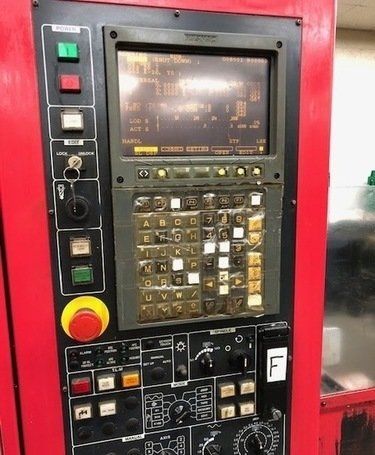

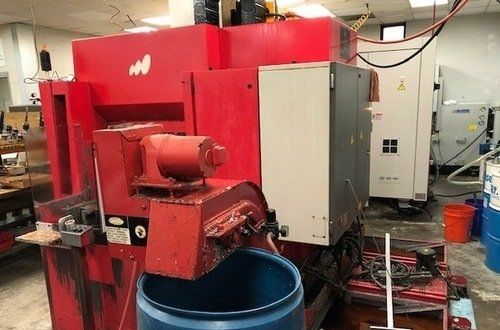

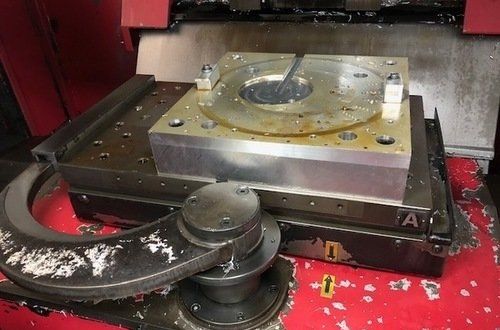

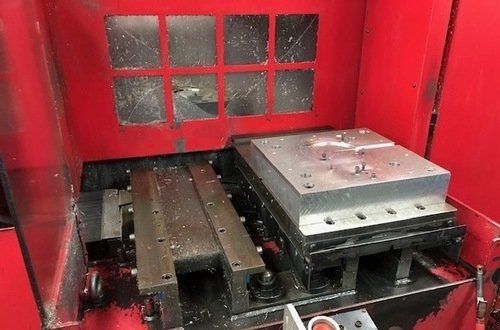

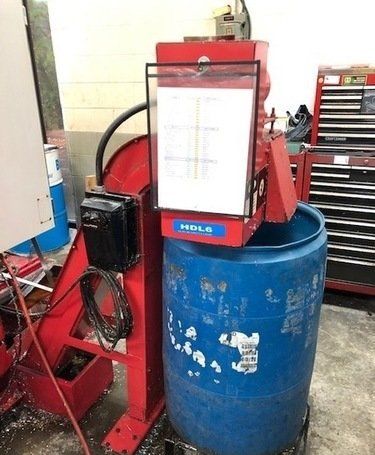

Travel: X-Axis 21.65" Y-Axis 16.10" Z-Axis 18.10" Table Size 23.6" x 14.9" (2) Spindle Speed 15000 RPM Spindle Taper BT 40 Spindle Nose to Table Top 5.9" - 24" Spindle Motor 10 HP Tools 30 Table Load Capacity 550 lbs. Rapid Traverse Rates (X & Y / Z) 1181 / 945 IPM Tool Change Time (T- T / C - C) 2 / 5 Seconds Max Tool Diameter 5.9" Max Tool Length 11.8" Max Tool Weight 17.6 lbs. Machine Dimensions (L x W x H) 154" x 131" x 107" Machine Weight 8800 lbs. FEATURES: YASNAC J300 CNC CONTROL 9" Monochrome CRT Graphic Display Auto Two Pallet Changer 30 Position Side Mount Tool Changer 15,000 RPM Spindle Speed Rigid Tapping Spindle Chiller Unit Turbo Chip Conveyor (Left Front Exit) Manufacture Date November 1997


Available Machine # Ez11923

  • Stock#:Ez11923
  • Price:$22,500
  • Year:1998
  • Region:Midwest
  • Condition:Used
Specification: Table Size 24" x 15.2" X-Axis Travel 22" Y-Axis Travel 16.4" Z-Axis Travel 18.4" Spindle RPM 15,000 RPM Tool Positions 30 ATC Spindle Taper 40 Equipped With: Yasnac CNC Control Dual Pallet Changer
