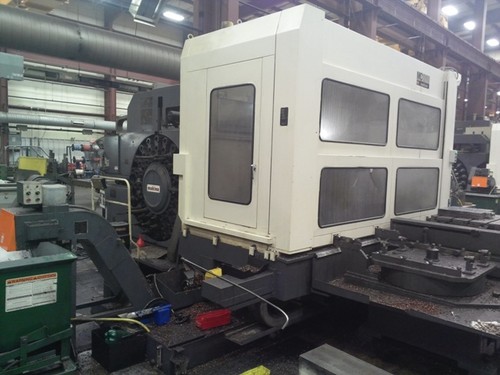

Makino MCB-1210 Horizontal Machining Center

Specifications

ModelMCB-1210
BrandMAKINO
TypeHorizontal Machining Centers
ControlCNC (Fanuc 11M)
X49.2 inch
Y41.3 inch
Z31.9 inch
Power35 hp
RPM4000 RPM
ATC60
PalletW31.5 inch
PalletL31.5 inch
TaperCat 50
Dimensions253 x 190 x 132
Weight51,800 lbs.
Length253"
Width190"
Height132"
catalogid868
mfgMAKINO
mpnMCB-1210
titleMakino MCB-1210 Horizontal Machining Center

Zero? Available Machines

Available Machine # Ez19433

  • Stock#:Ez19433
  • Price:$24,500
  • Year:1985
  • Region:South
  • Condition:Used
1985 MAKINO MCB-1210 Pallet Size 31.5" (2) Travel: X-Axis 49.2" Y-Axis 41.3" Z-Axis 31.9" Pallet Index 1 Degree Spindle Speed 10 - 4000 RPM Spindle Taper Cat 50 Spindle Motor 35 HP Spindle Torque 597 ft. lbs. Spindle Center to Table Top 2.95" - 44.3" Tools 60 Rapid Traverse Rates (X, Y & Z) 787 IPM Pallet Load Capacity 6600 lbs. Max Tool Diameter 5.9" / 11.8" Max Tool Length 19.7" Max Tool Weight 66 lbs. Machine Dimensions (L x W x H) 253" x 190" x 132" Machine Weight 51,800 lbs. FEATURES: FANUC 11M CNC CONTROL 14" Color CRT Coolant Thru Tool Chip Conveyor (Left Side Exit) Remote Manual Pulse Generator Heavy Duty Box Way Construction


Available Machine # Ez19547

  • Stock#:Ez19547
  • Price:Call
  • Year:1996
  • Region:Midwest
  • Condition:Used
