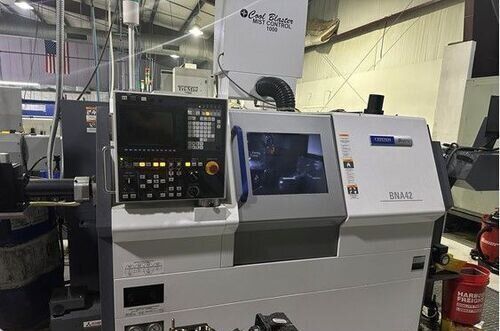

MIYANO BNA-42MSY FIXED HEADSTOCK AUTOMATIC CNC LATHE

Specifications

BrandMIYANO
ModelBNA-42MSY
Type5-Axis or More CNC Lathes
Lower17
Axis5
BarCapacity1.654 inch
Power14.8 hp
Upper37
MaxRPM6000 rpm
MachiningLength3.937 inch
ControlMITSUBISHI M70V CNC
Weight6,000 LBS
catalogid4116
mfgMIYANO
mpnBNA-42MSY
titleMIYANO BNA-42MSY FIXED HEADSTOCK AUTOMATIC CNC LATHE

Zero? Available Machines

Available Machine # Ez11786

  • Stock#:Ez11786
  • Price:Call
  • Year:2012
  • Region:Northeast
  • Condition:Used

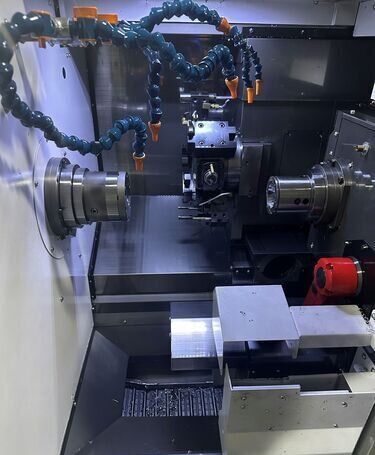

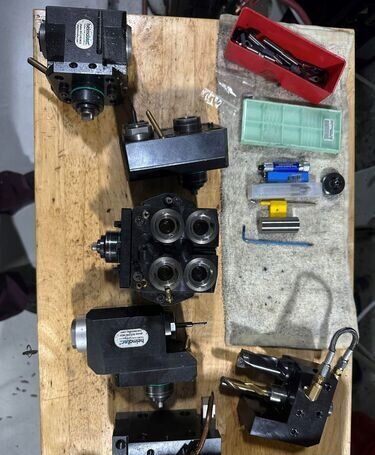

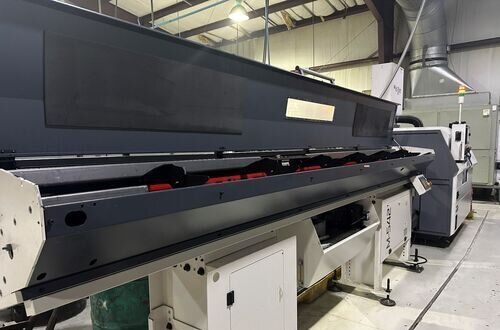

MIYANO BNA-42MSY FIXED HEADSTOCK AUTOMATIC CNC LATHE WITH LIVE TOOLING, SUB-SPINDLE, Y-AXIS, C-AXIS & MITSUBISHI M70V CONTROL, 42 MM BAR. MITSUBISHI M70V CNC CONTROL COLLET CHUCK SYSTEM SPINDLE BRAKE AIR BLOW WORK PIECE EJECTOR PARTS CATCHER PARTS CONVEYOR CHIP CONVEYOR SP2 INNER COOLANT & AIR BLOW MIYANO MIY-M542 12’ AUTOMATIC MAGAZINE BARFEED, S/N M2201426064 (2) RADIAL DRILLING & MILLING HEADS (1) AXIAL DRILLING & MILLING HEAD (1) MULTI-SPINDLE DRILLING HEAD (1) MULTI-SPINDLE RADIAL DRILLING HEAD (3) ER16 COLLET CHUCK INSERTS (1) UNIVERSAL 1/2″ ARBOR INSERT
