Lodge & Shipley PFT40 40" X 168" Big CNC Lathe

Specifications

ModelPFT40
BrandLodge & Shipley
TypeCNC Lathes
ControlFanuc 18TB CNC Control
Weight22,000 Lbs.
Length24'
Width7'
Height87"
Power40.23 HP
ChuckSize24"
MaxRPM650 RPM
Swing40"
TurningDia14"
catalogid4799
mfgLodge & Shipley
mpnPFT40
titleLodge & Shipley PFT40 40" X 168" Big CNC Lathe

Zero? Available Machines

Available Machine # Ez14423

  • Stock#:Ez14423
  • Price:$59,500
  • Year:1997
  • Region:Northeast
  • Condition:Used

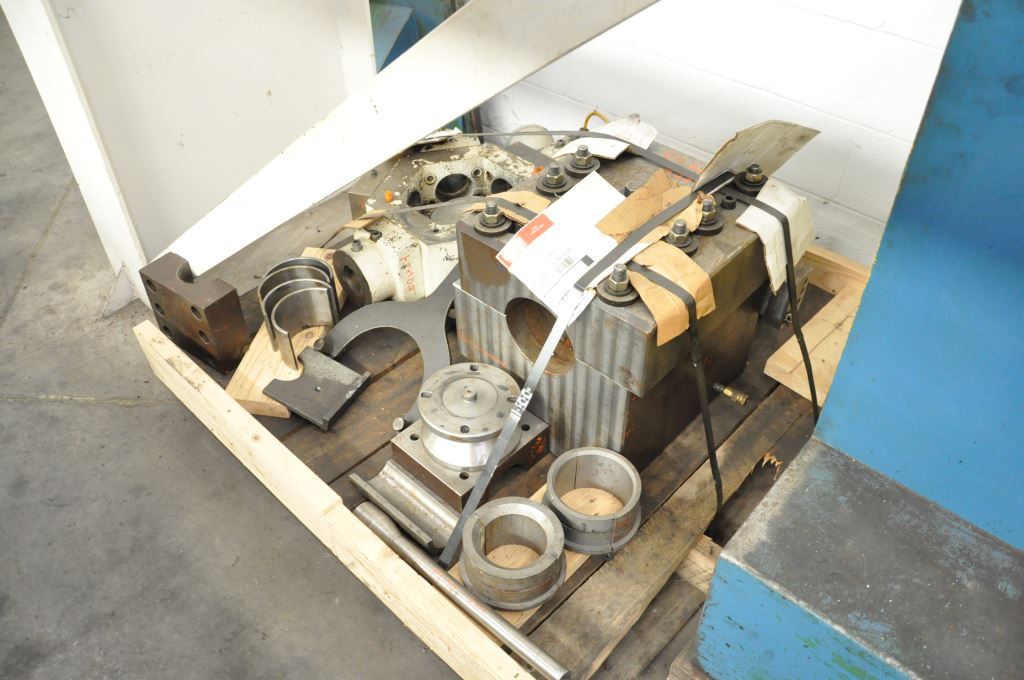

Machine was Retrofit in 1998 with Fanuc 18TB CNC Control Swing Over Ways: 40" Swing Over Cross Slide: 23" 12-1/2" Diameter Spindle Bore Spindle Speeds 25 to 650 RPM in (3) Geared Ranges RPM Maximums By Ranges: 146 Low, 282 Medium, 650 High Feed Range: 0 to 9.999Inches PerMinute Via Fanuc Servo Drive Interchangeable Turrets on Cross Slide: (1) 12-1/2" Square Turret, (1) 6-Position Turret & (1) Large Boring Bar Holder for a 6" Diameter Boring Bar Tailstock with 6" Diameter Quill, Hydraulic Travel to Quill Tailstock is Towed/Pushed by Carriage, Live Bearings in Quill for Interchangeable Tools Bolted to End of Quill Ball Screw Driven Carriage & Cross Slide (2) 24" Diameter Manual 4-Jaw Chucks with Hard Reversible Top Jaws Full Length Jorgensen Chip Conveyor with Coolant Pump 14" Diameter Roller Steady Rest 2-Position Roller Support Rest Spare Ball Screw for Carriage Travel Chip/Splash Guards 30 KW Spindle Drive Motor, 3/60/230V 1 HP Hydraulic Pump Motor, 3/60/208-230-460V 75 KVA Transformer to Run the Machine on 440V Overall Machine Assembled to Run: 31' L x 10' W x 90" H Shipping Dimensions: Main Machine: 24' L x 7' W x 87" H x Approx. 22,000 Lbs. Chip Conveyor & Coolant System: 25' L x 40" W x 68" H Electrical Cabinet: 6' L x 22" W x 90" H Operator Control Console: 22" x 32" x 67" H Main Motor on Mounting Base: 3' x 3' x 3' Transformer: 28" x 23" x 30" H Misc. Guarding: 10' x 6' W x 44" H Misc. Guarding: 6' x 6' x 3' 
