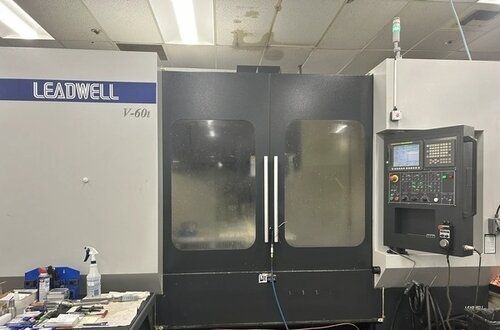

Leadwell V-60I Vertical Machining Centers

Specifications

BrandLEADWELL
ModelV-60I
TypeVertical Machining Centers
ControlCNC (Fanuc 0iMD)
Lower48
X60 inch
Y30 inch
Z28 inch
Power20 HP
RPM8000 RPM
Upper68
ATC30
TableW29.5 inch
TableL61 inch
Axis3
Length182 inch
Width125.5 inch
Height130 inch
Weight23100 lbs
TaperCT #40
catalogid3446
mfgLEADWELL
mpnV-60I
titleLeadwell V-60I Vertical Machining Centers

Zero? Available Machines

Available Machine # Ez11691

  • Stock#:Ez11691
  • Price:Call
  • Year:2013
  • Region:Midwest
  • Condition:Used
X-Axis Travel 59.8" Y-Axis Travel 30" Z-Axis Travel 28.3" Distance from spindle nose to table 4.8" - 33.1" Distance from spindle nose to column surface 30" Table size 61" x 29.5" Max. table load 2,640 lbs Spindle speed 15,000 RPM Spindle taper CT# 40 Spindle motor 35 HP Rapid traverse X/Y/Z 945/787.4 IPM Machine weight 23,100 lbs Machine dimensions 182" x 125.5" x 130" Equipped With: Fanuc Oi-MD 300 PSI coolant thru spindle Coolant system Rigid tapping Spindle internal air blow system Centralize lubrication system Inside screw type chip conveyor Auto counter for work piece T-slot table Heat exchange RS 232 interface Big coolant tank Spindle chiller Renishaw auto tool length measurement Remote MPG Lift up chip conveyor Data server w/ ethernet Oil Skimmer
