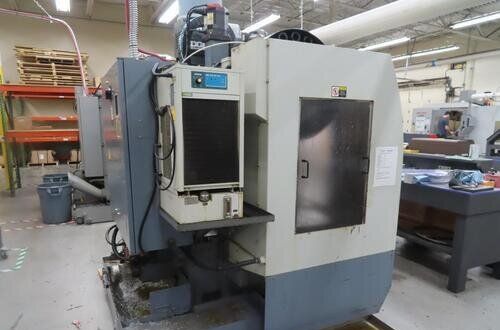

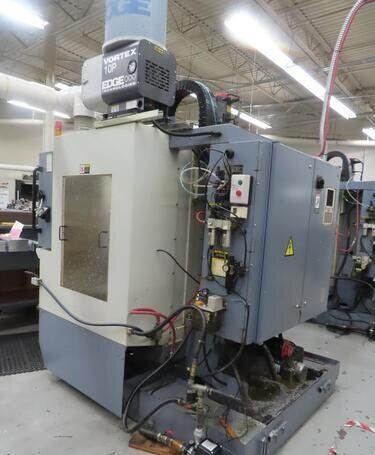

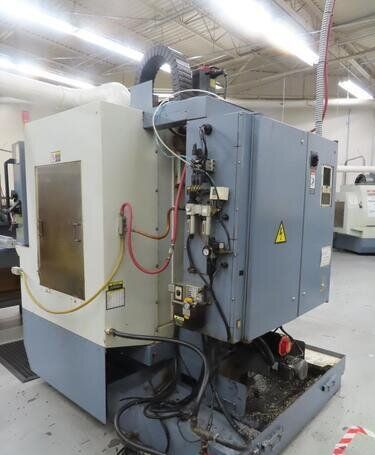

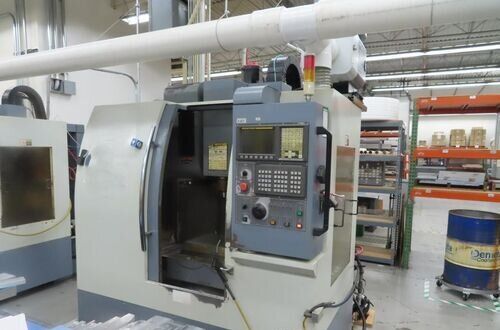

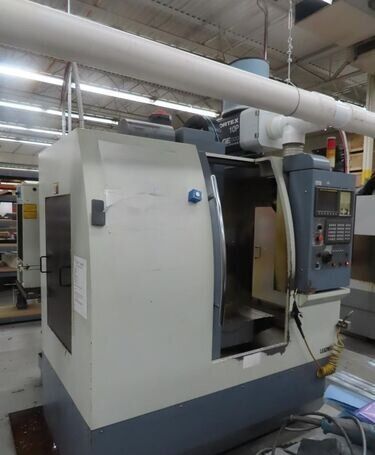

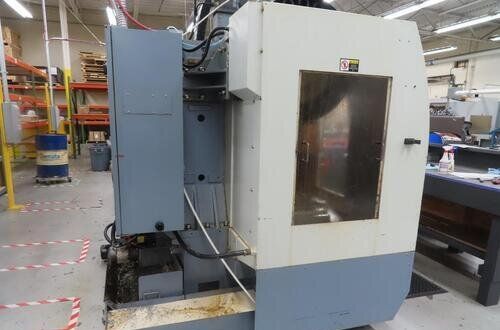

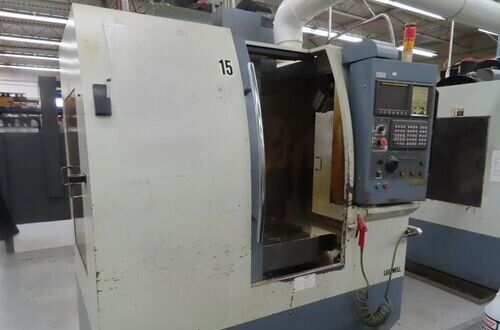

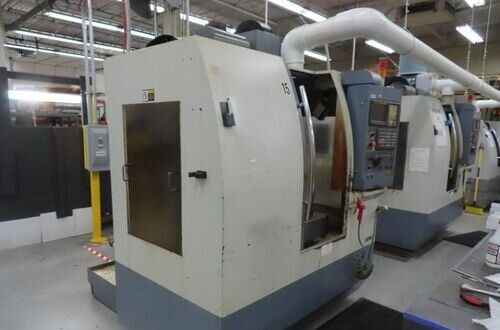

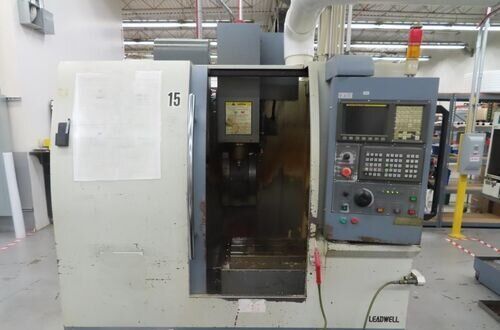

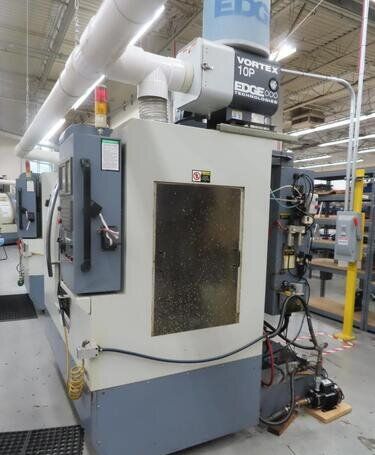

Leadwell V-20 Vertical Machining Centers

Specifications

BrandLEADWELL

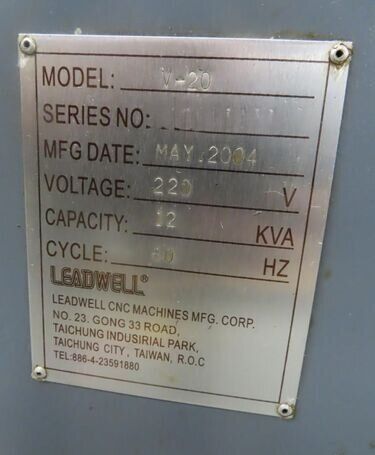

ModelV-20
TypeVertical Machining Centers

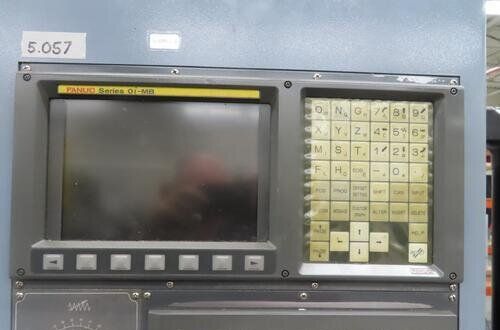

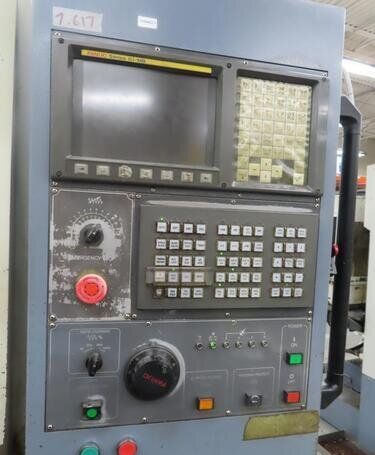

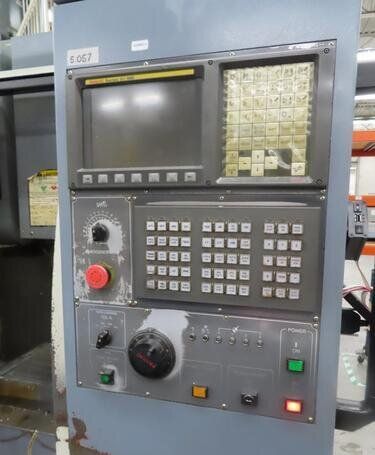

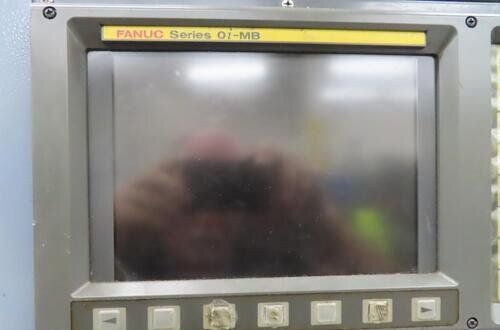

ControlCNC (Fanuc 0iMB)
Lower1
X20 inch
Y16 inch
Z20 inch
Power15 hp
RPM12000 rpm
ATC20
Upper21

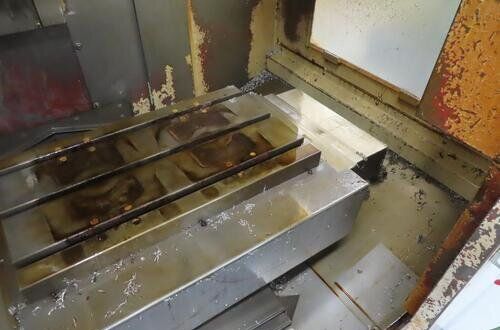

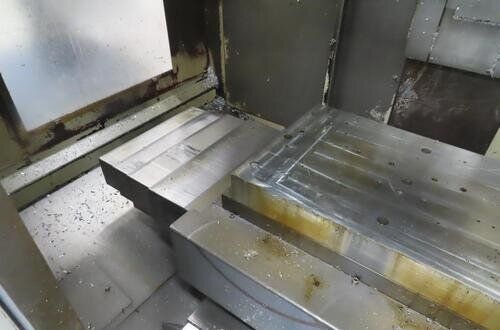

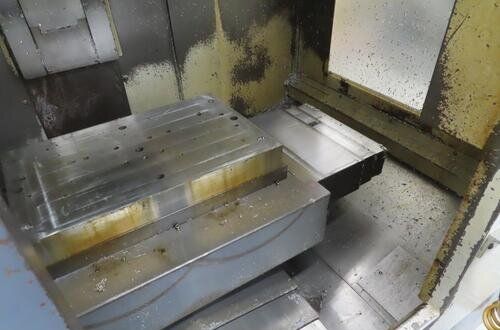

TableW23.6 inch
TableL13.8 inch
Dimensions67inch x 112inch x 94inch
Weight7,000 Lbs
sellerspecBRNLTravels: BRNLX-Axis 20” BRNLY-Axis 15.75” BRNLZ-Axis 15.75” BRNLTable Size 23.6” x 13.8” BRNLMax. Table Load 440 lbs BRNLSpindle Speed 8,000 RPM BRNLSpindle Taper 40 Taper BRNLSpindle Motor 7.5 HP BRNLTool Changer 16 BRNLMax. Tool Diameter 3.2” BRNLMax. Tool Length 7.9” BRNLTool Change Time 10 sec BRNLChip-to-Chip Time 6 sec BRNLRapid Traverse Rate 945 IPM BRNLCutting Feed Rate 394 IPM Equipped With: BRNLFanuc Series OMD Control BRNLMemory: 320M Voltage: 220V
catalogid3617
mfgLEADWELL
mpnV-20
titleLeadwell V-20 Vertical Machining Centers
