- Stock#:Ez48690
- Price:$159,500
- Year:N/A
- Region:Northeast
- Condition:Used
| Rebuilt and Retrofit: 2012

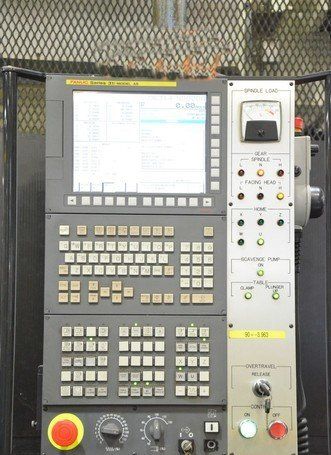

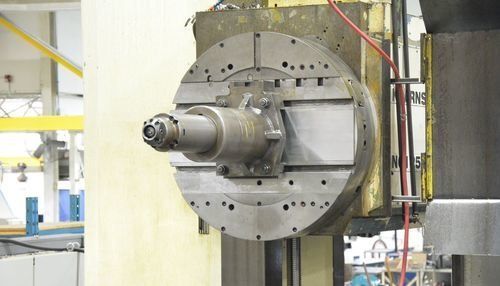

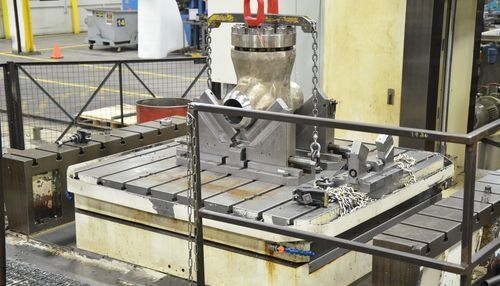

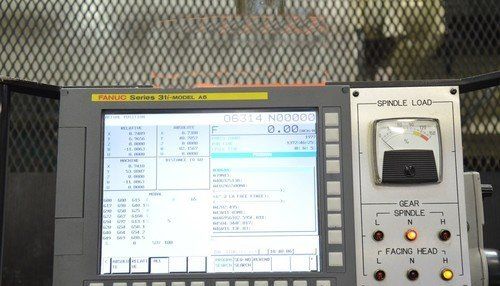

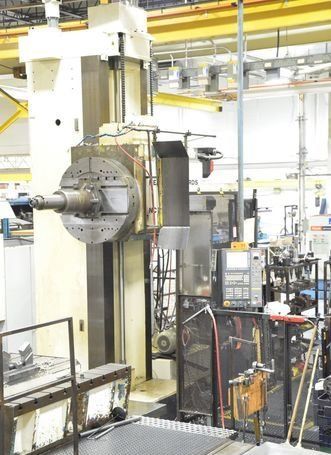

Spindle Diameter: 4.92" Table Size: 60" x 60" Travels: X: 90.98" Y: 71.20" (Vertical) Z: 28" (Quill) W: 58.70" (Saddle) U: 7.60" (Facing Head) Spindle Taper: #50 Spindle Speeds: Max. Speed Low Gear: 182 RPM Max. Speed High Gear: 1230 RPM Facing Head Speeds: Max. Speed Low Gear: 37 RPM Max. Speed High Gear: 247 RPM EQUIPPED WITH: 2012 Retrofit with Fanuc 31i-Model A5 5-Axis CNC Control M-Code Features (Including But Not Limited To): Flood Coolant Coolant Thru Spindle Spindle Orientation Stop, Reset, Rewind Facing Head Orientation: 0, 90, 180, 270 Degrees Table Indexing: 90, 180, 270, 360 Degrees (Incremental) Mirror Image: X, Y, Z (4) Table Outriggers Hydraulic System and Chiller Control Cabinet Steel Way Covers Manuals for the following Machine Up Grades: Electrical Schematic PMC Program Safety Unit CNC Parameter List Subroutines M Codes List General Documentation Mechanical Schematics Kearns & Richard Parts List
|
